- 800 SKS 146 SC SELECT ALL OPTIONS (R01) - S20ELS8PS
SUSPENSION, CONTROL ARMS, SPINDLE, AND SHOCK MNTG. - S20ELS8PS ALL OPTIONS (600025)

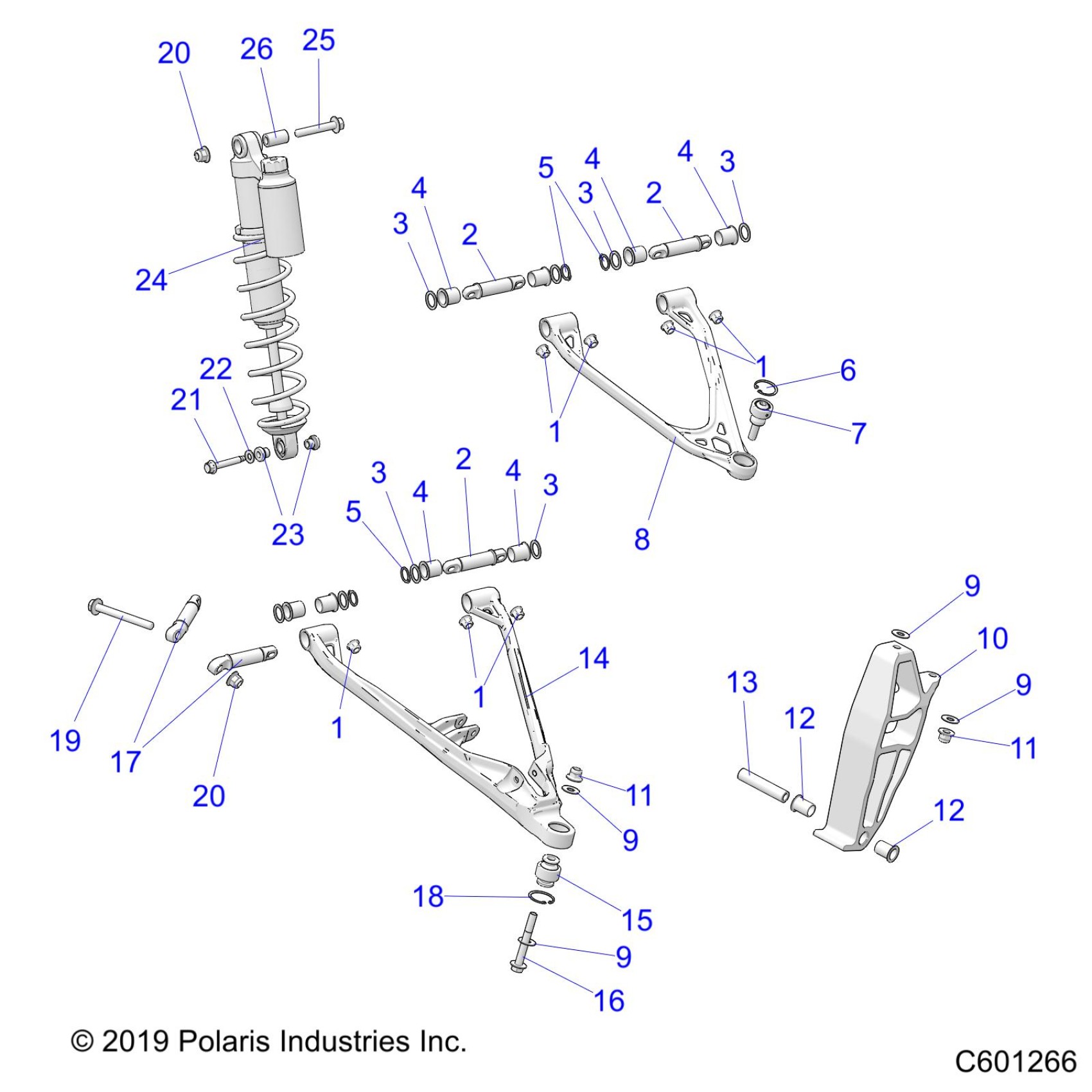

Polaris 800 SKS 146 SC SELECT ALL OPTIONS (R01) - S20ELS8PS SUSPENSION, CONTROL ARMS, SPINDLE, AND SHOCK MNTG. - S20ELS8PS ALL OPTIONS (600025) Diagram
#
1
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
1
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
1
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
1
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
2
SHAFT-PIVOT GROOVED
5140556
$34.99
2
SHAFT-PIVOT GROOVED
5140556
$34.99
2
SHAFT-PIVOT GROOVED
5140556
$34.99
3
WASHER
7556959
$1.49
3
WASHER
7556959
$1.49
3
WASHER
7556959
$1.49
3
WASHER
7556959
$1.49
3
WASHER
7556959
$1.49
4
BUSHING-PIVOT SHORT
5454428
$3.99
4
BUSHING-PIVOT SHORT
5454428
$3.99
4
BUSHING-PIVOT SHORT
5454428
$3.99
4
BUSHING-PIVOT SHORT
5454428
$3.99
4
BUSHING-PIVOT SHORT
5454428
$3.99
5
RING-RETAINING,18MM ID
7710786
$1.60
5
RING-RETAINING,18MM ID
7710786
$1.60
6
RING-RET INT 1.125"
7710642
$2.39
7
BALL JOINT-M10X1.25X31 30 DEG
7061219
$69.99
8
ASM-UPPER CONTROL ARM, LH, NATURAL [INCL. 2-7][SNOW CHECK OPT.]
1824894-309
$224.99
8
ASM-UPPER CONTROL ARM, RH, NATURAL [INCL. 2-7][SNOW CHECK OPT.]
1824895-309
Unavailable
8
ASM-UCA LH GLBLK [INCL. 2-7][SNOW CHECK OPT.]
1824894-067
$229.99
8
ASM-UCA RH GLBLK [INCL. 2-7][SNOW CHECK OPT.]
1824895-067
$160.79
9
WASHER
7556545
$3.19
9
WASHER
7556545
$3.19
9
WASHER
7556545
$3.19
9
WASHER
7556545
$3.19
10
ASM., SPINDLE, LH, RMK [INCL. 12][SNOW CHECK OPT.]
1824040
$224.99
10
ASM., SPINDLE, RH, RMK [INCL. 12][SNOW CHECK OPT.]
1824041
$224.99
10
ASM., SPINDLE, LH, RMK, WHITE [INCL. 12][SNOW CHECK OPT.]
1824040-133
$259.99
10
ASM., SPINDLE, RH, RMK, WHITE [INCL. 12][SNOW CHECK OPT.]
1824041-133
$259.99
10
ASM., SPINDLE, LH, RMK, INDY RED [INCL. 12][SNOW CHECK OPT.]
1824040-293
$259.99
10
ASM., SPINDLE, RH, RMK, INDY RED [INCL. 12][SNOW CHECK OPT.]
1824041-293
$259.99
10
ASM., SPINDLE, LH, RMK, GLOSS BLACK [INCL. 12][SNOW CHECK OPT.]
1824040-067
$259.99
10
ASM., SPINDLE, RH, RMK, GLOSS BLACK [INCL. 12][SNOW CHECK OPT.]
1824041-067
$259.99
10
ASM., SPINDLE, LH, RMK, IND SKY BLUE [INCL. 12][SNOW CHECK OPT.]
1824040-737
$259.99
10
ASM., SPINDLE, RH, RMK, IND SKY BLU [INCL. 12][SNOW CHECK OPT.]
1824041-737
$259.99
10
ASM., SPINDLE, LH, RMK, ORNG BURST [INCL. 12][SNOW CHECK OPT.]
1824040-647
$259.99
10
ASM., SPINDLE, RH, RMK, ORNG BURST [INCL. 12][SNOW CHECK OPT.]
1824041-647
$259.99
10
ASM., SPINDLE, LH, RMK, LIME SQUEEZE [INCL. 12][SNOW CHECK OPT.]
1824040-630
$259.99
10
ASM., SPINDLE, RH, RMK, LIME SQUEEZE [INCL. 12][SNOW CHECK OPT.]
1824041-630
$259.99
11
NUT-HXFL M10X1.25 8 ZTB NYL
7547333
$1.59
11
NUT-HXFL M10X1.25 8 ZTB NYL
7547333
$1.59
12
BUSHING-SKI PIVOT
5438460
$15.99
12
BUSHING-SKI PIVOT
5438460
$15.99
13
BUSHING-15.88X10.13X76.20
5136910
$7.99
14
ASM-LOWER CONTROL ARM, LH, NATURAL [INCL. 2-6,15,18][SNOW CHECK OPT.]
1824892-309
$289.99
14
ASM-LOWER CONTROL ARM, RH, NATURAL [INCL. 2-6,15,18][SNOW CHECK OPT.]
1824893-309
$289.99
14
ASM-LCA LH GLBLK [INCL. 2-6,15,18][SNOW CHECK OPT.]
1824892-067
$314.99
14
ASM-LCA RH GLBLK [INCL. 2-6,15,18][SNOW CHECK OPT.]
1824893-067
$314.99
15
KIT-BEARING SPHERICAL LWR 10MM
2204229
$31.99
16
SCR-HXFL-M10X1.25X75 10.9 ZOD
7519286
$7.19
17
SHAFT-PIVOT LCA FRT GROOVED
5140557
$34.99
18
RING, RETAINING
7710539
$2.39
19
SCR-M10X1.5X95 HX FLG 10.9 ZOD
7518917
$4.79
20
NUT-M10X1.5 HFN NYLOC ZOD
7547423
$3.99
20
NUT-M10X1.5 HFN NYLOC ZOD
7547423
$3.99
21
SCR-HXFL-M8X1.25X50 DP ZODP30
7519245
$3.99
22
WASHER
7556524
$1.49
23
SPACER, ALUM.
5138124
$4.79
24
SHOCK, IFS [SEE SHOCK, IFS PAGE]
-------
Unavailable
25
SCR-M10X1.5X60-8.8 HFS ZOD
7518941
$3.99
26
BUSHING-M10X17.5X30
5137360
$3.99
