- 800 RUSH PRO-S ALL OPTIONS (R02) - S16DP8
SUSPENSION, SHOCK, FRONT TRACK, LTD (7044382) - S16DP8 ALL OPTIONS (600176)

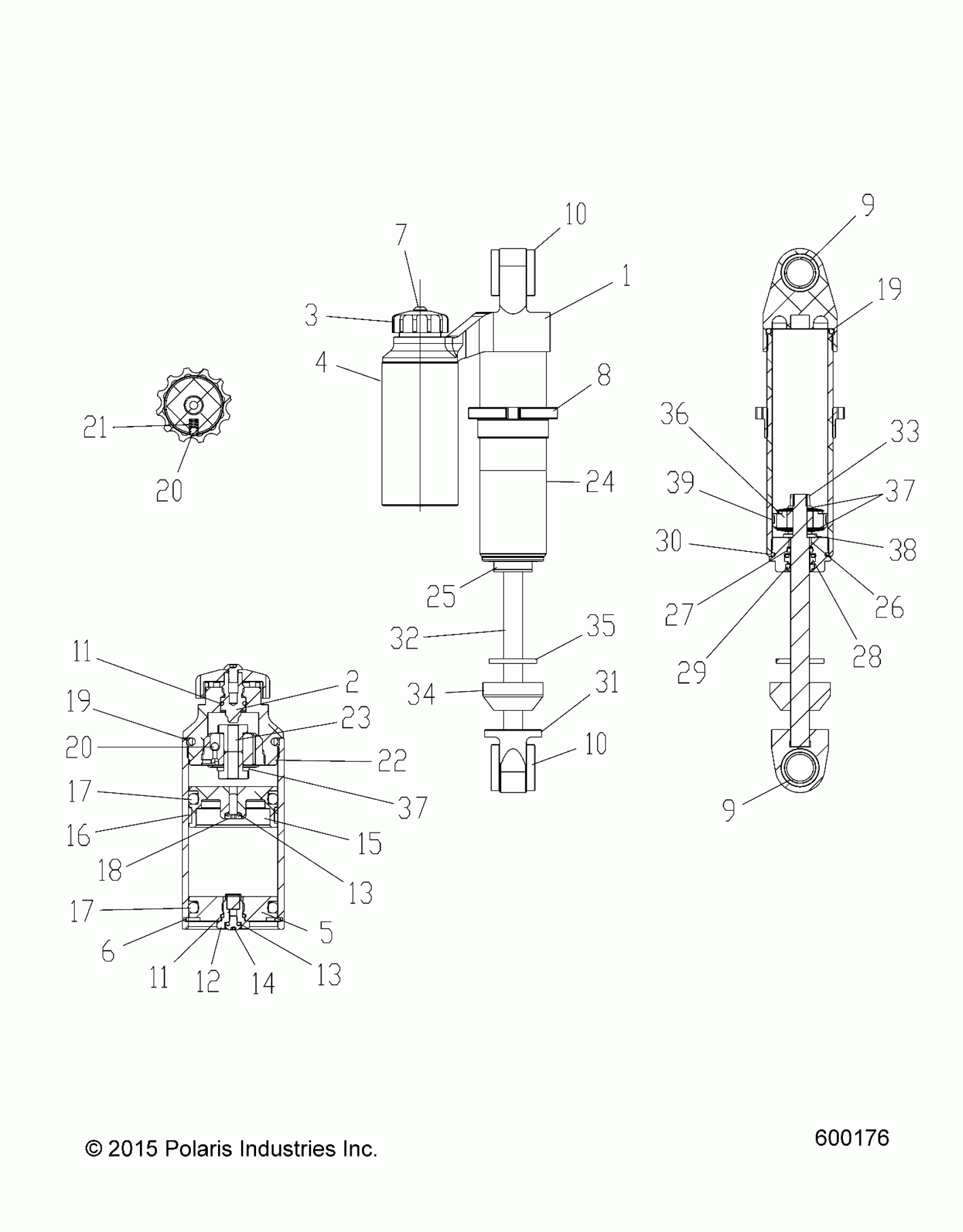

Polaris 800 RUSH PRO-S ALL OPTIONS (R02) - S16DP8 SUSPENSION, SHOCK, FRONT TRACK, LTD (7044382) - S16DP8 ALL OPTIONS (600176) Diagram
#
-
SHOCK, FT
7044382
$769.99
1
LOOP, PIGGY BACK 65DEG
1800646
$214.99
2
STUD, CLICKER
1800352
$31.99
3
KNOB, CLICKER
1800460
$97.13
4
BODY, RES, 2IN, CLEAR
1800523
$121.02
5
END CAP, RES 2IN, BLK
1800420
$36.41
6
RING, SNAP
1800159
$5.59
7
SCREW, 10X5/8 BTN SS
1800357
$3.19
8
SPRING RETAINER
1800046
$36.41
9
SLEEVE, 1.15L
1800405
$28.32
9
SLEEVE, 1.15L
1800405
$28.32
10
BUSHING
1800406
$5.65
10
BUSHING
1800406
$5.65
11
O-RING
1800501
$6.39
11
O-RING
1800501
$6.39
12
NEEDLE VALVE
1800329
$39.99
13
O-RING, BLEED SCREW
1800210
$1.59
13
O-RING, BLEED SCREW
1800210
$1.59
14
SCREW, BUTTON HEAD, 8/32
1800109
$3.19
15
PISTON, RES., 2 IN.
1800355
$75.99
16
WEAR BAND, PISTON
1800185
$39.99
17
O-RING
1800184
$5.65
17
O-RING
1800184
$5.65
18
BLEED SCREW
1800043
$5.59
19
O-RING BODY LOOP
1800030
$2.02
19
O-RING BODY LOOP
1800030
$2.02
20
BALL, D-TENT
1800127
$6.39
20
BALL, D-TENT
1800127
$6.39
21
SPRING-COMP .025X.3, 40.5#
1800128
$10.39
22
PISTON
1800217
$56.65
23
SCREW
1800219
$11.19
24
BODY, FT, 5.96L, CLR
1800733
$121.41
25
SEAL HEAD, SHORT
1800545
$140.38
26
BUSHING, SHAFT
1800544
$23.99
27
O-RING
1800095
$1.49
28
SEAL, U-CUP
1800294
$24.27
29
SEAL, WIPER
1800295
$12.94
30
O-RING, BODY
1800027
$2.02
31
LOOP, SHAFT
1800408
$129.51
32
SHAFT, .50x6.605L
1800648
$116.17
33
NUT, CRIMP, 3/8
1800031
$3.99
34
BUMP STOP, 1.58x.73
1800649
$43.56
35
SCRAPER, 1.25x.125
1800650
$11.32
36
PISTON, CONVEX
1800001
$125.46
37
WASHER, 3/8 AN
1800050
$3.99
37
WASHER, 3/8 AN
1800050
$3.99
38
WASHER
1800204
$3.99
39
WEAR BAND, THIN
1800543
$44.99
