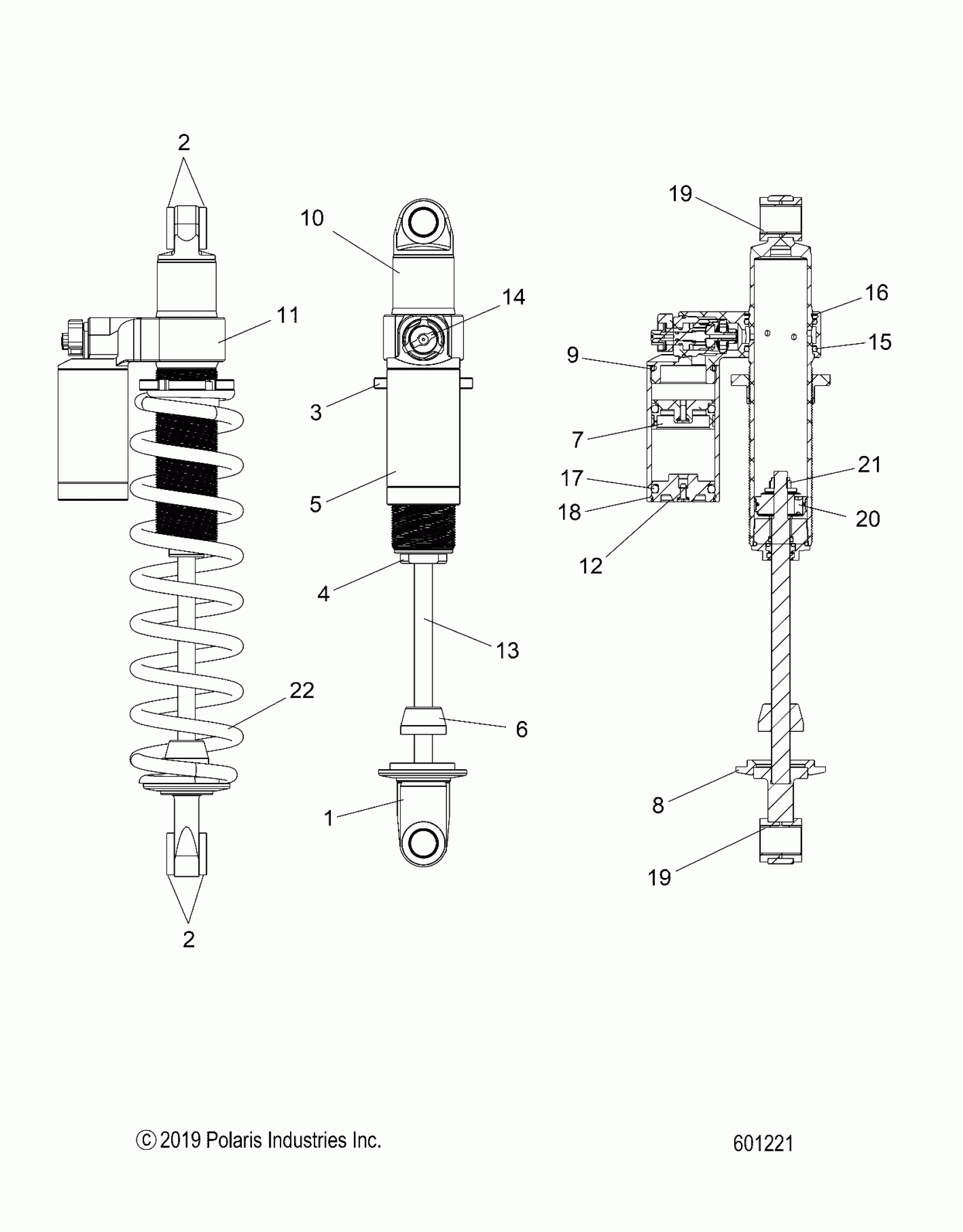

Polaris 800 RMK KHAOS 155/155 3" SC SELECT (R03) - S20EFT8PS/EFN8PS SUSPENSION, SHOCK, REAR TRACK - S20EFT8PS/EFN8PS (601221) Diagram

#

Description
Price

-

SHOCK-RTS W/E VELOCITY [INCL 1-21]

7045234

$914.99

1

LOOP, SHAFT .50"

1801078

$97.13

2

BUSHING

1800406

$5.65

2

BUSHING

1800406

$5.65

3

SPRING NUT, 1.75

1801064

$58.08

4

SEAL HEAD

1800403

$140.38

5

BODY, RESERVOIR

1800999

$119.99

6

BUMPER, JOUNCE

1800462

$32.37

7

PISTON-IFP

1800739

$44.99

8

SPRING CLIP

1800449

$60.70

9

O-RING BODY LOOP

1800030

$2.02

10

BODY-MID MNT 1.75

1801065

$254.99

11

BRIDGE-HI-LO 1.75

1801066

$314.99

12

ASM-END CAP, 2.0

1801006

$114.99

13

SHAFT

1800730

$154.99

14

ADJUSTER-HS-LS, V7

1801067

$459.99

15

O-RING BUNA 2-224

1801028

$4.84

16

RING-RETAINING 1.75 EXT.

1801061

$15.99

17

O-RING 2-324

1800184

$5.65

18

WIRE RING

1800795

$7.27

19

SLEEVE

1800405

$28.32

19

SLEEVE

1800405

$28.32

20

ASM-PISTON

1801068

$193.63

21

NUT, CRIMP

1800031

$3.99

22

SPRING-COMP

7044743-458

$84.99
