- 800 RMK KHAOS 155/155 3" SC SELECT (R03) - S20EFT8PS/EFN8PS
SUSPENSION, SHOCK, FRONT TRACK - S20EFT8PS/EFN8PS (601220)

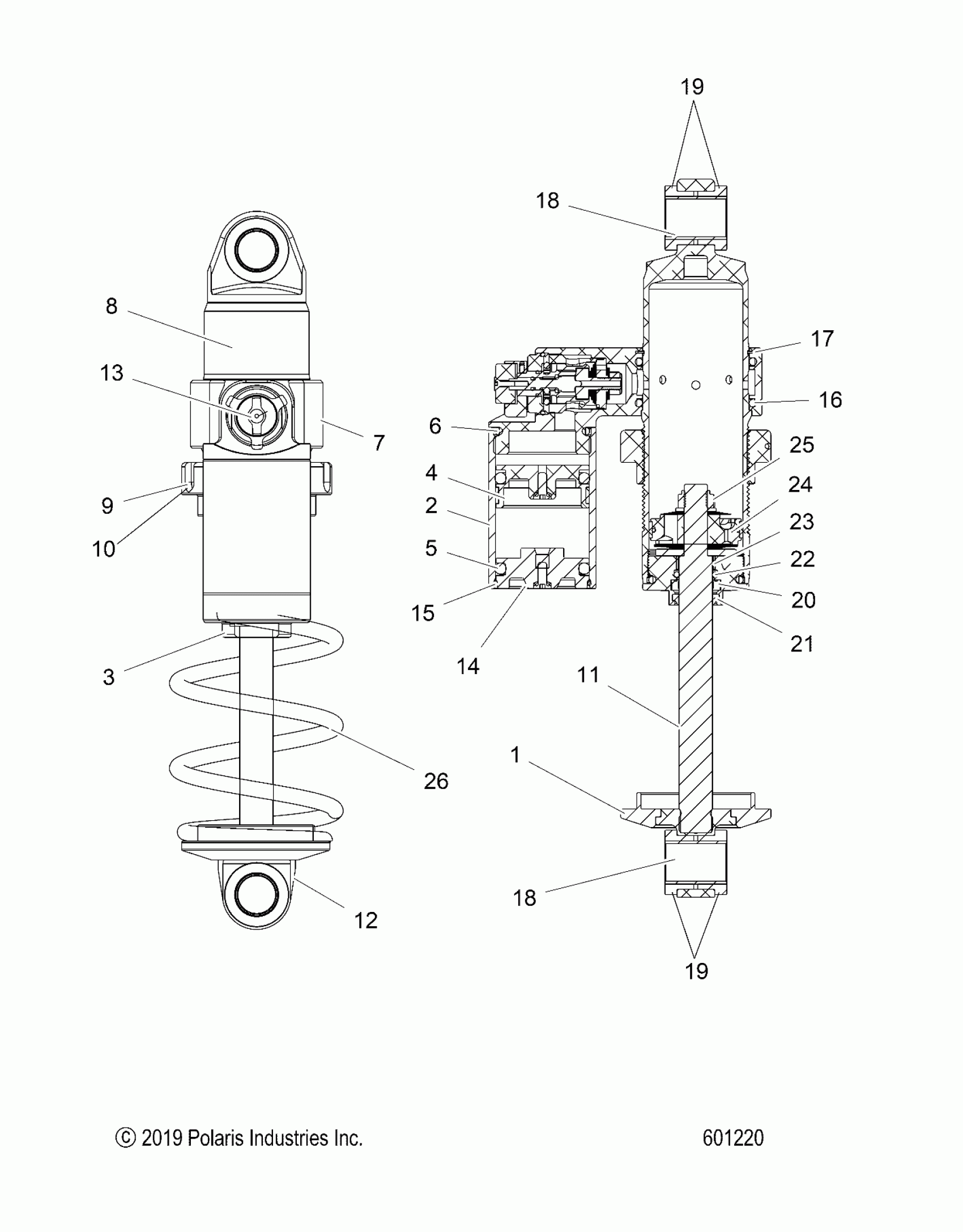

Polaris 800 RMK KHAOS 155/155 3" SC SELECT (R03) - S20EFT8PS/EFN8PS SUSPENSION, SHOCK, FRONT TRACK - S20EFT8PS/EFN8PS (601220) Diagram
#
Description
Price
-
SHOCK, FT, WALKER EVANS VELOCITY [INCL. 1-25]
7045233
$879.99
1
RETAINER-CLIP SPRING,BLK
1800925
$39.99
2
BODY-RESERVOIR, 2"
1801070
$119.99
3
ASM., SEAL HEAD .625 SHAFT [INCL. NEEDLE VALVE, 2,4,5]
1800569
$199.99
4
ASM-PISTON IFP
1800739
$44.99
5
O-RING 2-324
1800184
$5.65
6
O-RING BODY LOOP
1800030
$2.02
7
BRIDGE-2" HI-LO
1801071
$314.99
8
BODY-2" MIDMNT
1801072
$234.99
9
SPRING NUT- 2.0
1800936
$64.99
10
SCREW-M4
1801002
$3.99
11
SHAFT- .625DIA.
1801073
$154.99
12
SHAFT LOOP .625THD
1801074
$84.99
13
ADJUSTER-HS-LS
1801059
$459.99
14
END CAP ASM-2.0
1801006
$114.99
15
WIRE RING
1800795
$7.27
16
O-RING 2-226
1800863
$4.79
17
RETAINING RING 2.0 EXT
1801075
$24.27
18
SLEEVE 1.150L
1800405
$28.32
18
SLEEVE 1.150L
1800405
$28.32
19
BUSHING
1800406
$5.65
19
BUSHING
1800406
$5.65
20
SEAL-U-CUP
1800323
$24.27
21
SEAL-WIPER YELLOW
1800322
$28.32
22
O-RING 2-114
1800037
$1.60
23
SHAFT BUSHING .625X.25L
1801076
$11.99
24
ASM-PISTON
1801077
$105.22
25
NUT-FLEX LOCK 7/16
1801000
$7.99
26
SPRING-COMP 75/150#X6.7 2" BLK
7045232-458
$145.22
