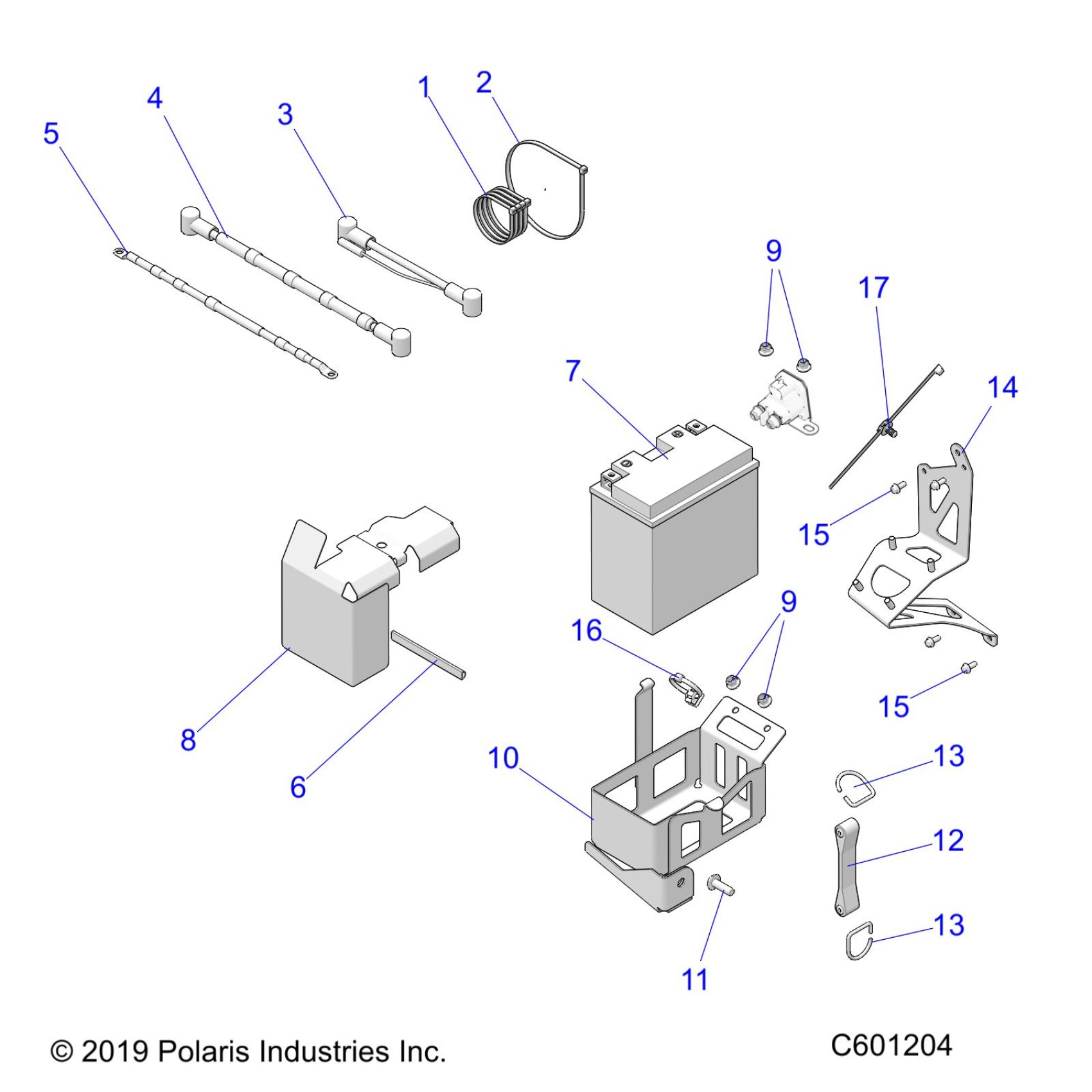

Polaris 800 RMK KHAOS 155/155 3" SC SELECT (R03) - S20EFT8PS/EFN8PS ELECTRICAL, BATTERY and CABLES - S20EFT8PS/EFN8PS E.S. (C601204) Diagram

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.39

ASM., CABLE, BATTERY/SOLENOID

2412723

$40.46

INSULATOR-CABLE

5410346

$6.39

CABLE, 6 GA., RED [INCL. INSULATOR]

4014682

$53.24

CABLE, 6 GA., BLACK

4014683

$48.40

SEAL-BULB, 350CM [BULK SVC]

5521697-350

$40.46

KIT, BATTERY BOLT

2202213

$3.79

BATTERY [SVC]

4013045

$127.99

SHIELD-HEAT, BATTERY

5262301

$33.87

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

BOX, BATTERY

1022240

$58.08

SCR-M8X1.25X25 8.8TXTR ZOD P80

7518906

$3.19

STRAP, RUBBER [DOES NOT INCL. D-HOOK]

5410608

$9.70

D-Hook

5224468

$9.59

D-Hook

5224468

$9.59

ASM., BRKT., BATTERY BOX

1020323

Unavailable

SCR-HXFL-M5X0.8X12 4.8 ZPC NYL

7518894

$1.49

SCR-HXFL-M5X0.8X12 4.8 ZPC NYL

7518894

$1.49

CLIP-EDGE,1-3MM THICKNESS

7082401

$7.91

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79
