SUSPENSION - S03NM8CS (4977657765B07)

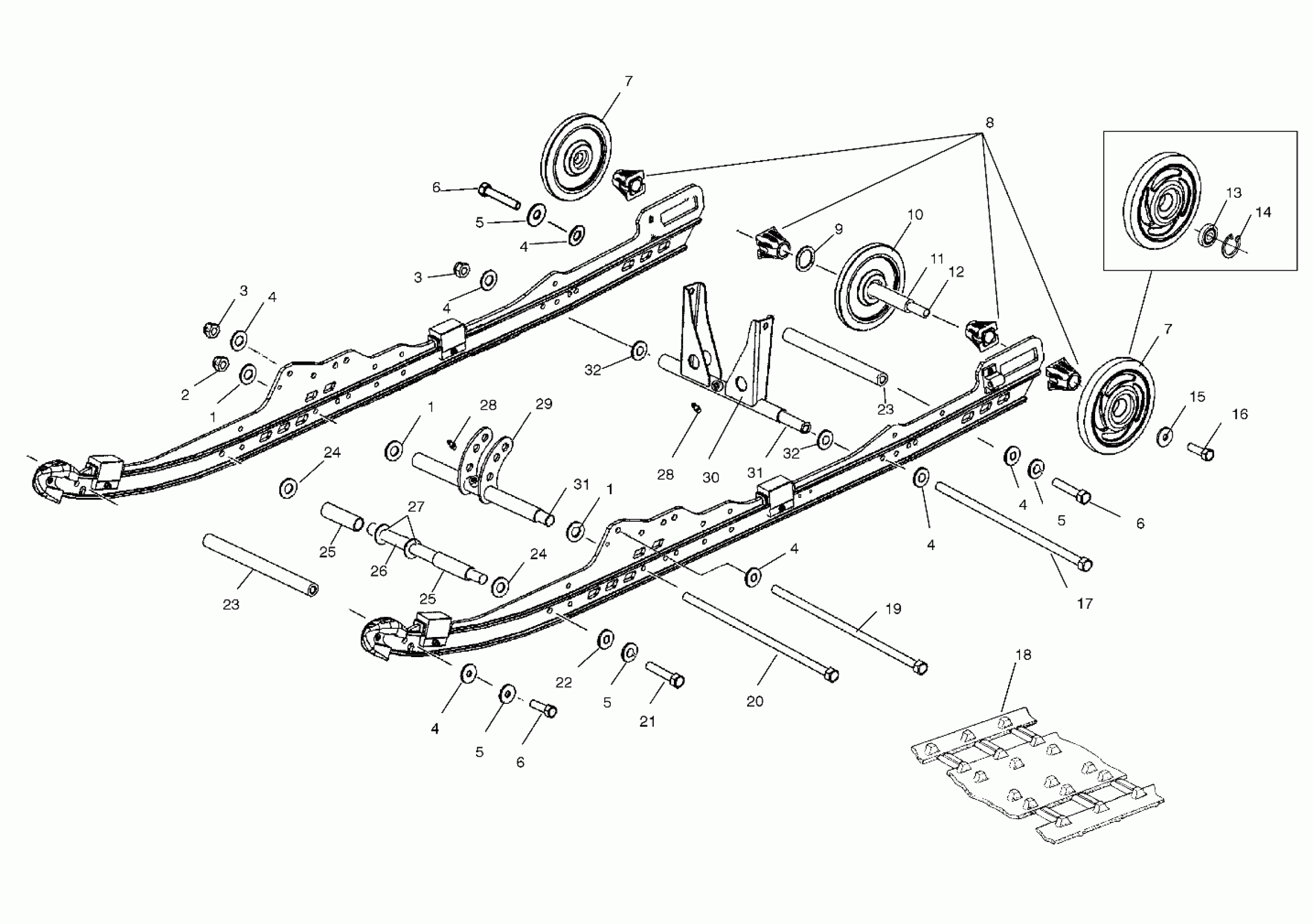

Polaris 800 RMK 159 BUILT BEFORE 1/01/02 - S03NM8CS SUSPENSION - S03NM8CS (4977657765B07) Diagram
#
1
WASHER, FLAT
7556216
$4.79
1
WASHER, FLAT
7556216
$4.79
1
WASHER, FLAT
7556216
$4.79
2
Nut, Nylok
7547064
Unavailable
3
Nut, Nylok
7542439
$1.49
3
Nut, Nylok
7542439
$1.49
4
Washer, Flat
7555806
$1.49
4
Washer, Flat
7555806
$1.49
4
Washer, Flat
7555806
$1.49
4
Washer, Flat
7555806
$1.49
4
Washer, Flat
7555806
$1.49
4
Washer, Flat
7555806
$1.49
4
Washer, Flat
7555806
$1.49
5
Washer, Spring Lock
7552603
$1.49
5
Washer, Spring Lock
7552603
$1.49
5
Washer, Spring Lock
7552603
$1.49
5
Washer, Spring Lock
7552603
$1.49
6
Screw
7517247
$3.19
6
Screw
7517247
$3.19
6
Screw
7517247
$3.19
7
Wheel, Indy Blue [Incl. 13,14]
1590303-312
$48.56
7
Wheel, Indy Blue [Incl. 13,14]
1590303-312
$48.56
8
SPACER-IDLER
5432535
$11.99
9
BUSHING
7555918
$1.59
10
Wheel
1594087
$72.84
11
SPACER-IDLER, LONG
5333285
$11.99
12
SHAFT, IDLER
5020744
$59.99
13
BEARING
3514384
$19.84
14
RING-RETAINING
7710444
$8.79
15
WASHER, BELLE
7556130
$6.39
16
BOLT
7517731
$1.49
17
SCREW
7517921
$23.99
18
Track
5412185
Unavailable
19
SCREW
7517921
$23.99
20
Screw
7517996
Unavailable
21
Screw
7517857
$5.59
22
WASHER
7556042
Unavailable
23
Shaft
5020868
Unavailable
23
Shaft
5020868
Unavailable
24
WSHR-.813X.406X.105-Y
7555832
$2.39
24
WSHR-.813X.406X.105-Y
7555832
$2.39
25
Spacer, Shock Centering
5334062
$11.99
25
Spacer, Shock Centering
5334062
$11.99
26
SHAFT
5133188
$40.46
27
Washer, Flat
7556210
$3.99
28
FITTING-LUBRICATION 1/4-28
7080424
$4.79
28
FITTING-LUBRICATION 1/4-28
7080424
$4.79
29
Arm, Pivot, Shock
1541635-067
$67.76
30
Arm, Pivot, Rear
1541832-067
$104.99
31
Tube
5334042
Unavailable
31
Tube
5334042
Unavailable
32
WASHER
7556242
$2.39
32
WASHER
7556242
$2.39
