- Partiron
- OEM Parts
- Polaris
- SNOW
- SNO
- 2003
- 800 RMK 159 BUILT BEFORE 1/01/02 - S03NM8CS
STEERING/HANDLEBAR - S03NM8CS (4977657765B06)

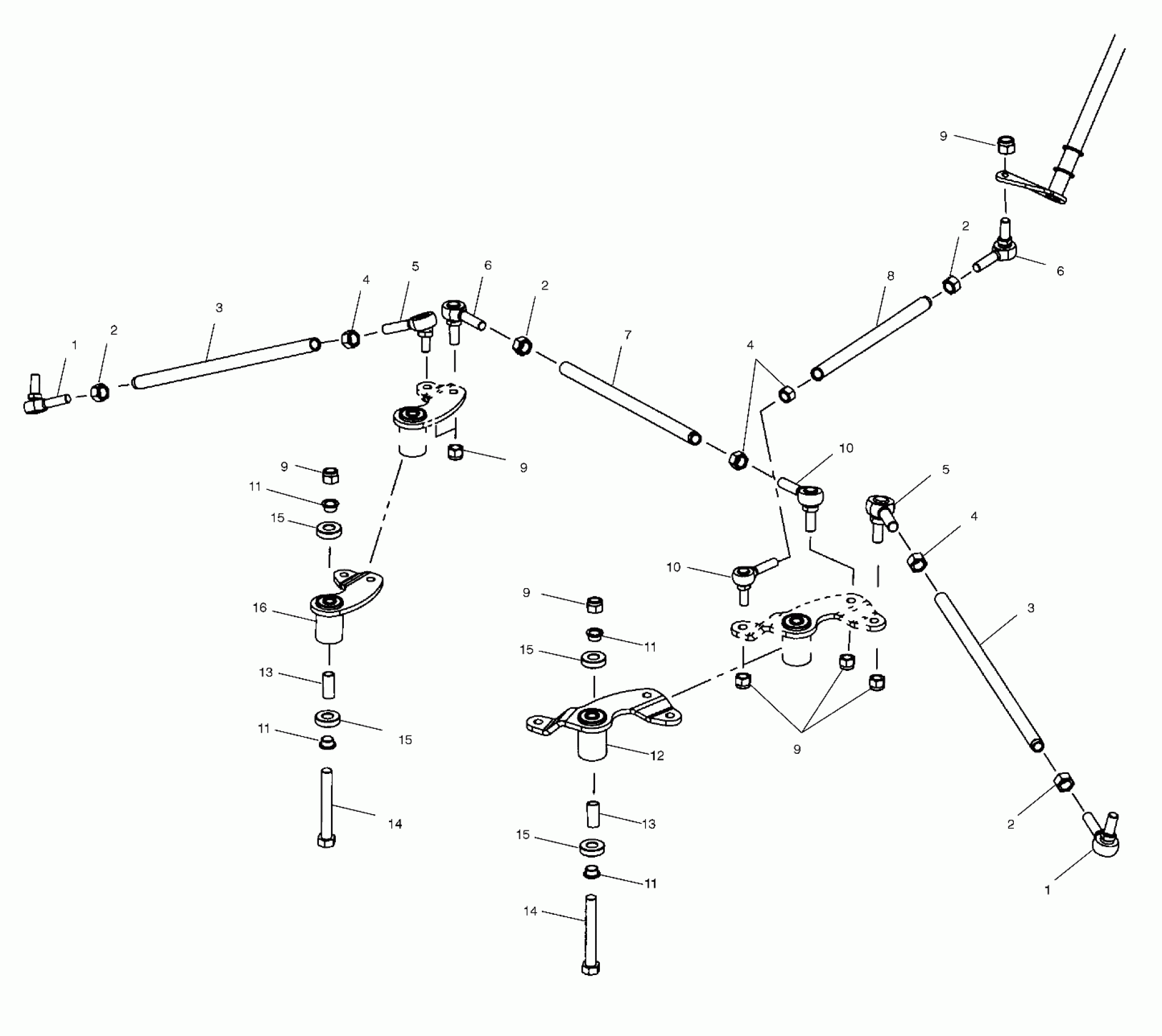

Polaris 800 RMK 159 BUILT BEFORE 1/01/02 - S03NM8CS STEERING/HANDLEBAR - S03NM8CS (4977657765B06) Diagram
#
Description
Price
1
Rod End, RH
7061086
$48.56
1
Rod End, RH
7061086
$48.56
2
NUT
7542401
$2.39
2
NUT
7542401
$2.39
2
NUT
7542401
$2.39
2
NUT
7542401
$2.39
3
Tie Rod
5333937
$36.41
3
Tie Rod
5333937
$36.41
4
NUT, LH
7542424
$1.49
4
NUT, LH
7542424
$1.49
4
NUT, LH
7542424
$1.49
5
Rod End, LH
7061085
Unavailable
5
Rod End, LH
7061085
Unavailable
6
Rod End, RH
7061076
$48.56
6
Rod End, RH
7061076
$48.56
7
Rod, Steering Rack
5333772
$36.41
8
Rod, Draglink
5333773-067
$38.71
9
Nut, Nylok
7542439
$1.49
9
Nut, Nylok
7542439
$1.49
9
Nut, Nylok
7542439
$1.49
9
Nut, Nylok
7542439
$1.49
9
Nut, Nylok
7542439
$1.49
10
Rod End, LH
7061075
$48.56
10
Rod End, LH
7061075
$48.56
11
BUSHING, REDUCER
5132106
$7.99
11
BUSHING, REDUCER
5132106
$7.99
11
BUSHING, REDUCER
5132106
$7.99
11
BUSHING, REDUCER
5132106
$7.99
12
Asm., Pitman Arm [Incl. 11,13,15]
1820957
$155.99
13
Tube, Spacer
5133423
$29.99
13
Tube, Spacer
5133423
$29.99
14
Screw
7512435
$3.99
14
Screw
7512435
$3.99
15
Bearing, Ball
3514320
$15.99
15
Bearing, Ball
3514320
$15.99
15
Bearing, Ball
3514320
$15.99
15
Bearing, Ball
3514320
$15.99
16
Asm., Idler Arm [Incl. 11,13,15]
1820959
$184.99
