STARTING MOTOR - S03NM8CS (4977657765C13)

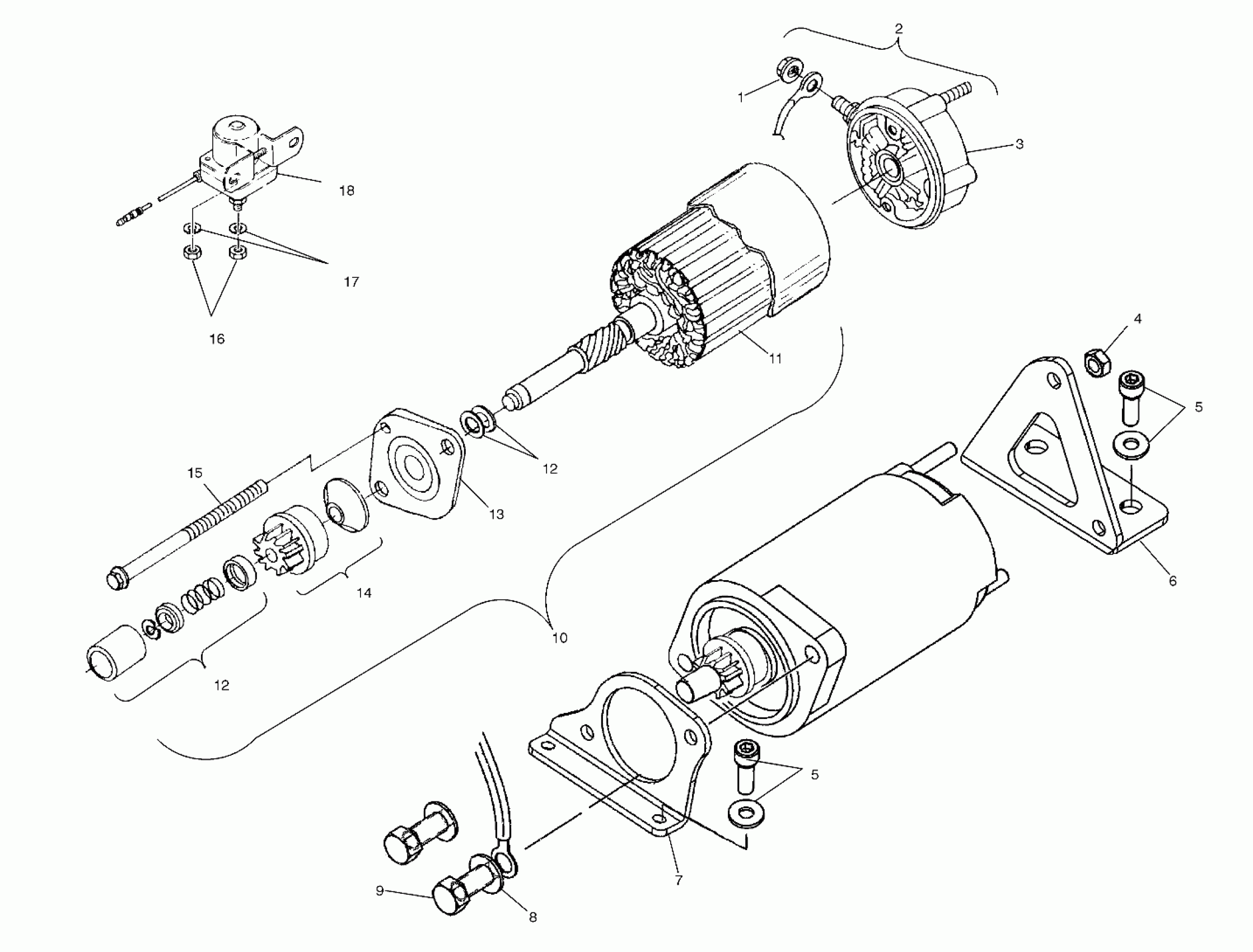

Polaris 800 RMK 159 BUILT BEFORE 1/01/02 - S03NM8CS STARTING MOTOR - S03NM8CS (4977657765C13) Diagram
#
1
Nut
7542103
$5.59
2
Kit, Commutator Cap [Incl. 3]
2200758
$82.39
3
Kit, Brush & Spring
2200759
$59.99
3
ASM., BRUSH & SCREW
-------
Unavailable
3
ASM., BRUSH
-------
Unavailable
3
BUSHING, INSULATION
-------
Unavailable
3
WASHER, INSULATION
-------
Unavailable
3
Nut
-------
Unavailable
4
Nut
7542153
$1.59
5
Screw
7517957
Unavailable
5
Screw
7517957
Unavailable
6
Bracket, Starter, Rear
5245780
Unavailable
7
Bracket, Starter, Front
5245781
Unavailable
8
Washer, Spring Lock
7552603
$1.49
9
Screw
7512492
$1.49
10
Motor, Starter, Domestic
4170006
Unavailable
11
Kit, Armature
2200756
$169.99
12
Kit, Drive Hardware
2200755
Unavailable
12
WASHER, CURVED SPRING
-------
Unavailable
12
Washer, Thrust
-------
Unavailable
12
SPACER
-------
Unavailable
12
SPRING, ANTIDRIFT
-------
Unavailable
12
PINION, STOP
-------
Unavailable
12
RING, LOCK
-------
Unavailable
12
COVER, DUST
-------
Unavailable
12
Kit, Drive Hardware
2200755
Unavailable
12
WASHER, CURVED SPRING
-------
Unavailable
12
Washer, Thrust
-------
Unavailable
12
SPACER
-------
Unavailable
12
SPRING, ANTIDRIFT
-------
Unavailable
12
PINION, STOP
-------
Unavailable
12
RING, LOCK
-------
Unavailable
12
COVER, DUST
-------
Unavailable
13
Kit, Drive Cap
2200757
$59.99
14
Kit, Drive
2200754
Unavailable
14
PLATE, DRIVE
-------
Unavailable
14
PINION
-------
Unavailable
15
Kit, Screw
2200753
$29.99
15
BOLT, THRU
-------
Unavailable
16
Nut
3082939
Unavailable
17
Washer, Spring
3080077
$2.39
18
Switch, Magnetic [Incl. 16,17]
3083211
Unavailable
