- 800 RMK 159 BUILT BEFORE 1/01/02 - S03NM8CS
SHOCK (REAR TRACK) - S03NM8CS (4977657765D03)

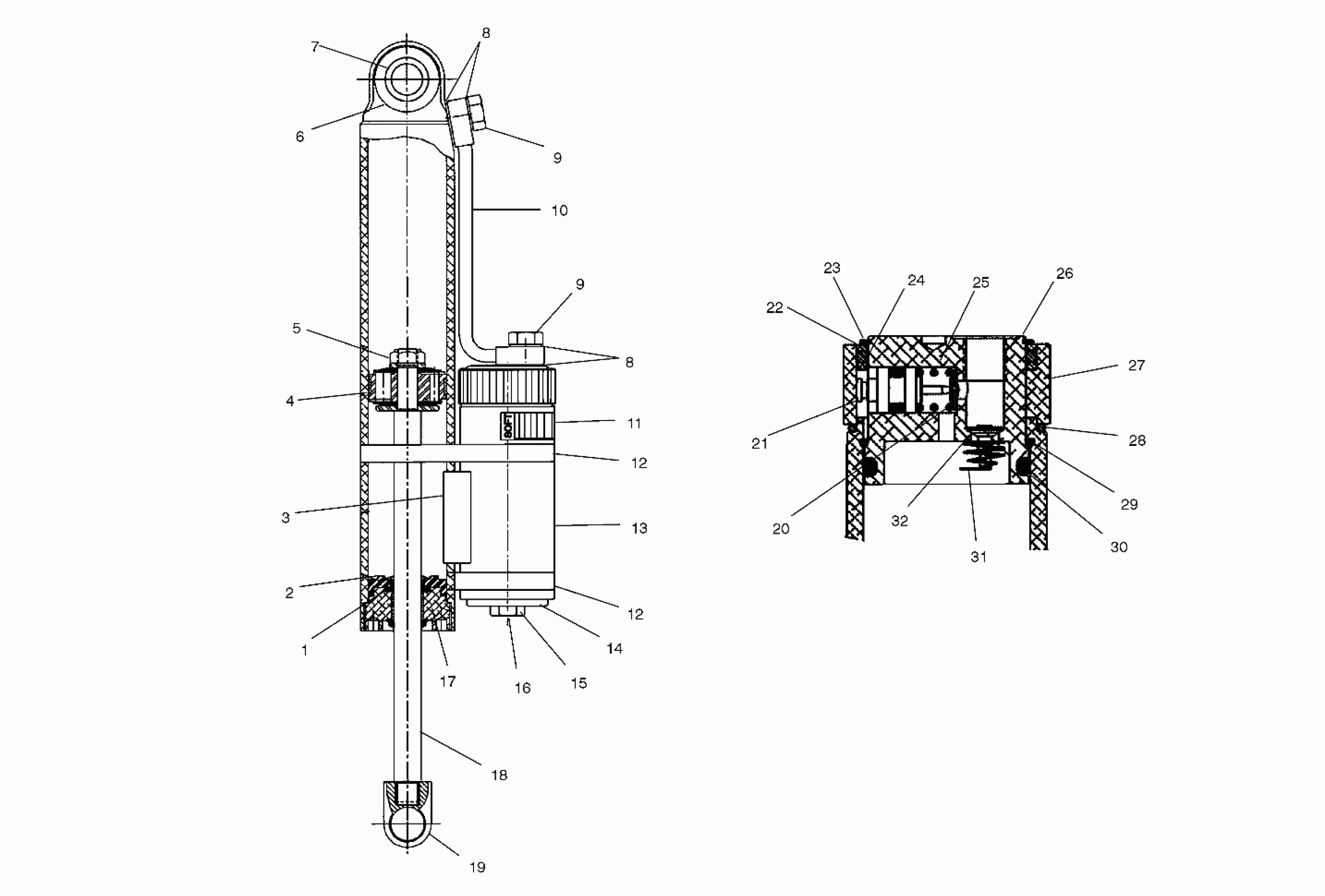

Polaris 800 RMK 159 BUILT BEFORE 1/01/02 - S03NM8CS SHOCK (REAR TRACK) - S03NM8CS (4977657765D03) Diagram
#
-
IFP
1700023
$45.59
-
Band, Wear
1700032
$24.99
-
O-Ring
1700048
$11.60
-
Shock, Rear Track, IFP
7041968
Unavailable
1
Seal, Rod
1700021
$20.22
2
Seal, Cap
1700022
Unavailable
3
Isolator
1700162
Unavailable
4
Washer, Back-Up
1700078
$9.59
4
Band, Wear
1700031
$28.32
4
Washer, Top-Out
1700077
$10.39
4
Subasm., Piston
1700110
$34.71
5
Nut
1700057
$9.59
6
Bushing
1700073
$11.99
7
Sleeve
1700069
$15.99
8
Washer, Copper
1700168
$15.87
8
Washer, Copper
1700168
$15.87
9
Bolt, Banjo
1700169
Unavailable
9
Bolt, Banjo
1700169
Unavailable
10
Line, Pressure
1700167
Unavailable
11
Label, Adjustment
1700166
Unavailable
12
Clamp, Hose
1700063
Unavailable
12
Clamp, Crimp
1700163
$10.63
12
Clamp, Hose
1700063
Unavailable
12
Clamp, Crimp
1700163
$10.63
13
Cylinder, Reservoir
1700165
$78.39
14
Cap w/Valve, End
1700164
$59.03
15
Asm., Pressure Valve
1700053
Unavailable
15
O-Ring
1700045
$6.63
16
Screw, Valve
1700055
$9.59
17
Asm., Cylinder Head
1700007
$106.49
18
Shaft, Rear Track Shock
1700183
Unavailable
19
Mount, Upper
1700024
Unavailable
20
Valve, Metering
1700177
$9.91
21
Asm., Plunger
1700174
$21.27
22
Spacer
1700173
$9.67
23
Ring, Retaining
1700175
$17.59
24
O-Ring
1700051
Unavailable
25
Spring, Compression
1700176
$9.11
26
Housing, Adjuster
1700181
$74.39
27
Knob, Adjuster
1700172
$36.31
28
O-Ring
1700171
$4.99
29
Circlip
1700170
$11.43
30
O-Ring
1700149
Unavailable
31
Spring, Replenishing Valve
1700179
$9.52
32
Valve, Replenishing
1700178
$11.51
