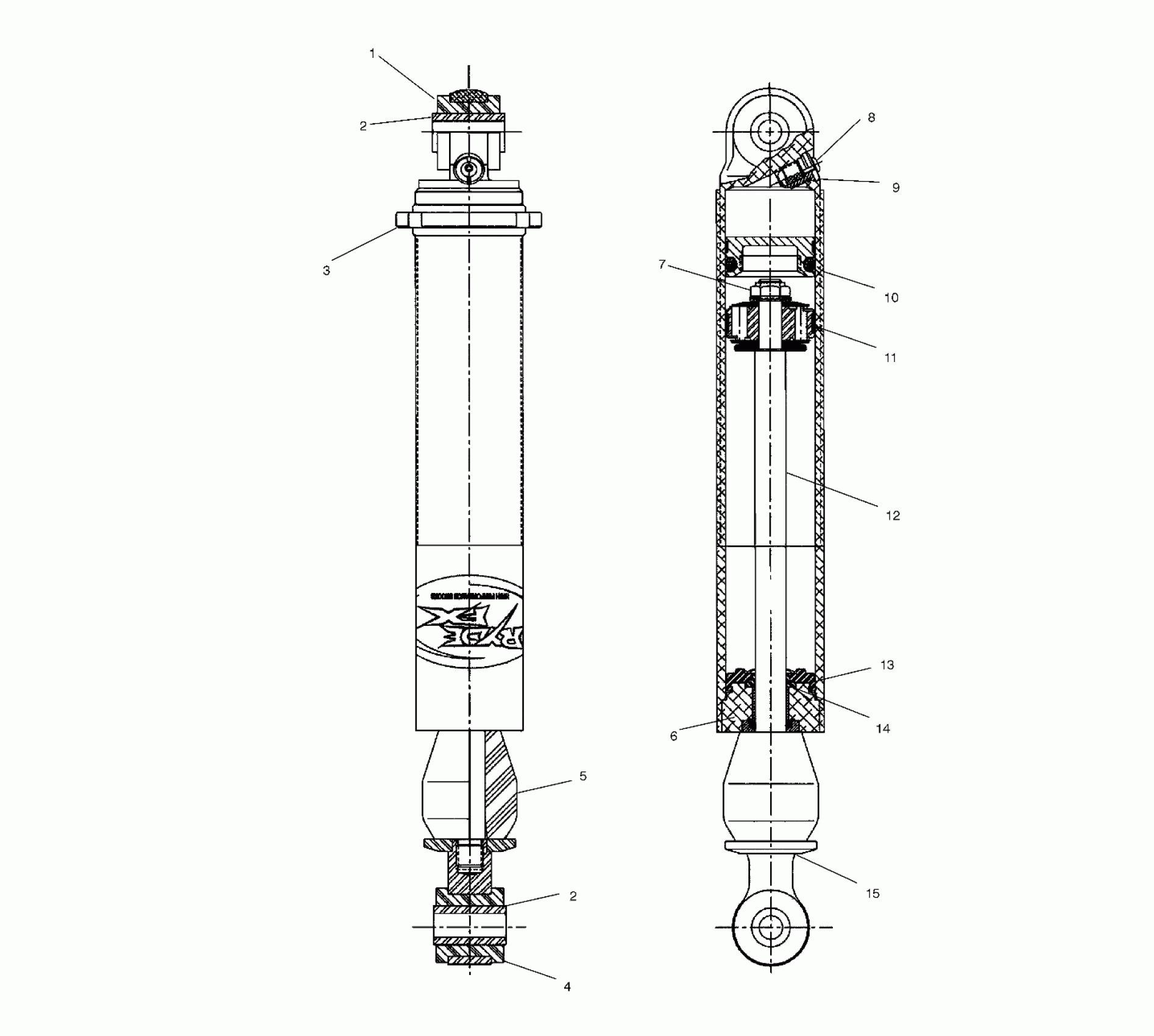

Polaris 800 RMK 159 BUILT BEFORE 1/01/02 - S03NM8CS SHOCK (IFS) - S03NM8CS (4977657765D01) Diagram

#

Description
Price

-

Shock, IFS

7042059

Unavailable

1

Bushing

1700036

$7.99

2

Sleeve

1700079

$9.59

2

Sleeve

1700079

$9.59

3

Nut, Spring Retainer

1700229

$23.81

4

Bushing

1700072

$9.59

5

Bumper, Comp.

1700042

Unavailable

6

Asm., Cylinder Head

1700007

$106.49

7

Nut

1700057

$9.59

8

Screw, Valve

1700056

$6.94

9

O-Ring

1700047

$7.13

9

Asm., Pressure Valve

1700076

Unavailable

10

IFP

1700023

$45.59

10

Band, Wear

1700032

$24.99

10

O-Ring

1700048

$11.60

11

Washer, Back-Up

1700078

$9.59

11

Band, Wear

1700031

$28.32

11

Washer, Top-Out

1700077

$10.39

11

Subasm., Piston

1700108

$30.55

12

Shaft, IFS Shock

1700025

$93.08

13

Seal, Cap

1700022

Unavailable

14

Seal, Rod

1700021

$20.22

15

Mount, Upper

1700010

Unavailable
