- 800 RMK 159 BUILT BEFORE 1/01/02 - S03NM8CS
RAIL MOUNTING SUSPENSION - S03NM8CS (4977657765B08)

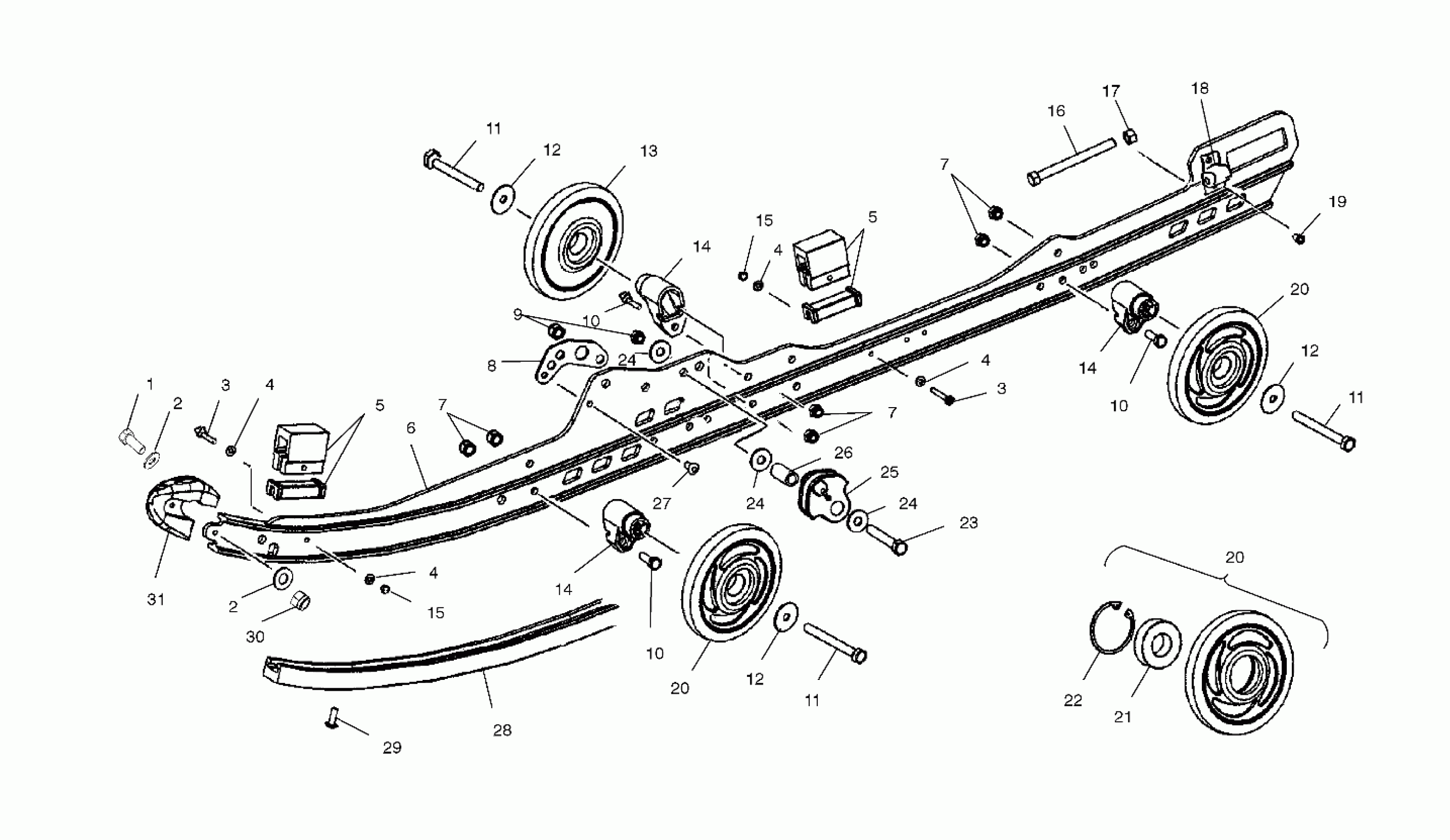

Polaris 800 RMK 159 BUILT BEFORE 1/01/02 - S03NM8CS RAIL MOUNTING SUSPENSION - S03NM8CS (4977657765B08) Diagram
#
1
Screw
7512007
$3.99
2
WASHER
7555792
$4.79
2
WASHER
7555792
$4.79
3
Screw
7510504
$6.76
3
Screw
7510504
$6.76
4
Washer, Flat
7555783
$3.99
4
Washer, Flat
7555783
$3.99
4
Washer, Flat
7555783
$3.99
4
Washer, Flat
7555783
$3.99
5
Bumper, Jounce
5521498
$8.89
5
LINER-BUMPER
5432946
$9.70
5
Bumper, Jounce
5521498
$8.89
5
LINER-BUMPER
5432946
$9.70
6
Rail, 159 LH [Incl. 1,2,3,4,5,6,18,19,30,31]
1541806
$308.99
6
Rail, 159 RH [Incl. 1,2,3,4,5,6,18,19,30,31]
1541807
$209.52
7
NUT-5/16-18 NYLOK-Y
7542324
$1.49
7
NUT-5/16-18 NYLOK-Y
7542324
$1.49
7
NUT-5/16-18 NYLOK-Y
7542324
$1.49
8
Bracket, Rail Reinforcement
5245411
$9.70
9
Nut, Nylok
7542439
$1.49
10
BOLT
7515317
$4.79
10
BOLT
7515317
$4.79
10
BOLT
7515317
$4.79
11
Screw
7515346
$5.59
11
Screw
7515346
$5.59
11
Screw
7515346
$5.59
12
Washer, Spring
7556179
$7.99
12
Washer, Spring
7556179
$7.99
12
Washer, Spring
7556179
$7.99
13
Asm., Bogie Wheel
1590317
$48.56
14
Block, Wheel Mount
5631065
$28.32
14
Block, Wheel Mount
5631065
$28.32
14
Block, Wheel Mount
5631065
$28.32
15
Nut, Nylok
7541925
$1.49
15
Nut, Nylok
7541925
$1.49
16
SCREW
7517227
$7.19
17
NUT
7542404
$1.59
18
Bracket, Idler Bolt Adjust
5130530
$32.37
19
RIVET
7621501
$2.39
20
Asm., Wheel, Scrolled, I. Bl [Incl. 21,22]
1590318-312
Unavailable
20
Asm., Wheel, Scrolled, I. Bl [Incl. 21,22]
1590318-312
Unavailable
20
Asm., Wheel, Scrolled, I. Bl [Incl. 21,22]
1590318-312
Unavailable
21
BEARING [1 PER WHEEL]
3514303
$11.99
22
RET.RING-TRUARC [1 PER WHEEL]
7718407
$4.79
23
Screw
7515438
$4.79
24
WASHER
7555983
Unavailable
24
WASHER
7555983
Unavailable
24
WASHER
7555983
Unavailable
25
Pin, Clevis
7661123
$3.99
25
GUIDE, SPRING, SQUARE
5434334
$28.32
25
PIN, HITCH
7661644
$2.39
26
SPACER
5333948
$6.39
27
RIVET
7661845
$1.49
28
Hi-Fax
5521595-309
$40.46
29
Screw
7515199
$1.49
30
NUT
7541925
$1.49
31
Cap, Rail Tip
5434355
Unavailable
