- 800 RMK 159 BUILT BEFORE 1/01/02 - S03NM8CS
NOSEPAN - S03NM8CS (4977657765A06)

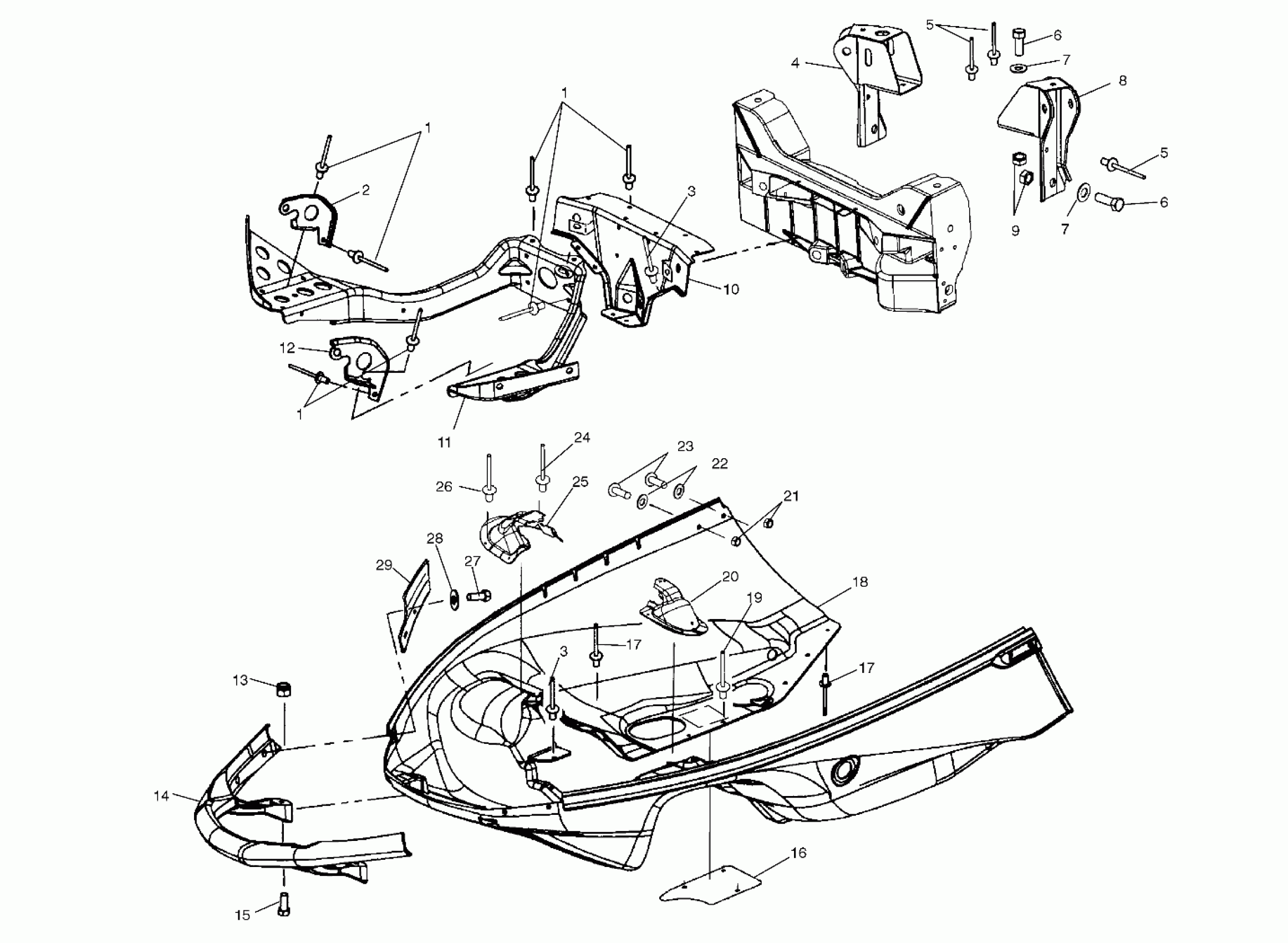

Polaris 800 RMK 159 BUILT BEFORE 1/01/02 - S03NM8CS NOSEPAN - S03NM8CS (4977657765A06) Diagram
#
Description
Price
1
RIVET-3/16-.090-.290
7661637
$1.49
1
RIVET-3/16-.090-.290
7661637
$1.49
1
RIVET-3/16-.090-.290
7661637
$1.49
2
Hinge, Pivot, Lower, RH
5243992-067
$104.99
3
RIVET
7621431
$1.49
3
RIVET
7621431
$1.49
4
Tower, Shock, RH
1821108-067
Unavailable
5
Rivet
7661130
$1.49
5
Rivet
7661130
$1.49
6
SCREW
7517935
$2.39
6
SCREW
7517935
$2.39
7
WASHER
7556153
$1.99
7
WASHER
7556153
$1.99
8
Tower, Shock, LH
1821107-067
$99.99
9
Nut, Flange
7547180
$2.39
10
Support, Radius Rod
5244049-067
Unavailable
11
Brace, Pan, Lower
5244050
$137.60
12
Hinge, Pivot, Lower, LH
5243991-067
$104.99
13
NUT, NYLOK
7542153
$1.59
14
Bumper, Front, Yellow
5433518-216
$64.75
15
Bolt
7512163
$3.99
16
Shield, Heat
5245853
$11.59
17
RIVET
7621467
$1.49
17
RIVET
7621467
$1.49
18
Nosepan, Sonic Blue
5434345-341
Unavailable
19
RIVET
7621472
$1.49
20
Cover, Shock Tower, LH
5434346
$39.99
21
Nut, Nylok
7542122
$1.49
22
WASHER
7555827
$3.99
23
Screw
7515166
$3.19
24
RIVET
7621418
$1.49
25
Cover, Shock Tower, RH
5434347
Unavailable
25
Foil, Shock Tower
5812271
$4.95
26
RIVET
7621485
$1.49
27
SCR-1/4-20X.88,HXWR TAPR,GR5,Y
7517312
$1.49
28
WASHER, SPRING LOCK
7552801
$1.59
29
Guide, Hood, LH
5244888
Unavailable
29
Guide, Hood, RH
5244889
Unavailable
