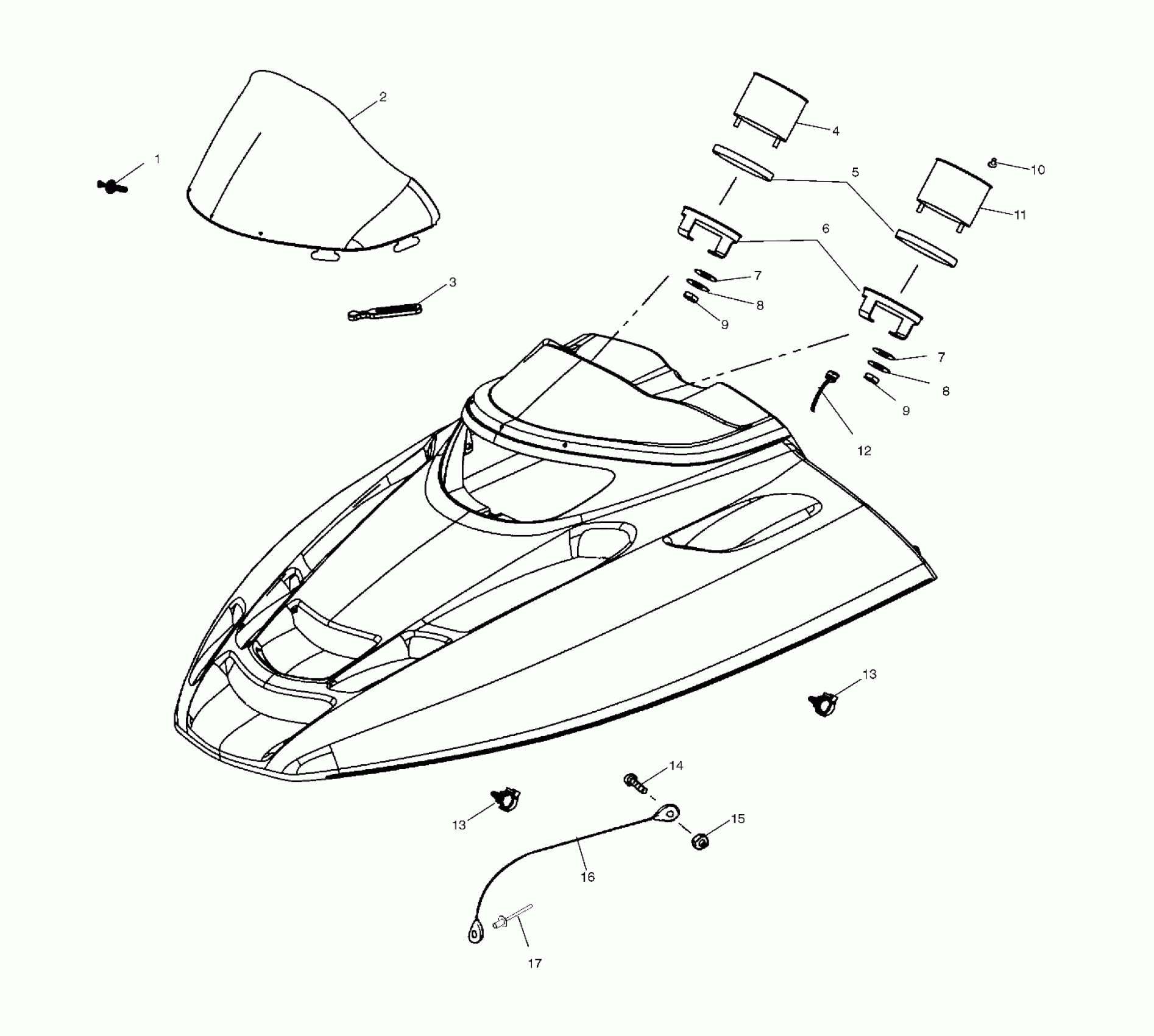

Polaris 800 RMK 159 BUILT BEFORE 1/01/02 - S03NM8CS HOOD - S03NM8CS (4977657765A09) Diagram

#

Description
Price

1

RIVET

7621509

$1.49

2

Windshield, Edge, Smoke, Flared, 13"

5434194

$159.99

3

RETAINER, WINDSHIELD

5410970

$1.49

4

Bulb, Replacement

4030015

$4.03

4

Asm., Tachometer

3280409

$108.99

5

Cushion, Rubber

3280209

$3.99

6

Bracket, Speedometer/Tachometer

3280210

$28.32

7

Washer, Flat

3280157

$2.39

7

Washer, Flat

3280157

$2.39

8

Washer, Split Lock

3280156

$1.49

8

Washer, Split Lock

3280156

$1.49

9

Nut

3280158

Unavailable

9

Nut

3280158

Unavailable

10

Knob, Trip Odometer

3280186

$9.70

11

Bulb, Replacement

4030015

$4.03

11

Asm., Speedometer

3280411

$339.98

12

Cable, Speedometer

3280385

$93.08

13

CLIP, DART

4010589

$2.39

13

CLIP, DART

4010589

$2.39

14

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.19

15

Nut, Nylok

7541925

$1.49

16

Cable, Hood Retainer

7080521

$24.27

17

RIVET-3/16-.090-.290

7661637

$1.49
