- 800 RMK 159 BUILT BEFORE 1/01/02 - S03NM8CS
HOOD - S03NM8CS (4977657765A08)

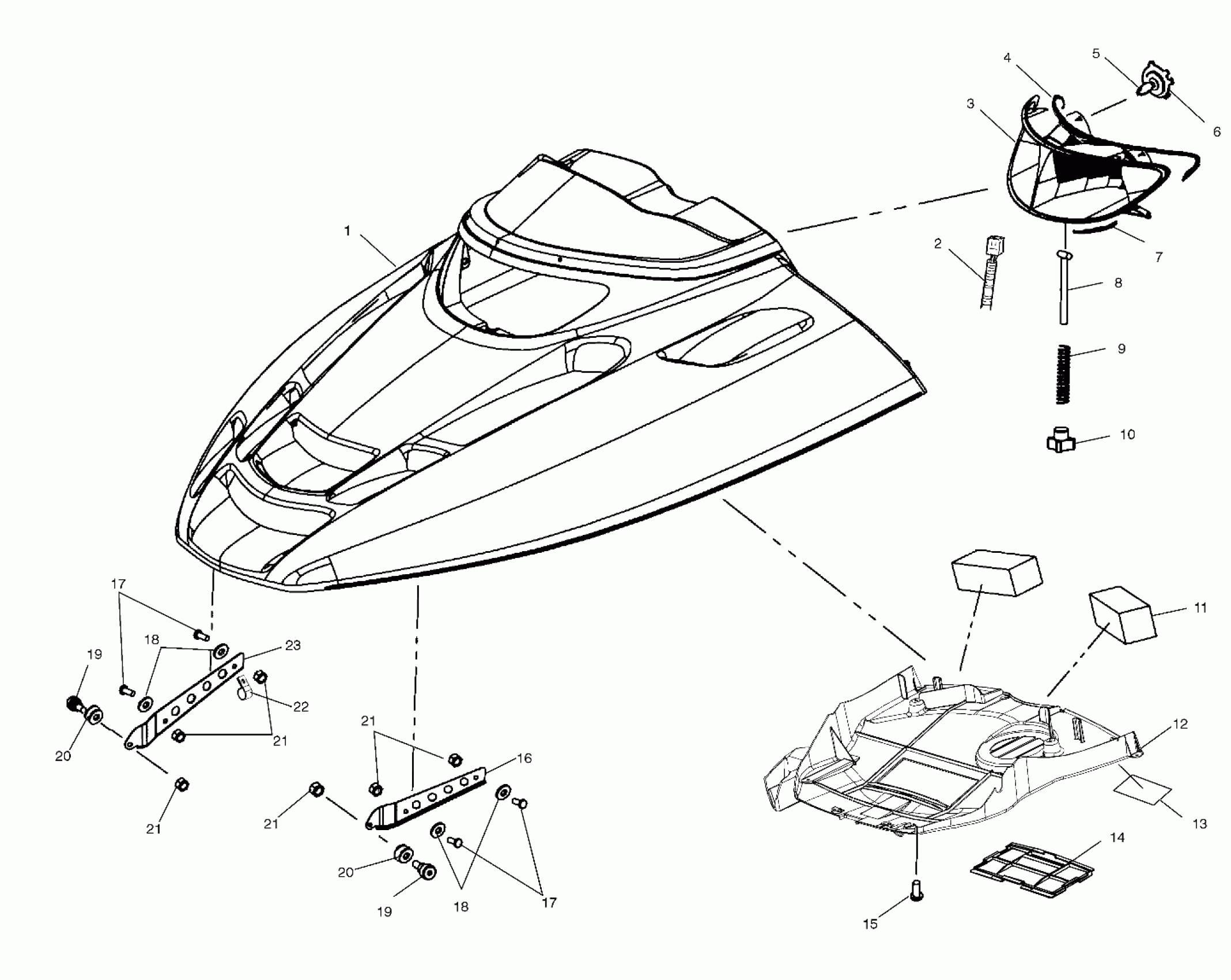

Polaris 800 RMK 159 BUILT BEFORE 1/01/02 - S03NM8CS HOOD - S03NM8CS (4977657765A08) Diagram
#
Description
Price
1
Asm., Hood, Sonic Blue
2632521-341
Unavailable
2
Harness, Headlight
2461015
$66.39
3
Asm., Headlamp [Incl. Bulbs]
2410132
Unavailable
4
Foam, Seal, Headlight, Top
5812175
Unavailable
5
BULB, HEADLIGHT
2870448
$24.99
6
Retainer, Headlamp Bulb
4032063
Unavailable
7
Foam, Seal, Headlight, Bottom
5812174
Unavailable
8
Bolt, Tee Adjust
7517872
Unavailable
9
Spring, Headlight Adjust
7041954
$3.22
10
KNOB-HEADLIGHT,ADJUST,LOCKINGB
7080887
$4.84
11
Foam, Prefilter
5811793
$24.27
12
Foil, Tape
5811948
Unavailable
12
Plenum w/Foil, Intake, Hood
2632491
$64.75
12
Foil, Plenum
5812324
Unavailable
13
Decal, Suspension Set-Up
7170040
Unavailable
14
Cover, Access, Headlight
5433660
$24.27
15
SCREW
7512068
$2.39
16
Hinge, Upper, LH
5243567-067
Unavailable
17
BOLT
7512240
$3.99
17
BOLT
7512240
$3.99
18
Washer, Flat
7558301
$1.49
18
Washer, Flat
7558301
$1.49
19
Bolt
7512113
$3.99
19
Bolt
7512113
$3.99
20
Spacer
5332403
$4.84
20
Spacer
5332403
$4.84
21
Nut, Nylok
7542122
$1.49
21
Nut, Nylok
7542122
$1.49
21
Nut, Nylok
7542122
$1.49
21
Nut, Nylok
7542122
$1.49
22
CLAMP-CABLE
7080367
$2.39
23
Hinge, Upper, RH
5243568-067
Unavailable
