- 800 RMK 159 BUILT BEFORE 1/01/02 - S03NM8CS
FRONT SUSPENSION - S03NM8CS (4977657765B01)

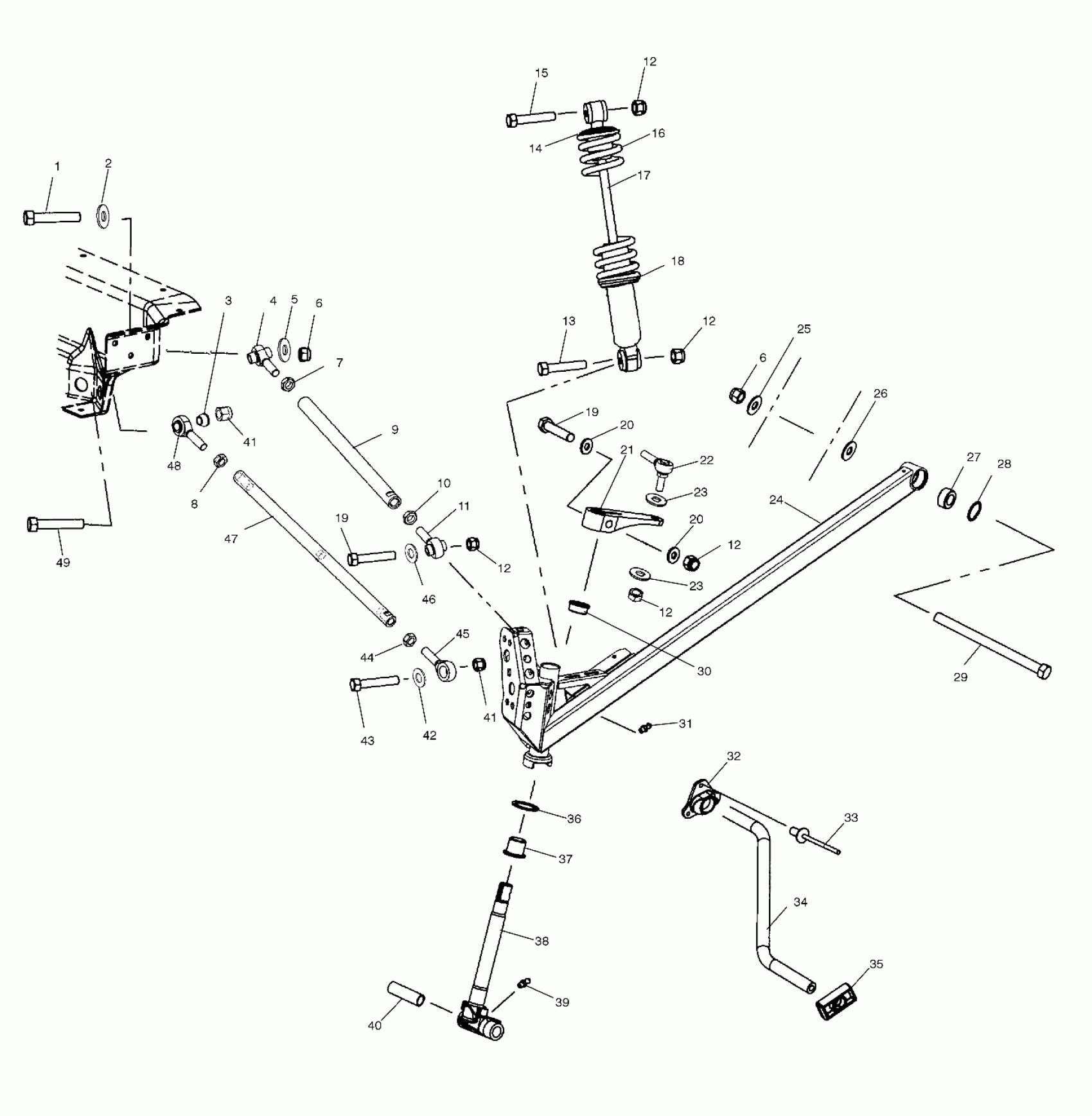

Polaris 800 RMK 159 BUILT BEFORE 1/01/02 - S03NM8CS FRONT SUSPENSION - S03NM8CS (4977657765B01) Diagram
#
1
Bolt
7517980
$7.99
2
WASHER
7556212
$8.79
3
Bushing, Spacer
5132454
Unavailable
4
Rod End, LH
7061081
Unavailable
5
WASHER
7555852
$2.39
6
Nut, Nylok
7547066
$1.59
6
Nut, Nylok
7547066
$1.59
7
Nut, Jam, LH
7547117
Unavailable
8
Nut, Jam
7547028
$2.39
9
Tube, Radius, Upper Cld Slv
5133137
$104.99
10
Nut, Jam
7542520
$2.39
11
Rod End
7061061
$48.56
12
Nut, Nylok
7542439
$1.49
12
Nut, Nylok
7542439
$1.49
12
Nut, Nylok
7542439
$1.49
12
Nut, Nylok
7542439
$1.49
12
Nut, Nylok
7542439
$1.49
13
Screw
7515433
$1.59
14
Retainer, Spring, Slotted
5630580
Unavailable
15
Screw
7515415
$1.49
16
Spring, Compression
7041576-067
$43.99
17
Shock, IFS, Arvin, IFP [See Shock (IFS) Page for Service Components]
7042059
Unavailable
18
Nut, Spring Retainer
-------
Unavailable
19
SCREW
7517583
$4.35
19
SCREW
7517583
$4.35
20
WSHR-.813X.406X.105-Y
7555832
$2.39
20
WSHR-.813X.406X.105-Y
7555832
$2.39
21
Arm, Steering
5133060
$70.39
22
Rod End, RH
7061086
$48.56
23
Washer, Flat
7555797
$3.99
23
Washer, Flat
7555797
$3.99
24
Asm., Trailing Arm, Yellow, LH [Incl. 27,28]
1821201-216
Unavailable
24
Asm., Trailing Arm, Yellow, RH [Incl. 27,28]
1821202-216
Unavailable
25
WASHER, FLAT
7555820
$3.99
26
Cup, Mount, Trailing Arm
5132364
$20.22
27
Bearing, Spherical
7061042
$31.99
28
Ring, Retaining
7710437
$3.19
29
Screw
7512099
$19.99
30
Bushing
3573909
$2.39
31
Fitting, Lubrication
7080433
$1.49
32
Bushing, Torsion Bar
5433814
$23.99
33
Rivet
7621452
$1.49
34
Bar, Torsion
5245217-067
Unavailable
35
Slide, Torsion Bar
5434371
$24.27
36
Bushing
7556509
$1.59
37
BUSHING, FLANGED
3574208
$3.19
38
Shaft w/Steering Stop, Spindle
6230225-067
$219.99
39
Fitting, Lubrication
7080306
$3.19
40
Bushing
5010158
$19.99
41
Nut, Nylok
7547216
Unavailable
41
Nut, Nylok
7547216
Unavailable
42
Washer
7556213
$3.17
43
Bolt
7517906
Unavailable
44
Nut, Jam
7542711
$2.39
45
Rod End
7061052
$48.56
46
WASHER
7556153
$1.99
47
Tube, Radius, Lower
5132953
Unavailable
48
Rod End
7061087
$144.99
49
Bolt
7518041
$6.23
