- 800 RMK 159 BUILT BEFORE 1/01/02 - S03NM8CS
ENGINE MOUNTING - S03NM8CS (4977657765C03)

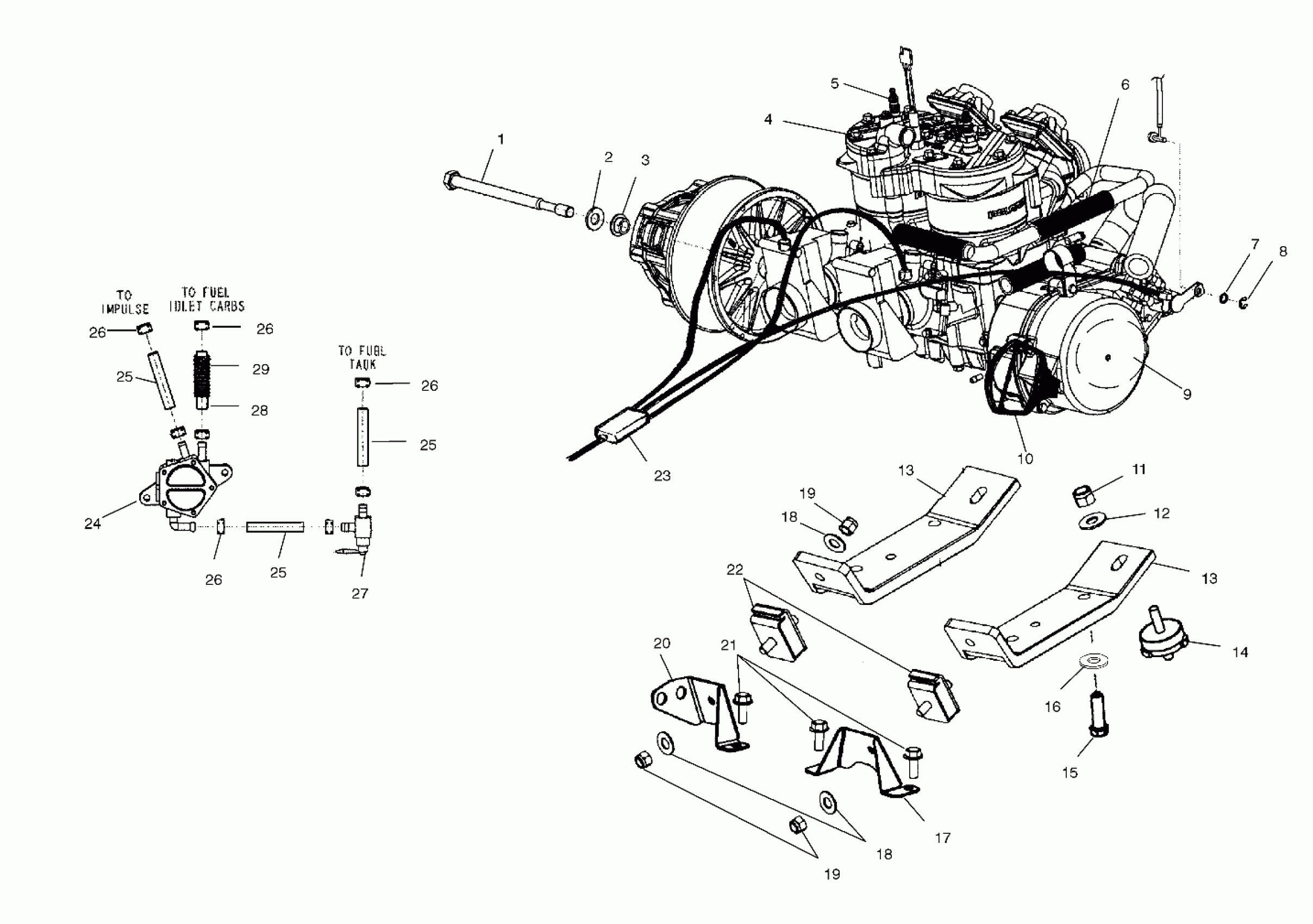

Polaris 800 RMK 159 BUILT BEFORE 1/01/02 - S03NM8CS ENGINE MOUNTING - S03NM8CS (4977657765C03) Diagram
#
Description
Price
1
Screw
7517501
Unavailable
2
WASHER
7556003
$6.39
3
WASHER-CLUTCH RET,M14
5132441
$23.99
4
Engine, Short Block, S807003 NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston and crankshaft assembly. Prior authorization is required f
2202335
Unavailable
5
Spark Plug, RN57YCC, Champion
3070190
$3.99
6
Conduit
5521398-13
Unavailable
7
Washer, Nylon
7555944
$3.99
8
E-Ring
7710427
Unavailable
9
Foil, Tape
5811485
$3.49
10
Handle, Recoil
5431499-070
$15.48
11
NUT-HEX-3/8-16 A ZTB NYL
7542451
$1.49
12
Washer, Flat
7555893
$1.49
13
Strap, Engine Mount, LH
5245462
$39.99
13
Strap, Engine Mount, RH
5245475
$41.59
13
Strap, Engine Mount, LH
5245462
$39.99
13
Strap, Engine Mount, RH
5245475
$41.59
14
Mount, Engine
3021290
Unavailable
15
Screw
7512539
$3.99
16
Washer, Spring Lock
7553101
$3.99
17
Bracket, Engine Mount, RH
5245044
Unavailable
18
Washer, Flat
7555806
$1.49
18
Washer, Flat
7555806
$1.49
19
NUT, FLEXLOC
7547008
$6.39
19
NUT, FLEXLOC
7547008
$6.39
20
Bracket, Engine Mount, LH
1013397
$24.27
21
Screw
7517854
$5.59
22
Mount, Engine
3021206
$60.70
23
Cable, Throttle
7080897
$64.75
24
Pump, Fuel
2520275
$111.99
25
Line, Fuel
8350017-600
Unavailable
25
Line, Fuel
8350017-600
Unavailable
25
Line, Fuel
8350017-600
Unavailable
26
HOSE CLAMP, RED
7080003
$1.49
26
HOSE CLAMP, RED
7080003
$1.49
26
HOSE CLAMP, RED
7080003
$1.49
26
HOSE CLAMP, RED
7080003
$1.49
27
Valve, Fuel Shut-Off
7052268
Unavailable
28
Line, Fuel
8450040-600
Unavailable
29
Convoluted Tubing
8360052-15
Unavailable
