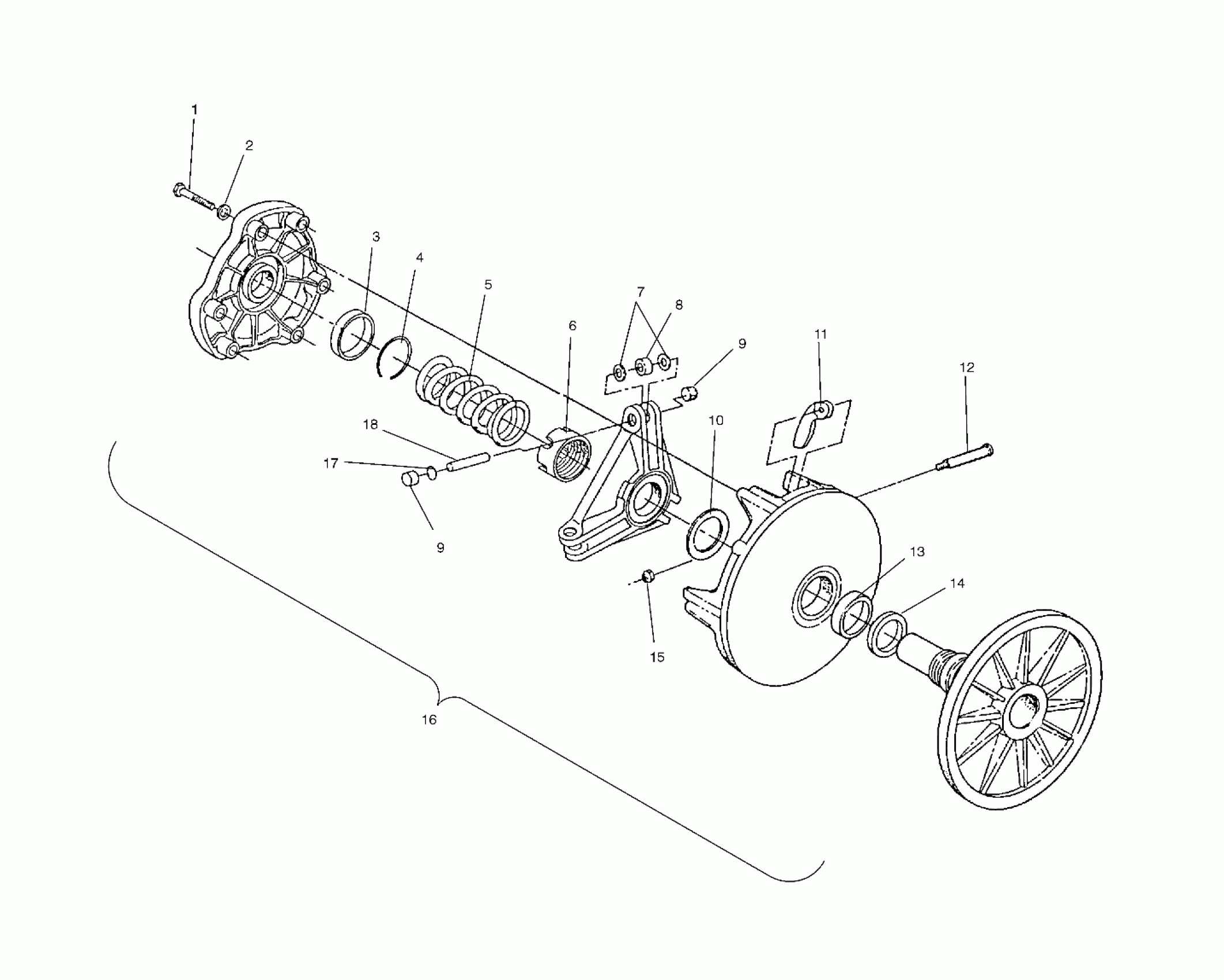

Polaris 800 RMK 159 BUILT BEFORE 1/01/02 - S03NM8CS DRIVE CLUTCH - S03NM8CS (4977657765B13) Diagram

#

Description
Price

1

Bolt

7512265

$3.99

2

WASHER, SPRING LOCK

7552801

$1.59

3

BEARING COVER GARMAX

3514347

$36.41

4

RING-RETAINING,COVER

7710417

$1.49

5

SPRING, CLUTCH, BLACK/GREEN

7042083

$56.65

6

NUT-JAM

5020425

$23.99

7

WASHER,MULTILUBE

5430945

$1.59

8

ASM-ROLLER AND BUSHING

1321622

$32.37

9

BUTTON, GUIDE

5430445

$6.39

9

BUTTON, GUIDE

5430445

$6.39

10

Spacer [.050 mm]

5210754

Unavailable

10

Spacer [.025 mm]

5242981

Unavailable

10

Spacer [.020 mm]

5210752

Unavailable

10

Spacer [.032 mm]

5210753

Unavailable

11

Weight/Bushing (10-60)

1321587

$40.46

12

PIN-WEIGHT,HARDENED,1/4X2.00

7515105

$13.75

13

Bearing, Sleeve

3576502

$23.99

14

INSERT-MOVEABLE

5010188

$7.99

15

NUT, FLEXLOC

7541906

$3.19

16

Kit Wide Roller Spider Rebuild [Incl. 7-9,12,17,18]

2201169

$169.98

16

Asm., Drive Clutch Basic 108 [Incl. All Less 5,11]

1321880

Unavailable

17

Kit - Shim, Drive Clutch

2200387

$24.27

18

Pin, Roller

5133054

Unavailable
