- 800 RMK 159 BUILT BEFORE 1/01/02 - S03NM8CS
CRANKCASE - S03NM8CS (4977657765C04)

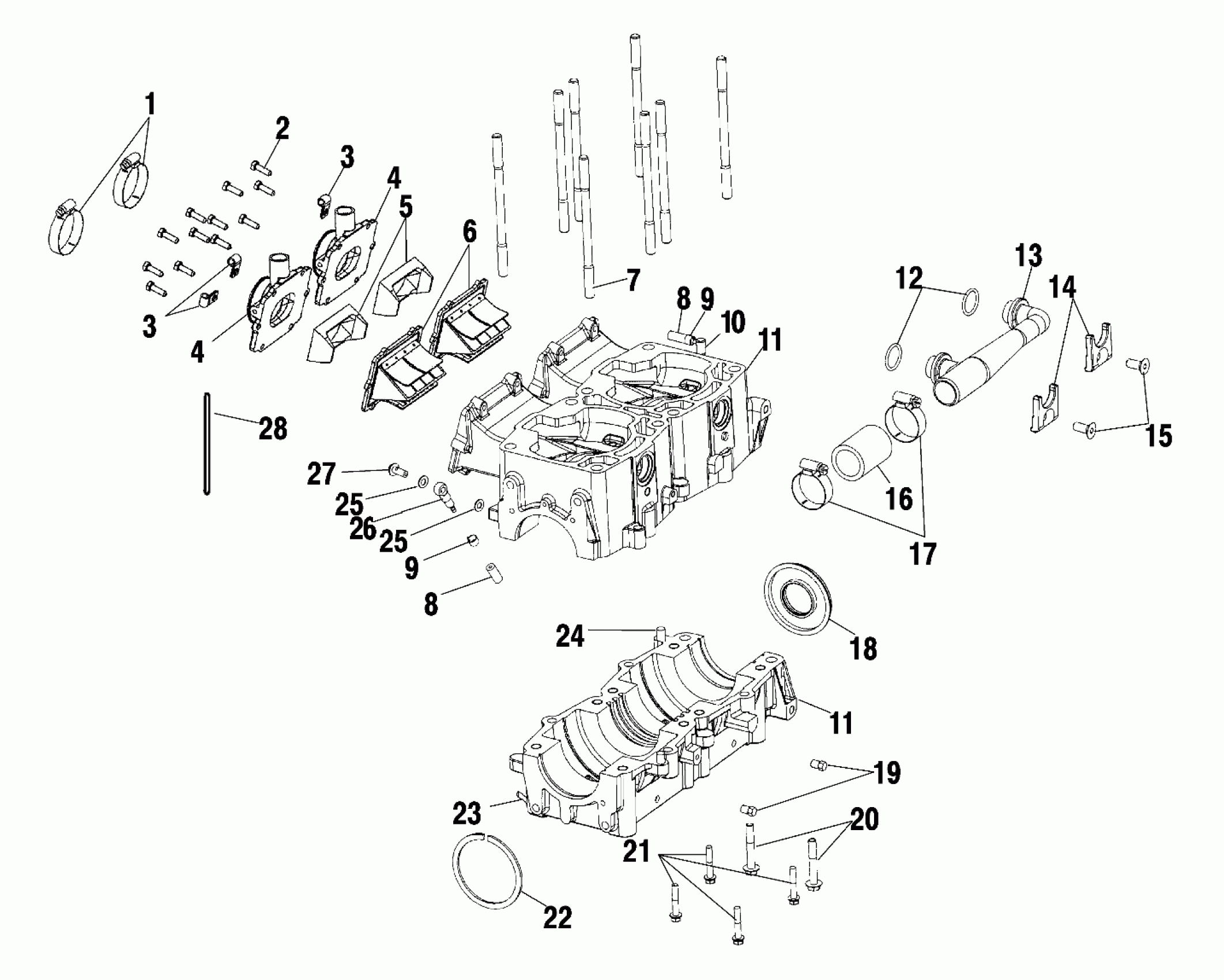

Polaris 800 RMK 159 BUILT BEFORE 1/01/02 - S03NM8CS CRANKCASE - S03NM8CS (4977657765C04) Diagram
#
Description
Price
1
Clamp, Hose
7080681
$9.59
2
SCREW
7517398
$3.19
3
CLAMP, HOSE
7080683
$2.39
3
CLAMP, HOSE
7080683
$2.39
4
Adapter, Carb
1253327
$104.99
4
Adapter, Carb
1253327
$104.99
5
Stuffer, Reed Block
5433151
Unavailable
6
Asm., Reed Valve
1201825
$134.99
7
Stud
5131677
Unavailable
8
LINE, FUEL
8450061-600
Unavailable
8
LINE, FUEL
8450061-600
Unavailable
9
Clamp
7080603
$1.59
9
Clamp
7080603
$1.59
10
VALVE-CHECK,90,1/8"7MM BORE
7051020
$32.37
11
Kit, Crankcase [Incl. 7,10,20,21,23,24]
2202336
Unavailable
11
Kit, Crankcase [Incl. 7,10,20,21,23,24]
2202336
Unavailable
12
O-Ring
5411125
Unavailable
13
Manifold, Inlet
5630610
$49.59
14
Retainer, Manifold
5243431
$14.75
15
Screw
7516736
Unavailable
16
Hose
8450068-04
Unavailable
17
CLAMP-HOSE, 1.750-SS
7080560
$11.19
18
Seal
5411394
$29.99
19
Plug
7051529
$15.99
20
Screw
7516919
Unavailable
21
SCREW
7516732
$1.59
22
Ring, Retaining
7710441
Unavailable
23
Fitting
7052322
Unavailable
24
PIN-DOWEL,M8 X 16 SS
7663001
$11.19
25
WASHER, FLAT
7555998
$1.49
25
WASHER, FLAT
7555998
$1.49
26
Valve, Check
7052160
Unavailable
27
Screw
7517319
$19.99
28
Retainer
7080654
$18.32
