CHASSIS - S03NM8CS (4977657765A04)

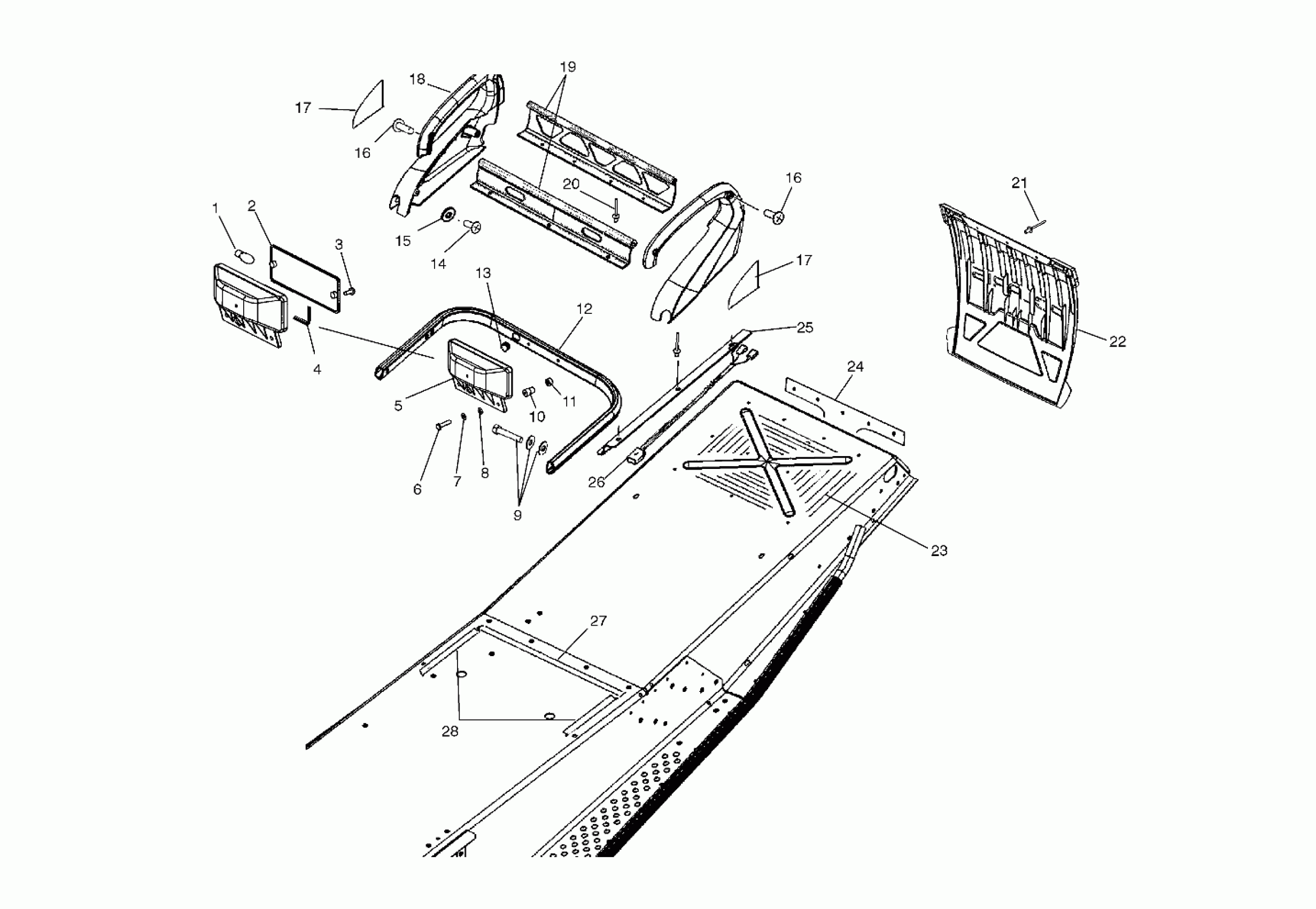

Polaris 800 RMK 159 BUILT BEFORE 1/01/02 - S03NM8CS CHASSIS - S03NM8CS (4977657765A04) Diagram
#
Description
Price
1
Bulb, Taillight
4030043
$6.46
2
Lens
4032014
$36.41
3
Screw
7518019
$2.63
4
Gasket, Lens
4032015
Unavailable
5
Asm., Taillight [Incl. 1-4]
2410307
$91.19
6
SCREW
7515140
$3.19
7
Washer, Lock
7552605
$5.27
8
Washer
7556033
$4.79
9
Washer, Flat
7558301
$1.49
9
WASHER, SPRING LOCK
7552801
$1.59
9
Screw
7512113
$3.99
10
Mount, Rubber
3021186
$11.99
11
WASHER, NYLON
7555916
$1.59
12
Bumper, Rear
2632461-309
Unavailable
13
Bushing, Snap
7081039
Unavailable
14
SCREW
7512094
$1.59
15
Washer, Flat
7558301
$1.49
16
SCREW
7517686
$1.59
16
SCREW
7517686
$1.59
17
Decal, Reflector, RH
7079668
$11.90
17
Decal, Reflector, LH
7079667
Unavailable
17
Decal, Reflector, RH
7079668
$11.90
17
Decal, Reflector, LH
7079667
Unavailable
18
Skirt, Snow, Black, LH
5434097-070
Unavailable
18
Skirt, Snow, Black, RH
5434098-070
$46.39
19
Rack, Front
5133058
$72.49
19
Rack, Rear
5133059
$149.99
20
RIVET-3/16-.090-.290
7661637
$1.49
21
RIVET
7621418
$1.49
22
Flap, Snow
5434356-1106
Unavailable
23
Protector, Bed, Front/Rear
5412033
$7.43
23
Protector, Bed, LH
5412074
$16.47
23
Protector, Bed, RH
5412134
$14.87
24
Support, Snow Flap
5812229
Unavailable
25
Rivet
7661079
Unavailable
25
Guard, Wire, Taillight [Incl. Rivets]
5245726
$11.59
26
Jumper Seat
2461065
Unavailable
27
Gasket, Seat Base
5812360
$1.83
28
Gasket, Seat Base
5812290
$1.49
