CHASSIS - S03NM8CS (4977657765A03)

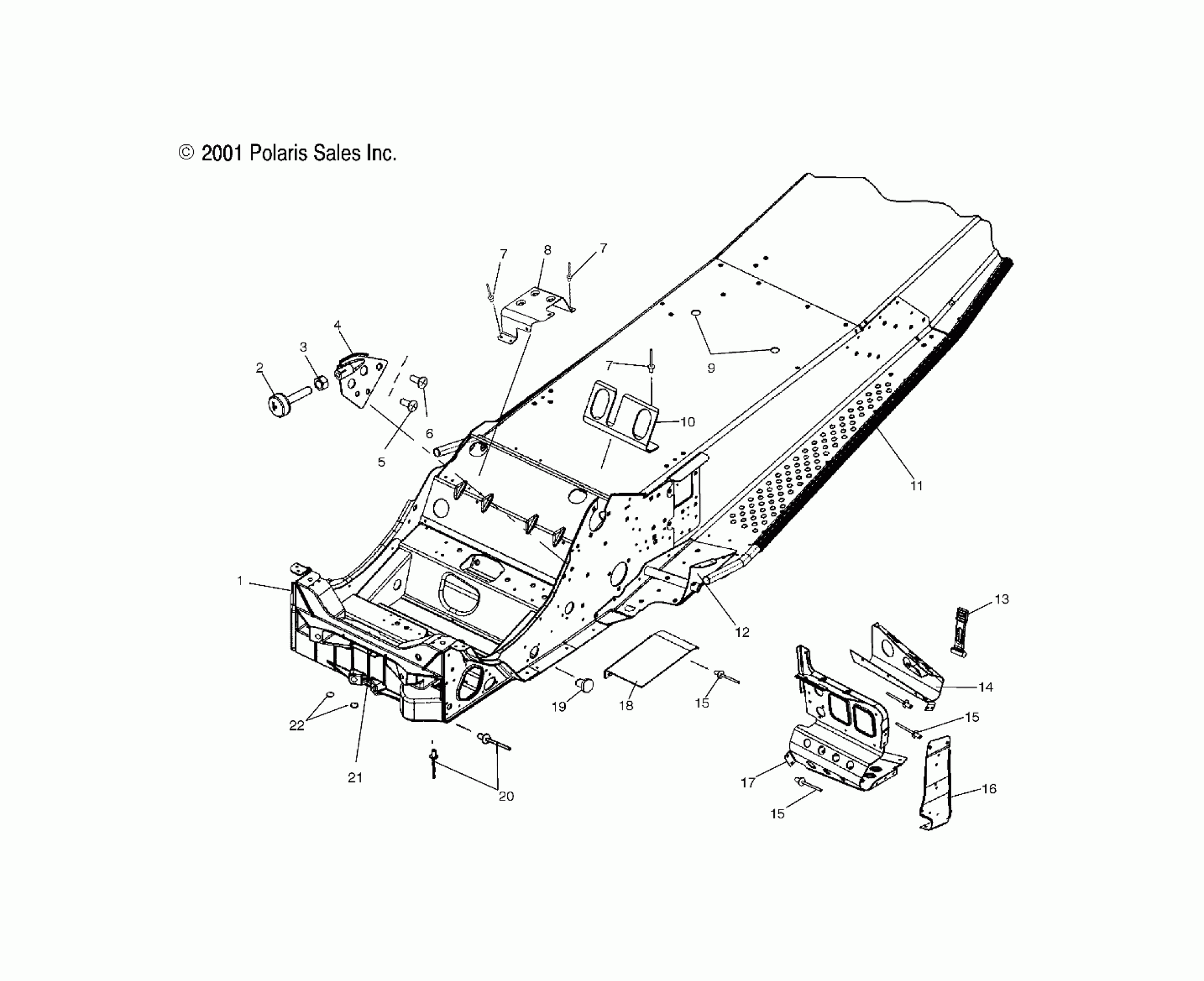

Polaris 800 RMK 159 BUILT BEFORE 1/01/02 - S03NM8CS CHASSIS - S03NM8CS (4977657765A03) Diagram
#
Description
Price
1
Asm., Chassis
1013823-309
$1,209.99
2
Stop, Torque
3110078
$36.41
3
NUT
7542404
$1.59
4
Stop, Torque
1013377
$27.19
5
Screw
7517854
$5.59
6
SCREW
7517632
$5.59
7
Rivet
7621432
$1.49
7
Rivet
7621432
$1.49
7
Rivet
7621432
$1.49
8
Bracket, Oil Tank
5245927
$13.10
9
Plug, Cap
7080592
Unavailable
10
Bracket, Air Box
5246177
$18.23
11
Gripper/DeIcer, LH
1240104
$309.99
11
Gripper/DeIcer, RH
1240105
Unavailable
12
Kit, Trailing Arm Support, LH
2202059
$213.00
12
Kit, Trailing Arm Support, RH
2202060
Unavailable
13
STRAP-AIRBOX TOP
5433150
$24.27
14
Mount, Console, Toe Clip, LH
5245457
Unavailable
14
Mount, Console, Toe Clip, RH
5245458
Unavailable
15
RIVET-3/16-.090-.290
7661637
$1.49
15
RIVET-3/16-.090-.290
7661637
$1.49
15
RIVET-3/16-.090-.290
7661637
$1.49
16
Support, Footrest, LH
5246310
$19.83
16
Support, Footrest, RH
5246311
$32.37
17
Footrest, LH
5245288
Unavailable
17
Footrest, RH
5242740
Unavailable
18
Guard, Adapter Drive
5221583
$11.59
19
PLUG, HOLE
7080416
$5.65
20
Rivet
7661130
$1.49
21
Bulkhead, Front
5132292
$115.99
22
Plug
7081076
$3.22
