CARBURETOR - S03NM8CS (4977657765C08)

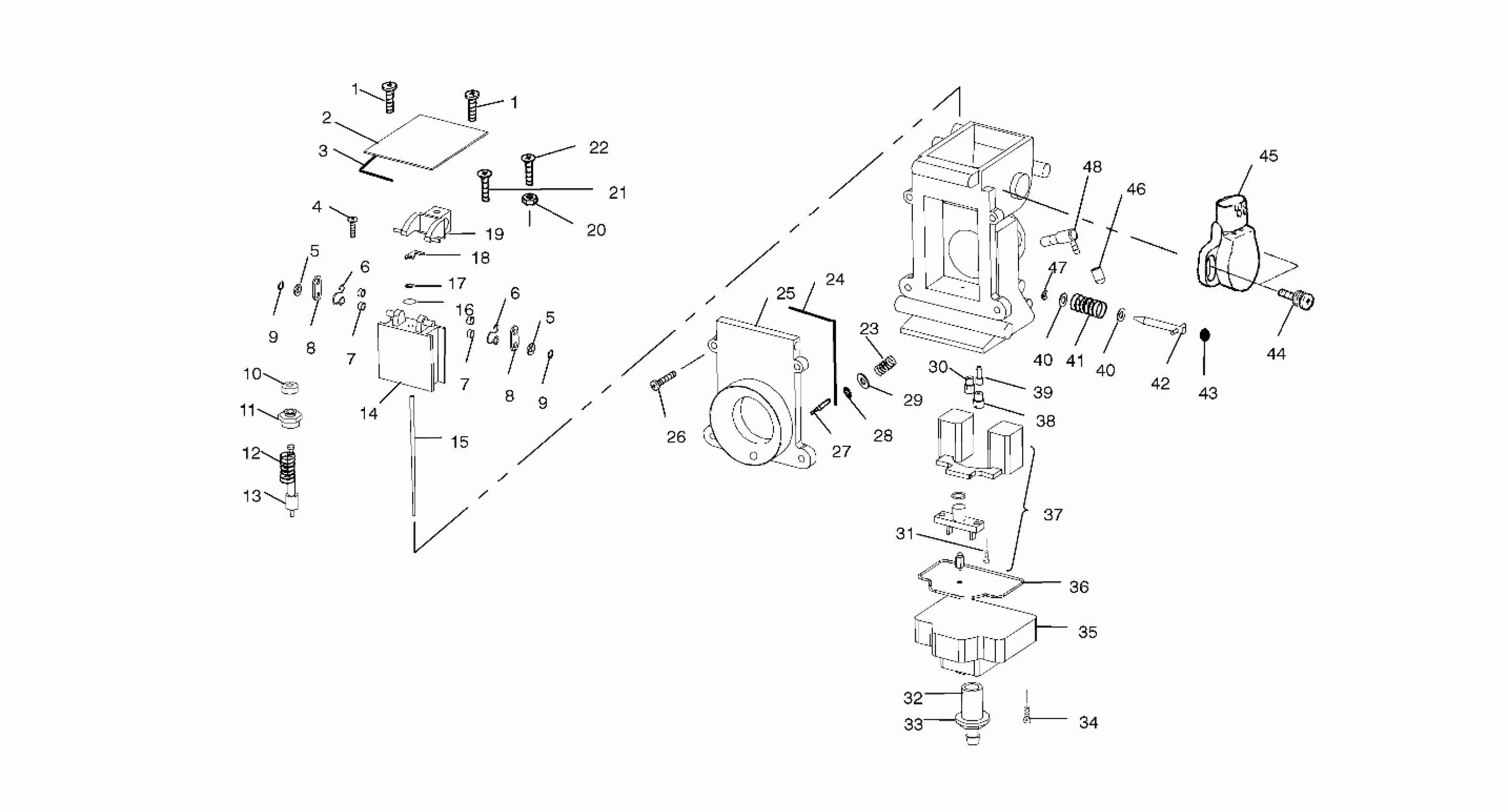

Polaris 800 RMK 159 BUILT BEFORE 1/01/02 - S03NM8CS CARBURETOR - S03NM8CS (4977657765C08) Diagram
#
-
Asm., Carburetor
1253464
$734.99
1
Screw
3130951
$3.99
1
Screw
3130951
$3.99
2
Cap, Top
3130872
Unavailable
3
Gasket
3130871
$20.22
4
Screw
3130844
$3.99
5
Packing
3130846
$4.79
5
Packing
3130846
$4.79
6
Clip
3130856
$8.79
6
Clip
3130856
$8.79
7
Ring
3130845
$8.89
7
Ring
3130845
$8.89
8
Plate
3130857
$7.27
8
Plate
3130857
$7.27
9
E-Ring
3130847
$8.89
9
E-Ring
3130847
$8.89
10
Cap, Rubber
3130831
$7.27
11
Holder, Guide
3130830
$32.37
12
Spring
3130829
$12.94
13
Plunger
3130828
$32.37
14
Cutaway [2.0]
3131252
$134.99
15
Needle, Jet [J8-9DGN05-57]
3131438
$32.37
16
Packing
3130867
$5.65
17
E-Ring
3130868
$8.89
18
Plate
3130843
$8.89
19
Lever, LH
3130855
$64.75
19
Lever, RH
3130849
$64.75
20
Ring
3130848
$32.37
21
Screw, LH
3130854
$3.19
22
Screw, RH
3130850
$4.79
23
Spring
3131371
Unavailable
24
O-Ring, Air Funnel, Long
3131356
$16.17
25
Asm., Funnel
3131439
$61.90
26
Screw
3130825
$3.19
27
Screw, Air
3131336
Unavailable
28
O-Ring
3130522
$5.65
29
Washer
3131372
$5.59
30
Jet, Main [350]
3130138
$7.27
31
Screw
3130860
$8.79
32
Bolt, Drain
3131248
Unavailable
33
O-Ring
3130863
$2.41
34
Screw
3130824
$3.19
35
Body, Float
3130858
$119.99
36
O-Ring
3130861
$12.13
37
Asm., Float
3131231
$134.99
38
Jet, Pilot [45]
3130068
$8.89
39
Jet, Starter [145]
3130769
$8.89
40
Washer, Starter
3130837
$3.19
40
Washer, Starter
3130837
$3.19
41
SPRING
3130836
$7.27
42
Asm., Adjuster
3130987
$20.22
43
Cap
3130986
$9.70
44
Screw [MAG Side]
3131010
$4.79
45
Asm., Sensor [MAG Side]
3131009
$259.03
46
CAP
3130479
$14.56
47
Packing
3130835
$2.41
48
VALVE-CHECK,90,1/8"7MM BORE
7051020
$32.37
