- 800 RMK 155 ALL OPTIONS (R02) - S16CM8
SUSPENSION, CONTROL ARMS and SPINDLE - S16CM8 ALL OPTIONS (600184)

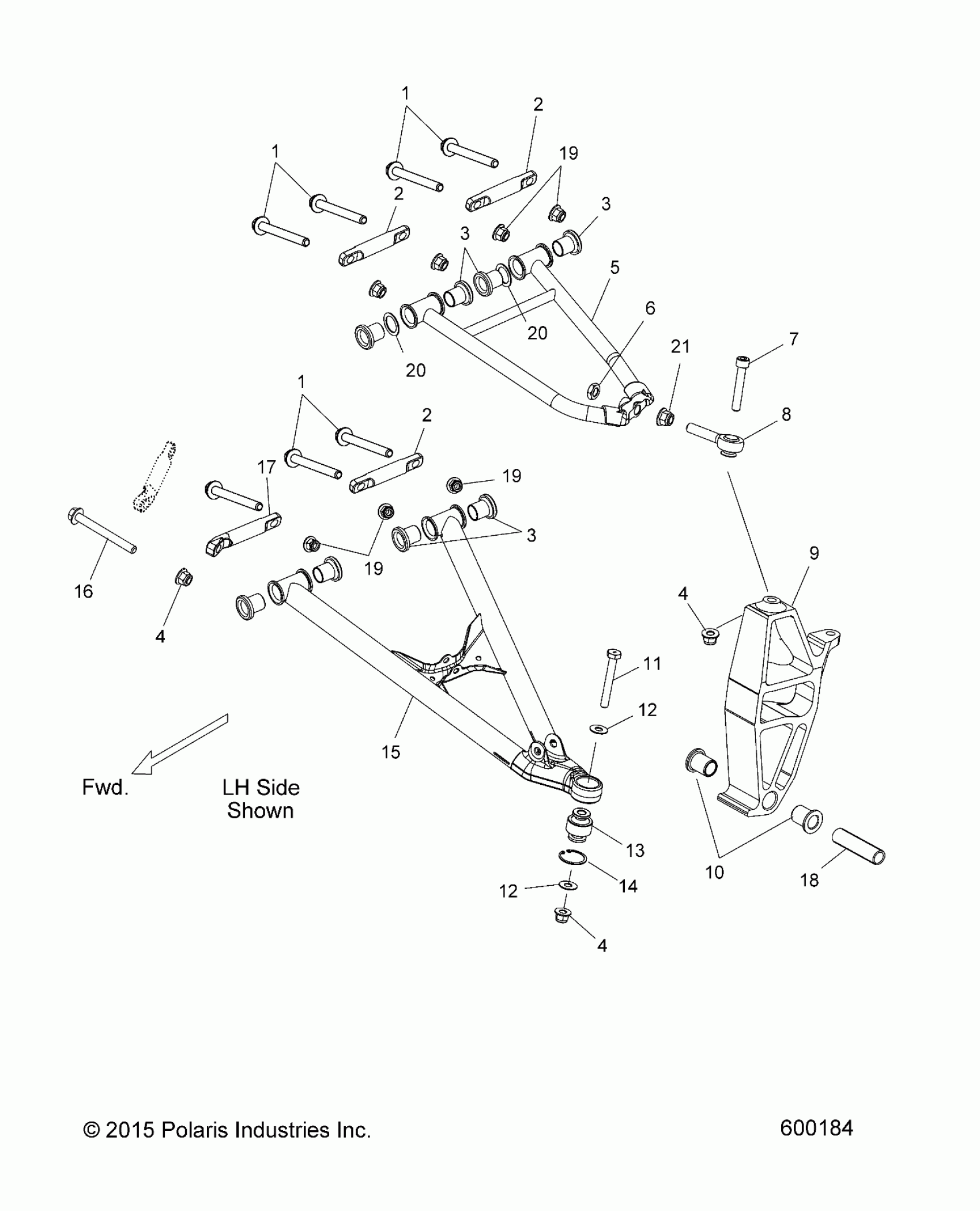

Polaris 800 RMK 155 ALL OPTIONS (R02) - S16CM8 SUSPENSION, CONTROL ARMS and SPINDLE - S16CM8 ALL OPTIONS (600184) Diagram
#
Description
Price
1
STUD, WHEEL
7519204
$19.99
1
STUD, WHEEL
7519204
$19.99
1
STUD, WHEEL
7519204
$19.99
2
SHAFT, PIVOT
5137700
$36.41
2
SHAFT, PIVOT
5137700
$36.41
2
SHAFT, PIVOT
5137700
$36.41
3
BUSHING, PIVOT
5437539
$2.39
3
BUSHING, PIVOT
5437539
$2.39
3
BUSHING, PIVOT
5437539
$2.39
4
NUT, NYLOK
7547423
$3.99
4
NUT, NYLOK
7547423
$3.99
4
NUT, NYLOK
7547423
$3.99
5
KIT, UPPER CONTROL ARM, LH, MATTE BLACK [INCL. 2-4,6,8,20,21]
2204930-458
Unavailable
5
KIT, UPPER CONTROL ARM, RH, MATTE BLACK [INCL. 2-4,6,8,20,21]
2204931-458
Unavailable
6
NUT, FLANGE
7547490
$3.99
7
SCREW
7519246
$3.99
8
ROD END
7061178
$48.56
9
ASM-SPINDLE,RH METRIC,RMK BJ [INCL. 10]
1823898
$242.84
9
ASM-SPINDLE,LH METRIC,RMK BJ [INCL. 10]
1823897
$242.84
10
BUSHING-SKI PIVOT
5438460
$15.99
11
SCREW
7519015
$5.59
12
WASHER
7556545
$3.19
12
WASHER
7556545
$3.19
13
KIT-BEARING SPHERICAL LWR 10MM
2204229
$31.99
14
RING, RETAINING
7710539
$2.39
15
KIT, LOWER CONTROL ARM, RH, MATTE BLACK [INCL. 2-4,13,14,17,19]
2204423-458
Unavailable
15
KIT, LOWER CONTROL ARM, LH, MATTE BLACK [INCL. 2-4,13,14,17,19]
2204422-458
Unavailable
16
SCREW
7518917
$4.79
17
SHAFT, PIVOT, LOWER CONTROL ARM, FRONT
5137701
$48.40
18
BUSHING
5136910
$7.99
19
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
19
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
19
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
20
WASHER, SPRING
7571605
$6.39
21
NUT
7547490
$3.99
