- 800 INDY XC 129 SC SELECT (R01) - S20EKP8PS
SUSPENSION, SHOCK, FRONT TRACK (7044878) - S20EKP8PS (601458)

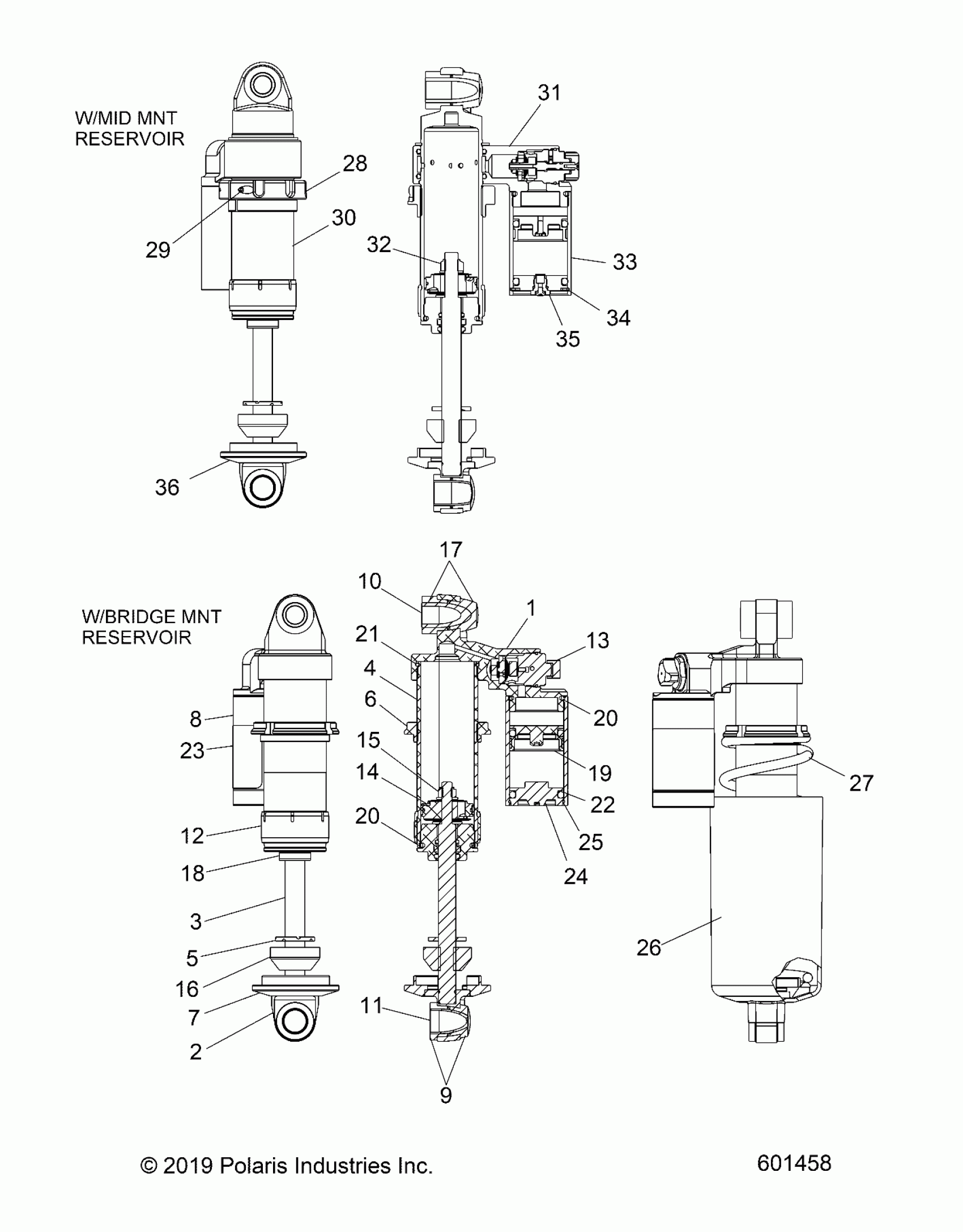

Polaris 800 INDY XC 129 SC SELECT (R01) - S20EKP8PS SUSPENSION, SHOCK, FRONT TRACK (7044878) - S20EKP8PS (601458) Diagram
#
Description
Price
-
SHOCK, FT, WE
7044878
$615.99
1
LOOP, BODY
1801079
$547.05
2
LOOP, SHAFT
1800773
$125.46
3
SHAFT, FT, SS
1801020
$109.99
4
BODY
1800775
$164.99
5
SCRAPER, ICE, SHAFT
1800776
$28.32
6
SPRING NUT
1800777
$91.97
7
RETAINER, SPRING CLIP, BLK
1800778
$47.60
8
BODY, RESERVOIR, 3.5L, BLK
1801080
$154.90
9
BUSHING
1800406
$5.65
10
SLEEVE, 1.685L
1800039
$15.99
11
SLEEVE, 1.150L
1800405
$28.32
12
WEAR BAND, SPRING
1800780
$64.99
13
ASM., ADJUSTER, HS-LS
1801021
$104.99
14
ASM., PISTON, .073 BLEED
1801017
$139.99
15
CRIMP NUT, 7/16"
1801000
$7.99
16
BUMP STOP, 1.58x.73
1800649
$43.56
17
BUSHING
1800033
$19.99
18
ASM., SEAL HEAD, 2.0
1800781
$169.43
19
PISTON, IFP
1800739
$44.99
20
O-RING BODY LOOP
1800030
$2.02
20
O-RING BODY LOOP
1800030
$2.02
21
O-RING 2-134
1800502
$1.99
22
O-RING, 2-324
1800184
$5.65
23
DECAL
1801081
$13.75
24
ASM., END CAP, CLR
1801044
$84.99
25
RING, WIRE
1800795
$7.27
26
SHIELD-SHOCK, W/E 2"
5452873
$28.32
27
SPRING-COMP 80/250#X8.0 2"MBLK
7045203-458
$62.92
28
SPRING NUT 2.0
1800936
$64.99
29
SCREW SOC CP
1801002
$3.99
30
BODY 2.0 MIDMNT BLK
1801019
$169.99
31
BRIDGE 2.0 ANO CLR
1801018
$144.99
32
NUT-7/16 CRIMP
1800164
$9.59
33
BODY-RES 3.34 BLK
1800779
$124.99
34
RING-SNAP
1800159
$5.59
35
ASM-END CAP 1.75 AV
1800740
$94.99
36
LOOP-SHAFT THD .625
1800415
$97.13
