SUSPENSION, SHOCK, FRONT TRACK (7043779) - S16CP8 ALL OPTIONS (49SNOWSHOCKFRONT7043779)

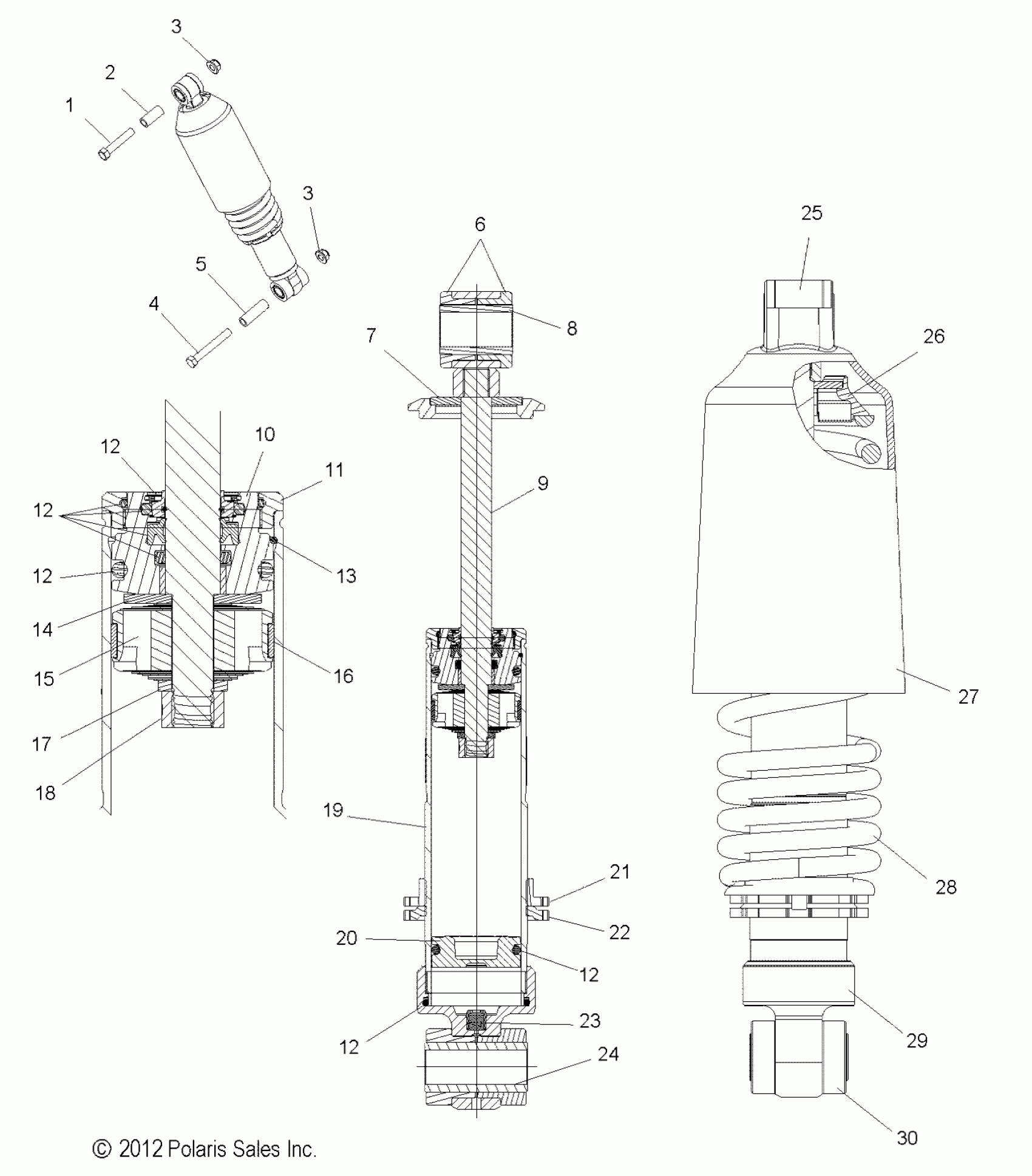

Polaris 800 INDY SP ALL OPTIONS (R02) - S16CP8 SUSPENSION, SHOCK, FRONT TRACK (7043779) - S16CP8 ALL OPTIONS (49SNOWSHOCKFRONT7043779) Diagram
#
Description
Price
-
DECAL, ZERO PRO
1500879
$13.75
-
SHOCK, FRONT TRACK, IFP
7043779
Unavailable
1
Screw
7515433
$1.59
2
BUSHING
5333905
$15.99
3
NUT-3/8-24 FLG LOC
7547263
$3.19
3
NUT-3/8-24 FLG LOC
7547263
$3.19
4
SCREW
7515417
$4.79
5
BUSHING
5333906
$15.99
6
BUSHING
1500898
$11.99
7
WASHER, CUSTOM
1500896
$19.99
8
SLEEVE
1500310
$23.99
9
SHAFT
1500888
Unavailable
10
ASM., BEARING
1500890
$117.84
11
BEARING CAP
1500891
$71.41
12
KIT, REBUILD
1500710
$101.17
12
KIT, REBUILD
1500710
$101.17
12
KIT, REBUILD
1500710
$101.17
12
KIT, REBUILD
1500710
$101.17
12
KIT, REBUILD
1500710
$101.17
13
WIRE, RETAINING RING
1500097
$4.79
14
Plate, Back-Up
1500015
$6.76
15
PISTON
1500702
Unavailable
16
BEARING, EXTERNAL
1500899
$19.99
17
Plate, Top-Out
1500017
$20.22
18
NUT, REVERSIBLE
1500892
$19.99
19
BODY
1500887
$109.99
20
ASM., FLOATING PISTON
1500893
$29.99
21
RING, PRELOAD
1500894
$32.37
22
RING, PRELOAD BACK-UP
1500895
$36.41
23
ASM., AIR VALVE
1500886
$40.46
24
SLEEVE
1500312
$23.99
25
EYELET, SHAFT
1500889
$40.46
26
RETAINER, SPRING CONE, CAST
5632166
$13.75
27
SHIELD, SPRING
5437525
Unavailable
28
SPRING, FT, BLACK
7043147-067
$64.75
29
BODY CAP
1500885
$39.99
30
BUSHING
1500897
$19.99
