- 800 INDY SP ALL OPTIONS (R02) - S16CP8
STEERING, LOWER - S16CP8 ALL OPTIONS (49SNOWSTEERINGLWR12800SB)

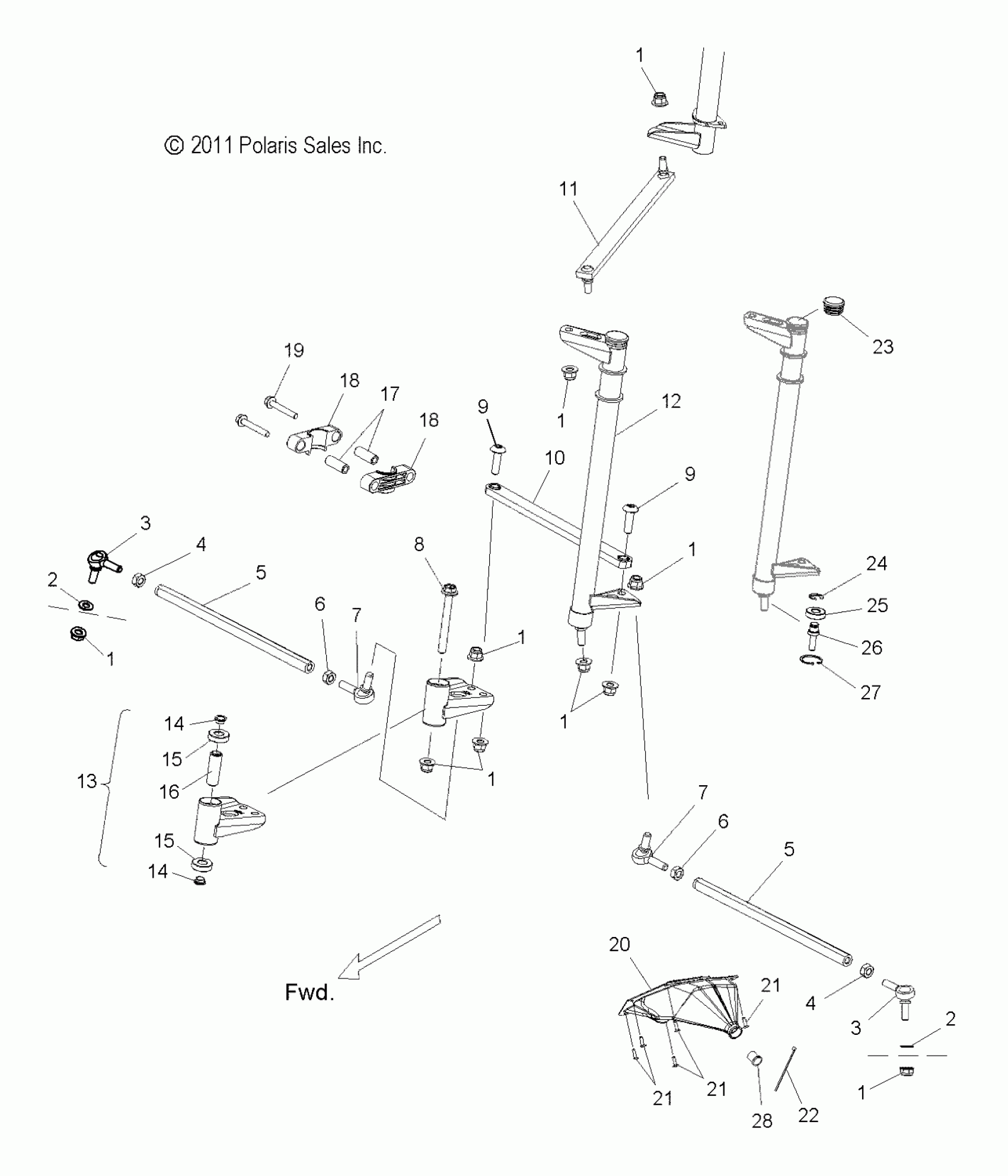

Polaris 800 INDY SP ALL OPTIONS (R02) - S16CP8 STEERING, LOWER - S16CP8 ALL OPTIONS (49SNOWSTEERINGLWR12800SB) Diagram
#
Description
Price
1
NUT
7547423
$3.99
1
NUT
7547423
$3.99
1
NUT
7547423
$3.99
1
NUT
7547423
$3.99
1
NUT
7547423
$3.99
1
NUT
7547423
$3.99
1
NUT
7547423
$3.99
1
NUT
7547423
$3.99
2
Washer, Flat
7555806
$1.49
2
Washer, Flat
7555806
$1.49
3
ROD END-M10X26.5 75DEG RH
7061166
$52.60
3
ROD END-M10X26.5 75DEG RH
7061166
$52.60
4
NUT-M10X1.5 ZOD
7547430
$3.17
4
NUT-M10X1.5 ZOD
7547430
$3.17
5
ROD-TIE
5336578
$24.27
5
ROD-TIE
5336578
$24.27
6
NUT, LH
7547431
$3.19
6
NUT, LH
7547431
$3.19
7
ROD END-M10X23 75DEG LH
7061165
$52.60
7
ROD END-M10X23 75DEG LH
7061165
$52.60
8
SCREW
7519016
$6.35
9
SCREW
7519017
$7.19
9
SCREW
7519017
$7.19
10
LINK, FIXED
7061176
$80.94
11
ASM., DRAG LINK, FIXED
1823392
$89.03
12
ASM., PITMAN ARM [INCL. 23-27]
1823417
$140.38
13
ASM, IDLER ARM [INCL. 14-16]
1823686
$119.99
14
BUSHING, REDUCER
5136662
$7.73
14
BUSHING, REDUCER
5136662
$7.73
15
Bearing, Ball
3514320
$15.99
15
Bearing, Ball
3514320
$15.99
16
SPACER, TUBE PITMAN/IDLER ARMS
5135452
$34.99
17
SPACER, BUSHING
5137796
$3.99
18
BUSHING, STEERING POST
5438492
$6.39
18
BUSHING, STEERING POST
5438492
$6.39
19
SCREW
7519242
$4.79
20
ASM., BOOT, TIE ROD, LH
2634230
$44.99
20
ASM., BOOT, TIE ROD, RH
2634231
$44.99
21
SCREW
7519092
$1.49
21
SCREW
7519092
$1.49
21
SCREW
7519092
$1.49
22
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
23
PLUG, TUBE
7081210
$3.99
24
Ring, Retaining
7710901
$7.19
25
Bearing, Ball
3514320
$15.99
26
STUD, SPACER
7519163
$39.99
27
RING-RET INT 1.125"
7710642
$2.39
28
BUSHING, TIE ROD BOOT
5439309
$11.99
