- 800 AXYS SKS 155 SC SELECT ALL OPTIONS (R01) - S20EFS8PS
CHASSIS, BULKHEAD ASM. - S20EFS8PS ALL OPTIONS (601289)

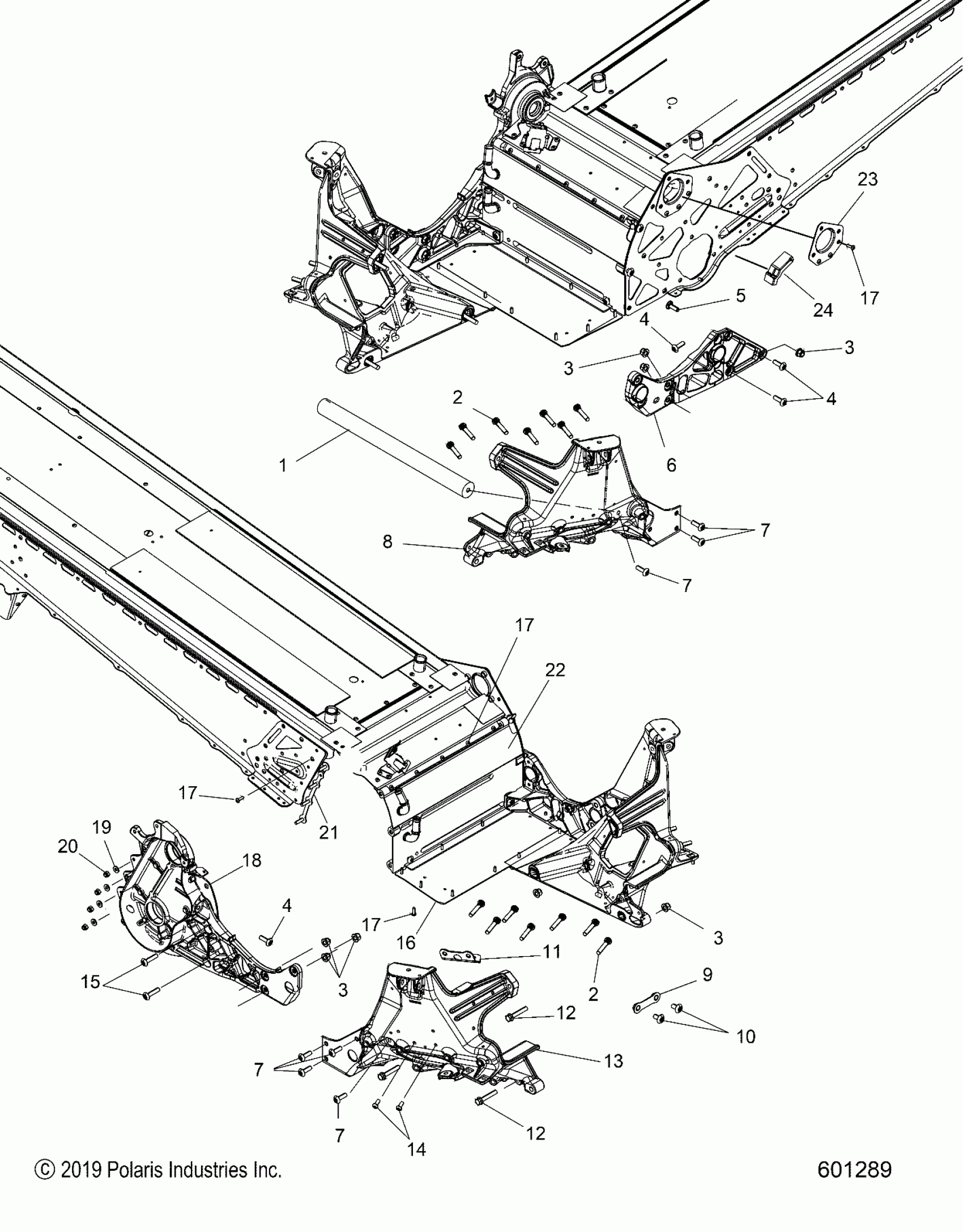

Polaris 800 AXYS SKS 155 SC SELECT ALL OPTIONS (R01) - S20EFS8PS CHASSIS, BULKHEAD ASM. - S20EFS8PS ALL OPTIONS (601289) Diagram
#
Description
Price
-
KIT, LORD, 406, 50 ML CARTRIDGE [ADHESIVE]
2204400
$74.99
-
KIT, LORD, 406 REPAIR KIT, 50 ML [ADHESIVE]
2204171
$294.99
-
KIT, LORD, MIX NOZZLES, 12 PIECE
2204172
$4.99
1
TUBE-CROSSOVER EXTRUDED
5140781
$106.49
2
STUD
7519204
$19.99
2
STUD
7519204
$19.99
3
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
3
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
3
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
3
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
4
SCR-M8X1.25X25 8.8TXTR ZOD P80
7518906
$3.19
4
SCR-M8X1.25X25 8.8TXTR ZOD P80
7518906
$3.19
4
SCR-M8X1.25X25 8.8TXTR ZOD P80
7518906
$3.19
5
SCR-RHCAR-M8X1.25X25 8.8 ZOD
7520297
$4.99
6
ASM., BRACE, LOWER, LH [REQUIRES ADHESIVE][INCL. SLEEVE]
1019183
$139.99
7
SCR-TXTH-M8X1.25X25 8.8 ZODP30
7519070
$6.39
7
SCR-TXTH-M8X1.25X25 8.8 ZODP30
7519070
$6.39
7
SCR-TXTH-M8X1.25X25 8.8 ZODP30
7519070
$6.39
7
SCR-TXTH-M8X1.25X25 8.8 ZODP30
7519070
$6.39
8
ASM., CLIP W/STUD, LH [INCL. STUDS][REQUIRES ADHESIVE]
1019665
$334.99
9
ASM., STUD PLATE
1020829
$15.99
10
SCR-TXTH-M8X1.25X15 8.8ZOD P80
7519109
$1.59
11
ASM., BRKT., IDLER, TOP
1019666
$28.32
12
SCR-M8X1.25X45-HX/FL-Y
7516732
$1.59
12
SCR-M8X1.25X45-HX/FL-Y
7516732
$1.59
13
ASM., CLIP W/STUD, RH [INCL. STUDS][REQUIRES ADHESIVE]
1019182
$309.99
14
SCR-TXPH-M6X1.0X15 GR5 ZOD NYL
7518656
$3.99
15
SCR-TXTH M8X1.25X35 8.8ZOD P80
7519049
$7.19
16
FLOOR, BULKHEAD
5256849
$29.03
17
RIVET-3/16-.090-.290
7661637
$1.49
17
RIVET-3/16-.090-.290
7661637
$1.49
17
RIVET-3/16-.090-.290
7661637
$1.49
17
RIVET-3/16-.090-.290
7661637
$1.49
18
ASM-CHAINCASE,INTERMD,RMK [REQUIRES ADHESIVE][INCL. BEARINGS, SEALS]
1333255
$319.99
19
WASHER-6.2X14.25X2 ZC
7556588
$2.39
20
NUT-HEX-M6X1.0 8 ZOD NYL
7547505
$2.39
21
ASM., STUD PLATE
1020066
$16.99
22
COOLER, BULKHEAD
1240874
$355.99
23
FLANGETTE-3BOLT 0MM OFFSET
5258020
$12.79
24
PAD-40x90
5814424
$9.70
