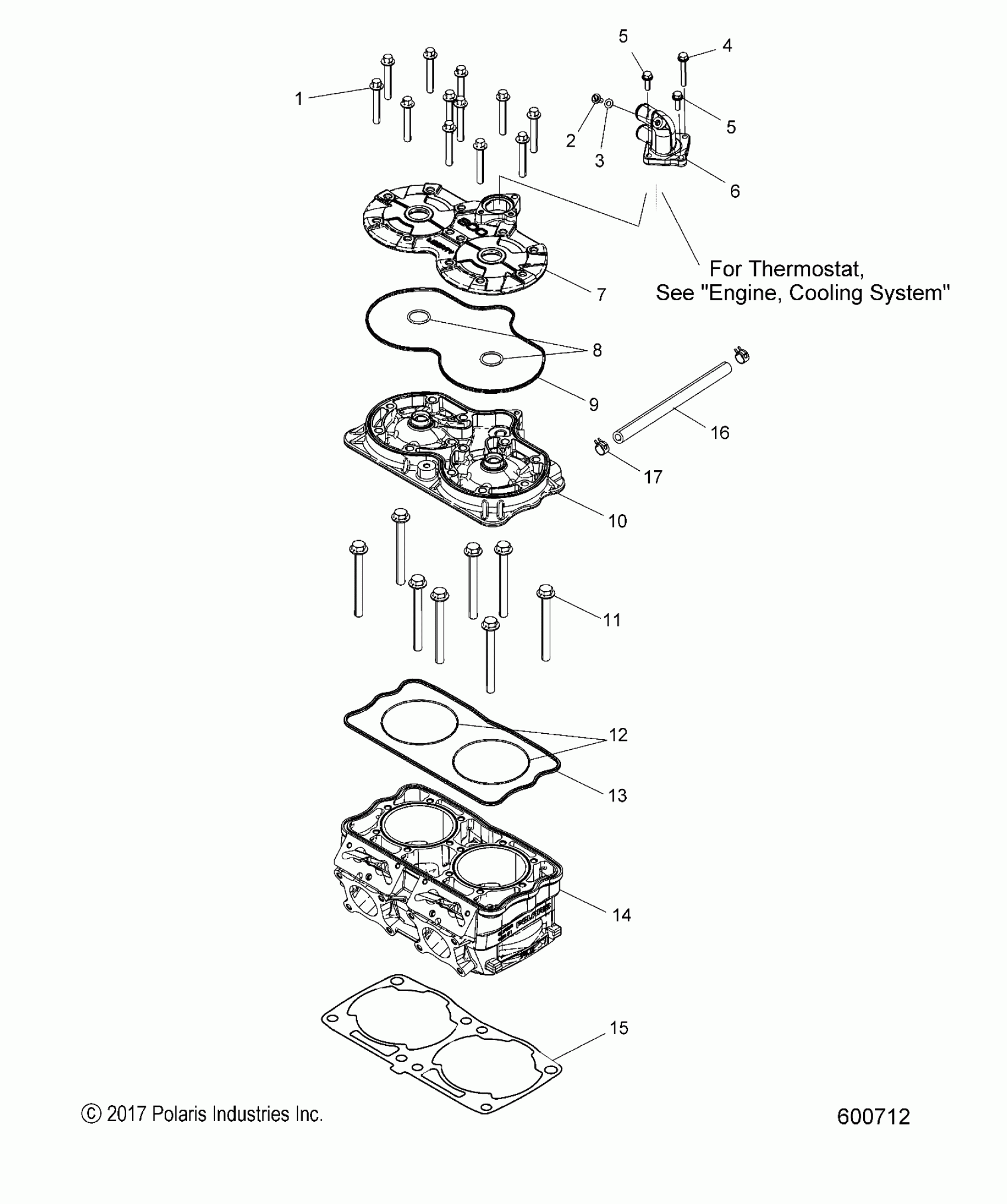

Polaris 800 AXYS SKS 155 ALL OPTIONS (R01) - S18EFS8P ENGINE, CYLINDER - S18EFS8P ALL OPTIONS (600045) Diagram

Description

Price

SCR-M8X1.25X55,HX/FL-Y W/ NYSL

7517533

$4.79

SCR-M6X1.0X13,SL/HX/FL-Z,BLEED

7520470

$4.79

WASHER, FLAT

7555998

$1.49

SCR-M6X1.0X45,HX/FL-Y

7516825

$5.59

SCR-M6X1.0X20-HX/FL-Y/D

7516822

$2.39

SCR-M6X1.0X20-HX/FL-Y/D

7516822

$2.39

COVER, THERMOSTAT

5140362

$29.03

COVER-HEAD 85 TWIN CH BP MACH

5140277

$67.76

O-RING

5411411

$1.49

SEAL, GLAND HEAD

5415812

$12.99

HEAD, CYLINDER, 85 CH BYPASS HBV

3023109

$299.99

SCR-M10X1.50X100MM, HXFL, 10.9

7518774

$6.39

O-RING 3.664X3.804X07,HI-TMP

5413319

$20.22

SEAL, GLAND CYLINDER

5413288

$29.99

CYLINDER, SDI, MONO, 3S EV

3022828

$1,379.99

GASKET, CYLINDER BASE, OFFSET

5814279

$36.41

HOSE, COOLANT

5415236

$6.99

CLAMP, HOSE, 14.0/10

7082198

$2.39
