- 800 AXYS SKS 146 ALL OPTIONS (R01) - S18ELS8P
SUSPENSION, RAIL ASM. - S18ELS8P ALL OPTIONS (600721)

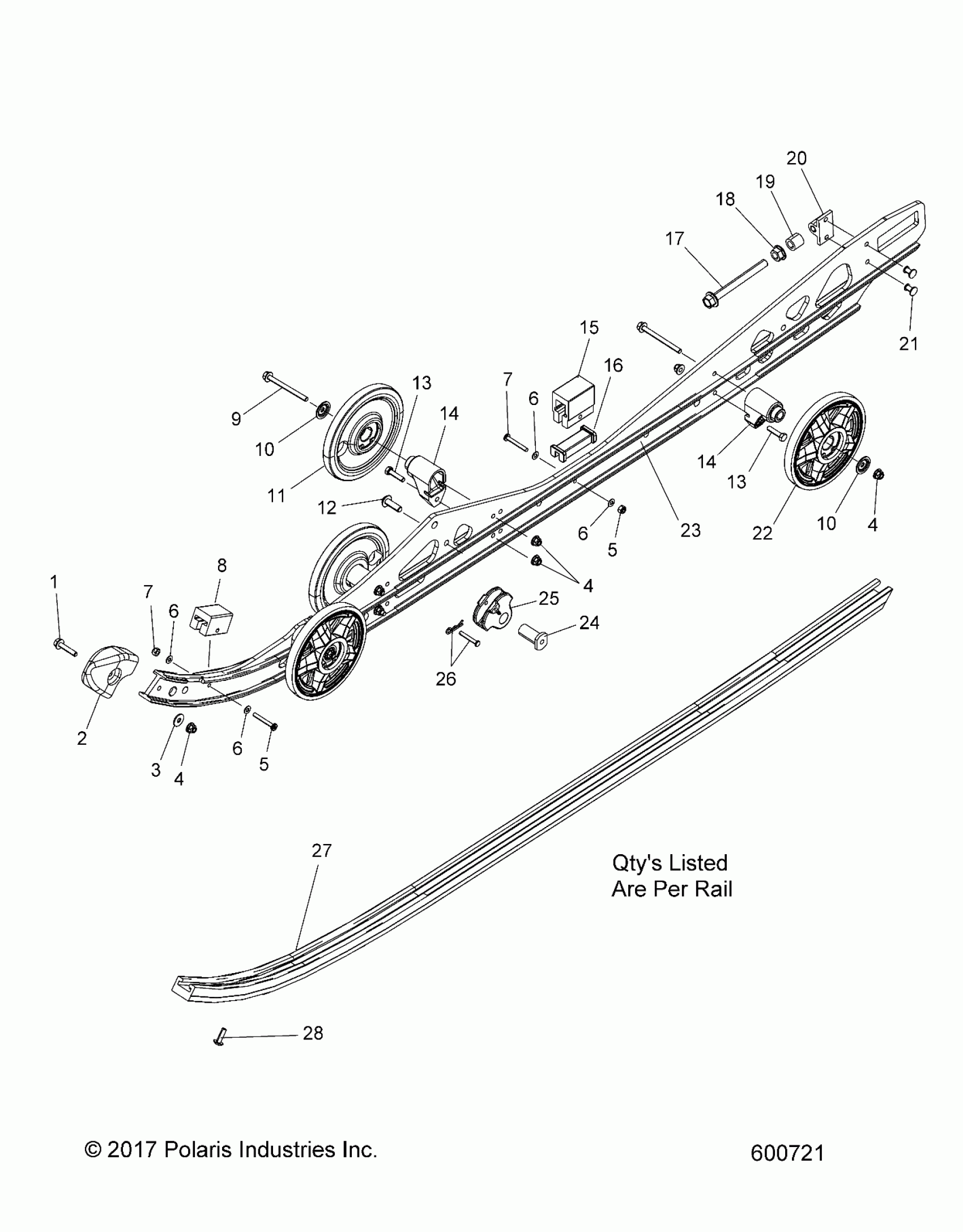

Polaris 800 AXYS SKS 146 ALL OPTIONS (R01) - S18ELS8P SUSPENSION, RAIL ASM. - S18ELS8P ALL OPTIONS (600721) Diagram
#
1
SCREW
7518993
$2.39
2
CAP, RAIL TIP
5438374
$20.22
3
WSHR-6.4X18.0X1.6 ZPB
7556064
$5.22
4
NUT-M6X1.0, FLG-NYLOC-OLIVE D
7547339
$1.49
4
NUT-M6X1.0, FLG-NYLOC-OLIVE D
7547339
$1.49
4
NUT-M6X1.0, FLG-NYLOC-OLIVE D
7547339
$1.49
5
Screw
7510504
$6.76
5
Screw
7510504
$6.76
6
Washer
7555783
$3.99
6
Washer
7555783
$3.99
6
Washer
7555783
$3.99
6
Washer
7555783
$3.99
7
BUMPER, JOUNCE, FRONT
5521499
$8.89
7
BUMPER, JOUNCE, FRONT
5521499
$8.89
8
NUT
7541925
$1.49
9
SCR-HXFL- M6X1.0X70 10.9 ZOD
7519908
$4.79
10
WASHER, OFFSET
7556799
$3.19
10
WASHER, OFFSET
7556799
$3.19
11
ASM., WHEEL, PLAIN
1590457
$35.99
11
BEARING, NEEDLE
3514384
$19.84
11
RING-RETAINING
7710444
$8.79
12
SCR-M8X1.25X25 8.8TXTR ZOD P80
7518906
$3.19
13
Screw
7517510
$4.79
13
Screw
7517510
$4.79
14
BLOCK, WHEEL MOUNT
5632808
$24.27
14
BLOCK, WHEEL MOUNT
5632808
$24.27
15
BUMPER-JOUNCE,REAR
5521498
$8.89
16
LINER-BUMPER
5432946
$9.70
17
SCR-HXFL-M10X1.5X100 8.8 ZOD
7519167
$11.99
18
NUT, HEX FLANGED
7547017
$5.59
19
SPACER
5137152
$3.19
20
BLOCK-IDLER BOLT ADJ METRIC
5136570
$34.99
21
RIVET-FLAT HD-1/4 X .575
7621501
$2.39
22
ASM-WHEEL LWT 5.62
1590511
$38.39
22
BEARING-.7874X1.6535X.4724,NTN
3514384
$19.84
22
RING-RETAINING
7710444
$8.79
23
ASM., RAIL, LH, BASIC 146, NAT. [INCL. 20,21]
1543814-309
$674.99
23
ASM., RAIL, RH, BASIC 146, NAT. [INCL. 20,21]
1543815-309
$674.99
23
ASM., RAIL, LH, BASIC 146, BLACK [INCL. 20,21]
1543814-067
$674.99
23
ASM., RAIL, RH, BASIC 146, BLACK [INCL. 20,21]
1543815-067
$674.99
23
ASM., RAIL, LH, BASIC 146, RED [INCL. 20,21]
1543814-293
$664.99
23
ASM., RAIL, RH, BASIC 146, RED [INCL. 20,21]
1543815-293
$674.99
23
ASM., RAIL, LH, BASIC 146, WHITE [INCL. 20,21]
1543814-599
$674.99
23
ASM., RAIL, RH, BASIC 146, WHITE [INCL. 20,21]
1543815-599
$674.99
23
ASM., RAIL, LH, BASIC 146, LIME SQUEEZE [INCL. 20,21]
1543814-630
$674.99
23
ASM., RAIL, RH, BASIC 146, LIME SQUEEZE [INCL. 20,21]
1543815-630
$674.99
23
ASM., RAIL, LH, BASIC 146, ORANGE BURST [INCL. 20,21]
1543814-647
$674.99
23
ASM., RAIL, RH, BASIC 146, ORANGE BURST [INCL. 20,21]
1543815-647
$674.99
23
ASM., RAIL, LH, BASIC 146, VELOCITY BLUE [INCL. 20,21]
1543814-689
$674.99
23
ASM., RAIL, RH, BASIC 146, VELOCITY BLUE [INCL. 20,21]
1543815-689
$674.99
24
SHAFT-SPRING ROLLER
5136687
$10.51
25
GUIDE-SPRING SQUARE
5434334
$28.32
26
PIN-CLEVIS 3/16X1 1/4
7661123
$3.99
26
PIN-HITCH, 3/32-Y
7661644
$2.39
27
HI-FAX,.45/74",SERVICE,BLK
5521633-070
$40.46
28
SCREW
7518976
$3.19
