- 800 AXYS RMK ASSAULT 155 ALL OPTIONS (R01) - S18EFT8P
SUSPENSION, SHOCK, REAR TRACK, W/RES. - S18EFT8P ALL OPTIONS (600205)

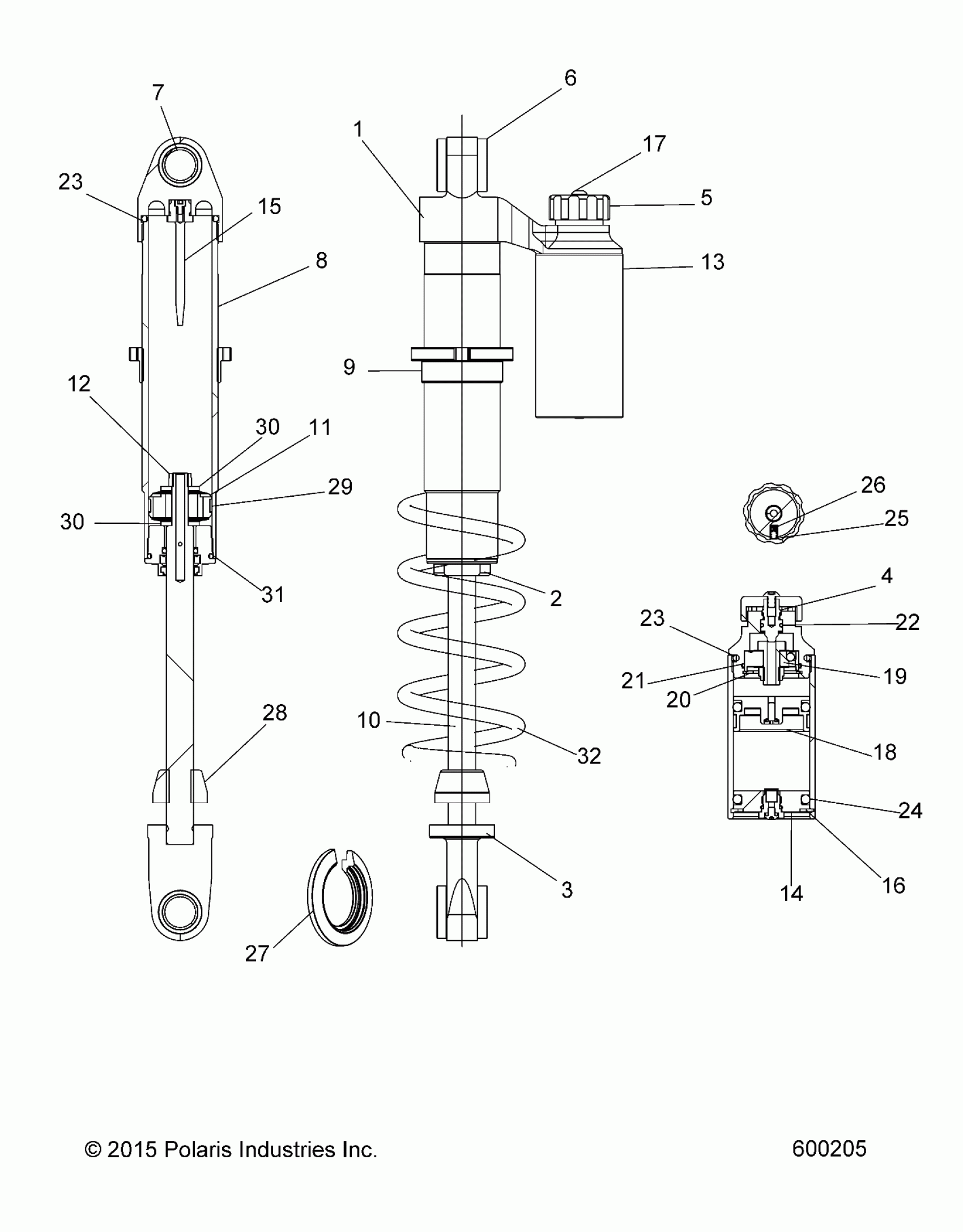

Polaris 800 AXYS RMK ASSAULT 155 ALL OPTIONS (R01) - S18EFT8P SUSPENSION, SHOCK, REAR TRACK, W/RES. - S18EFT8P ALL OPTIONS (600205) Diagram
#
Description
Price
-
SHOCK, RT
7044344
$594.99
1
PIGGYBACK, 90DEGREE
1800413
$129.99
2
ASM., SEAL HEAD
1800414
$153.79
3
LOOP, SHAFT
1800747
$87.13
4
STUD, CLICKER
1800352
$31.99
5
KNOB, CLICKER, BLK
1800418
$89.03
6
BUSHING
1800406
$5.65
7
SLEEVE
1800405
$28.32
8
BODY, RT, BLACK
1800748
$119.99
9
SPRING NUT
1800402
$31.99
10
SHAFT, NDL, 8.50L, RT
1800751
$183.95
11
PISTON, CONVEX, .063 BLEED
1800001
$125.46
12
NUT, CRIMP
1800031
$3.99
13
BODY, RESERVOIR
1800419
$93.08
14
ASM., END CAP 1.750AV
1800740
$94.99
15
ASM., NEEDLE BOLT, SHORT
1800749
$33.87
16
RING, SNAP
1800159
$5.59
17
SCREW, BTNHD
1800357
$3.19
18
ASM., IFP PISTON 1.75BLD
1800739
$44.99
19
ASM., P/B CLKR PISTON
1800750
$79.99
20
RING, SNAP, CLICKER
1800359
$3.86
21
O-RING
1800358
$1.49
22
O-Ring, Stud
1800215
$7.68
23
O-RING BODY LOOP
1800030
$2.02
23
O-RING BODY LOOP
1800030
$2.02
24
O-RING
1800184
$5.65
25
BALL, D-TENT
1800127
$6.39
26
SPRING-COMP .025X.3, 40.5#
1800128
$10.39
27
RETAINER, SPRING
1800538
$48.40
28
BUMPER, JOUNCE
1800462
$32.37
29
BAND, WEAR
1800297
$34.99
30
WASHER
1800204
$3.99
30
WASHER
1800204
$3.99
31
O-RING
1800027
$2.02
32
SPRING, COMP., 210# BLACK [SNOW CHECK]
7043714-458
$99.99
32
SPRING, COMP., 210# WHITE [STOCK]
7043714-133
$149.99
