- 800 AXYS RMK ASSAULT 155 ALL OPTIONS (R01) - S18EFT8P
SUSPENSION, CONTROL ARMS and SPINDLE - S18EFT8P ALL OPTIONS (C603115)

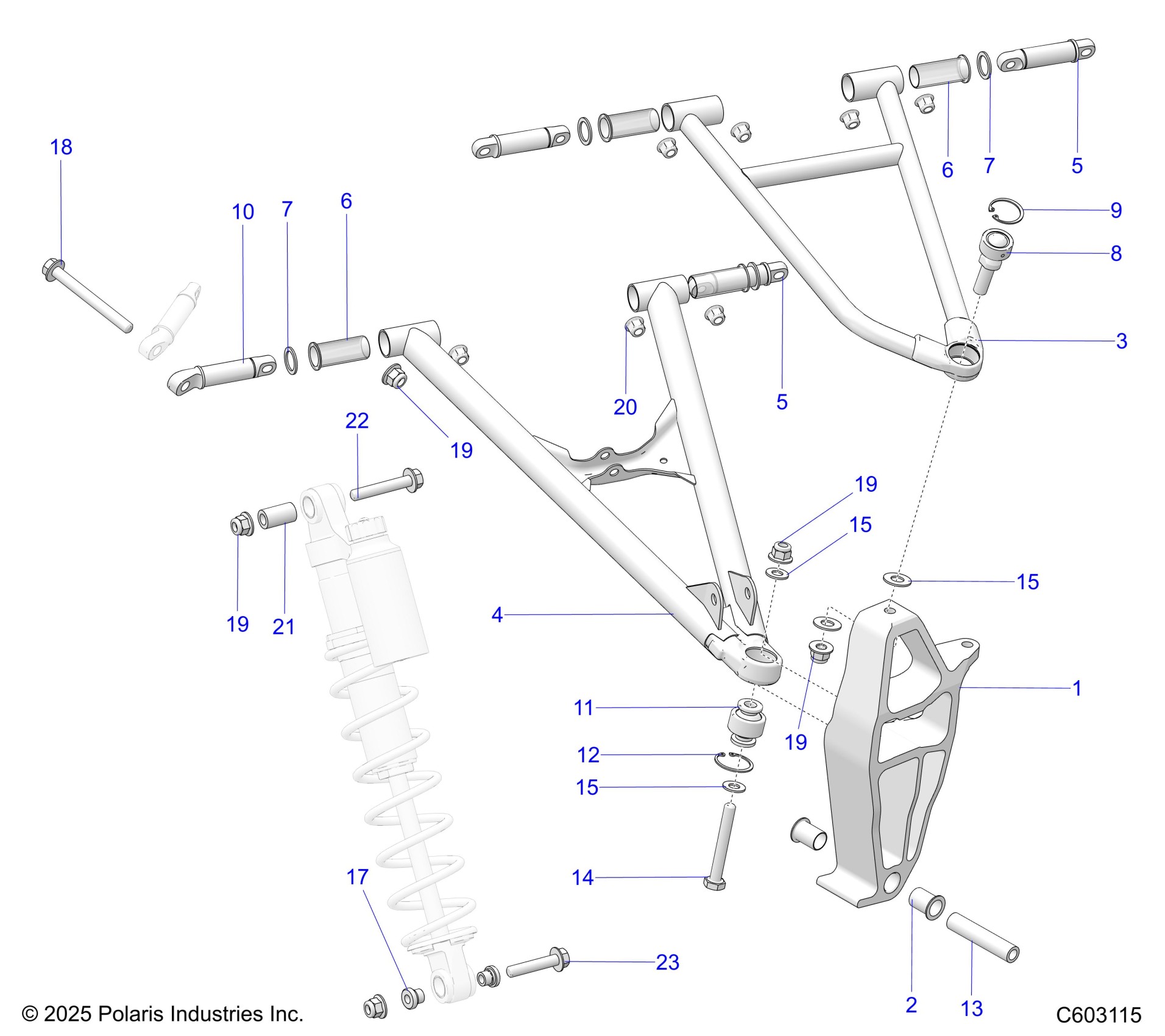

Polaris 800 AXYS RMK ASSAULT 155 ALL OPTIONS (R01) - S18EFT8P SUSPENSION, CONTROL ARMS and SPINDLE - S18EFT8P ALL OPTIONS (C603115) Diagram
#
1
ASM-SPINDLE RMK,ASLT,LH [INCLUDES QTY 2 OF 2]
1824240
$242.05
1
ASM-SPINDLE RMK,ASLT,RH [INCLUDES QTY 2 OF 2]
1824241
$242.05
1
ASM-SPINDLE RMK,ASLT,LH RED [INCLUDES QTY 2 OF 2] [RED]
1824240-293
$339.99
1
ASM-SPINDLE RMK,ASLT,RH RED [INCLUDES QTY 2 OF 2] [RED]
1824241-293
$339.99
1
ASM-SPINDLE RMK,ASLT,LH BLK [INCLUDES QTY 2 OF 2] [BLACK]
1824240-458
$339.99
1
ASM-SPINDLE RMK,ASLT,RH BLK [INCLUDES QTY 2 OF 2] [BLACK]
1824241-458
$339.99
1
ASM-SPINDLE RMK,ASLT,LH VDBLU [INCLUDES QTY 2 OF 2] [VELOCITY BLUE]
1824240-619
$339.99
1
ASM-SPINDLE RMK,ASLT,RH VDBLUE [INCLUDES QTY 2 OF 2] [VELOCITY BLUE]
1824241-619
Unavailable
1
ASM-SPINDLE RMK,ASLT,LH ORG [INCLUDES QTY 2 OF 2] [ORANGE BURST]
1824240-647
$339.99
1
ASM-SPINDLE RMK,ASLT,RH ORG [INCLUDES QTY 2 OF 2] [ORANGE BURST]
1824241-647
$339.99
2
BUSHING-SKI PIVOT
5438460
$15.99
3
ASM-UCA MOLY LH BSC BLK [INCLUDES 5-9]
1824337-458
Unavailable
3
ASM-UCA MOLY RH BSC BLK [INCLUDES 5-9]
1824338-458
Unavailable
3
WELD-UCA MOLY LH MBLK [UCA ONLY]
1824171-458
$189.99
3
WELD-UCA MOLY RH MBLK [UCA ONLY]
1824172-458
$189.99
4
ASM-LCA LH MBLK [INCLUDES 5-7 & 10-12]
1824379-458
Unavailable
4
ASM-LCA RH MBLK [INCLUDES 5-7 & 10-12]
1824380-458
Unavailable
4
WELD-LCA LH MBLK [LCA ONLY]
1824169-458
$189.99
4
WELD-LCA RH MBLK [LCA ONLY]
1824170-458
$189.99
5
SHAFT-PIVOT
5139521
Unavailable
5
SHAFT-PIVOT
5139521
Unavailable
6
BUSHING-PIVOT
5450297
$3.19
6
BUSHING-PIVOT
5450297
$3.19
7
WSHR-18.2X25.X1.6 THICK ZOD
7556758
$3.19
7
WSHR-18.2X25.X1.6 THICK ZOD
7556758
$3.19
8
BALL JOINT-M10X1.25X31 30 DEG
7061219
$69.99
9
RING-RET INT 1.125"
7710642
$2.39
10
SHAFT-PIVOT LCA FRT
5139607
Unavailable
11
KIT-BEARING SPHERICAL LWR 10MM
2204229
$31.99
12
RING-RETAINING,1.25 ID HSNG
7710539
$2.39
13
BUSHING-15.88X10.13X76.20
5136910
$7.99
14
SCR-HXFL-M10X1.25X75 10.9 ZOD
7519286
$7.19
15
WSHR-10.5X24X1.2446 ZOD HRD
7556545
$3.19
15
WSHR-10.5X24X1.2446 ZOD HRD
7556545
$3.19
15
WSHR-10.5X24X1.2446 ZOD HRD
7556545
$3.19
17
SPACER-10.2IDX12.62OD
5136530
$4.79
18
SCR-M10X1.5X95 HX FLG 10.9 ZOD
7518917
$4.79
19
NUT-M10X1.5 HFN NYLOC ZOD
7547423
$3.99
19
NUT-M10X1.5 HFN NYLOC ZOD
7547423
$3.99
19
NUT-M10X1.5 HFN NYLOC ZOD
7547423
$3.99
19
NUT-M10X1.5 HFN NYLOC ZOD
7547423
$3.99
20
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
21
BUSHING-M10X17.5X30
5137360
$3.99
22
SCR-M10X1.5X60-8.8 HFS ZOD
7518941
$3.99
23
SCR-M10X1.5X50 8.8 HX/FL ZOD
7518971
$6.39
