- 800 AXYS PRO RMK/LE 163 ALL OPTIONS (R02) - S16ED8/EH8
SUSPENSION, SHOCK, REAR TRACK - S16ED8/EH8 (600053)

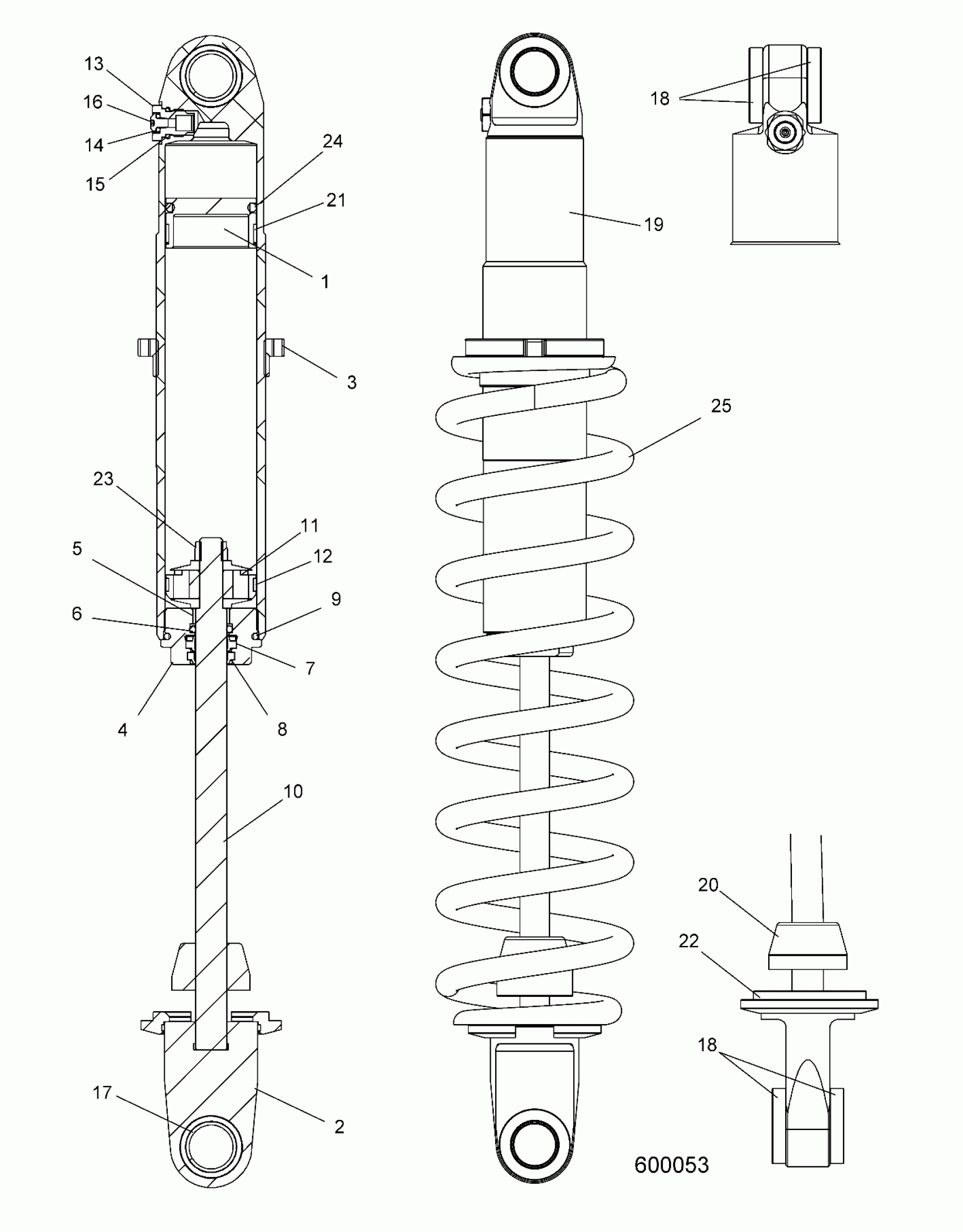

Polaris 800 AXYS PRO RMK/LE 163 ALL OPTIONS (R02) - S16ED8/EH8 SUSPENSION, SHOCK, REAR TRACK - S16ED8/EH8 (600053) Diagram
#
Description
Price
-
SHOCK, REAR TRACK, WALKER EVANS, COIL-OVER
7044250
Unavailable
1
PISTON, IFP
1800348
$94.99
2
LOOP, SHAFT
1800726
$137.60
3
ADJUSTER, SPRING
1800724
$43.56
4
SEAL HEAD
1800545
$140.38
5
BUSHING, SHAFT, .50
1800544
$23.99
6
O-RING
1800095
$1.49
7
SEAL, U-CUP
1800294
$24.27
8
SEAL, WIPER, .50
1800295
$12.94
9
O-RING
1800027
$2.02
10
SHAFT, RT, 8.18L
1800727
$154.99
11
PISTON, CONVEX,1.750
1800001
$125.46
12
WEAR BAND, 1.46 O.D.
1800543
$44.99
13
NEEDLE VALVE
1800329
$39.99
14
O-RING
1800210
$1.59
15
O-RING
1800215
$7.68
16
SCREW, BTN HD
1800109
$3.19
17
SLEEVE, 1.15L
1800405
$28.32
18
BUSHING
1800406
$5.65
18
BUSHING
1800406
$5.65
19
BODY, RT, MONO TUBE, CLEAR
1800728
$154.99
20
BUMPER
1800462
$32.37
21
WEAR BAND, 1.46 O.D.
1800297
$34.99
22
SPRING CLIP
1800116
$60.70
23
NUT, CRIMP
1800031
$3.99
24
O-RING
1800028
$1.60
25
SPRING, COMPRESSION, 210#, BLACK
7043714-458
$99.99
25
SPRING, COMPRESSION, 210#, WHITE
7043714-133
$149.99
25
SPRING, COMPRESSION, 250#, BLACK [OPT]
7043740-067
$145.22
