- 800 AXYS PRO RMK 174 ALL OPTIONS (R01) - S17EHP8P
SUSPENSION, REAR - S17EHP8P ALL OPTIONS (600429)

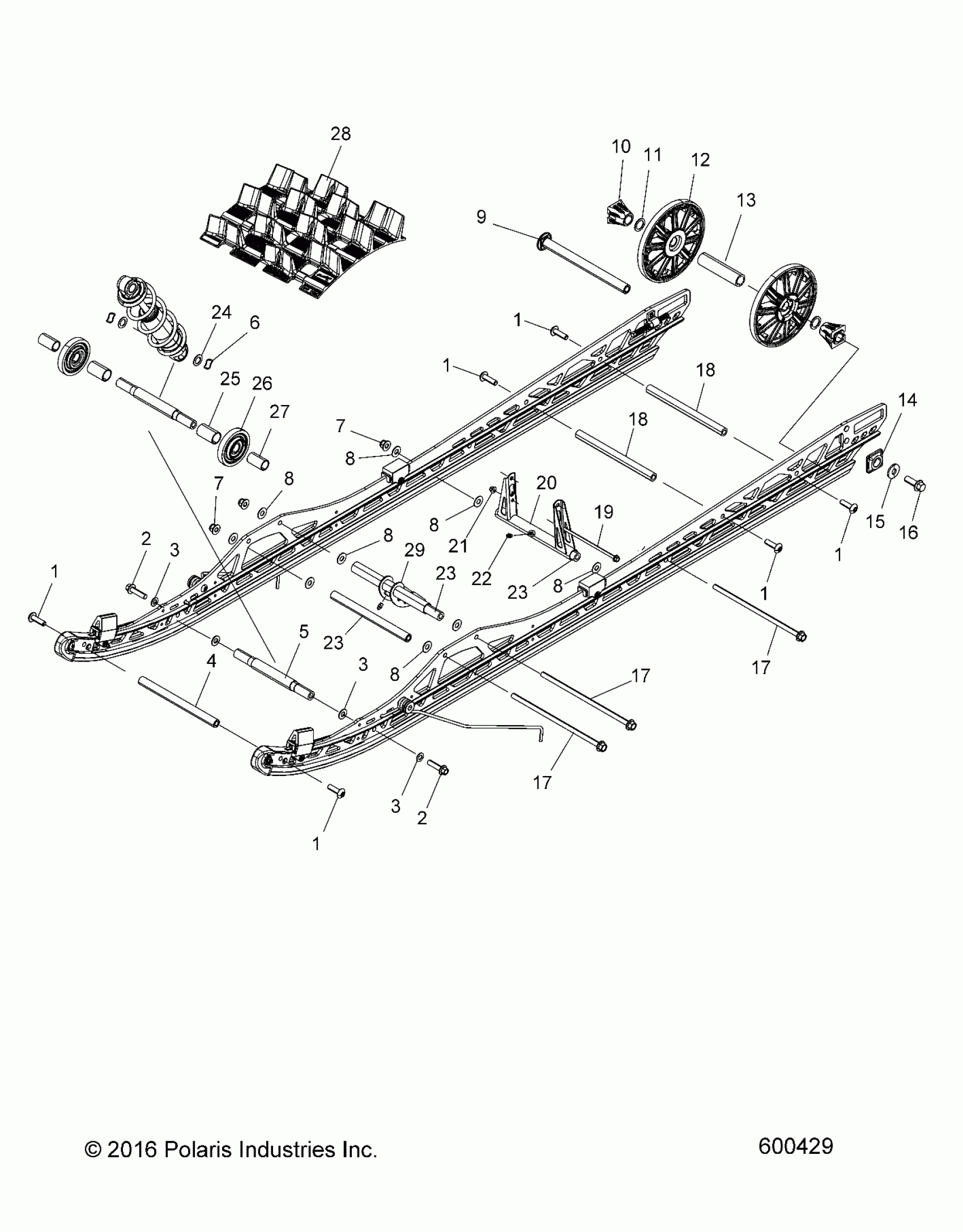

Polaris 800 AXYS PRO RMK 174 ALL OPTIONS (R01) - S17EHP8P SUSPENSION, REAR - S17EHP8P ALL OPTIONS (600429) Diagram
#
1
SCREW
7520369
$6.39
1
SCREW
7520369
$6.39
1
SCREW
7520369
$6.39
1
SCREW
7520369
$6.39
1
SCREW
7520369
$6.39
1
SCREW
7520369
$6.39
2
SCREW
7519216
$4.79
2
SCREW
7519216
$4.79
3
WASHER, HARDENED
7556155
$5.22
3
WASHER, HARDENED
7556155
$5.22
3
WASHER, HARDENED
7556155
$5.22
4
SFT-M10X1.5IDX17.47ODX220.1 LG
5136572
$33.87
5
SHAFT
5140954
$48.40
6
Washer, Wave
7556063
$3.19
7
NUT
7547423
$3.99
7
NUT
7547423
$3.99
8
WASHER
7556545
$3.19
8
WASHER
7556545
$3.19
8
WASHER
7556545
$3.19
8
WASHER
7556545
$3.19
8
WASHER
7556545
$3.19
8
WASHER
7556545
$3.19
9
SHAFT, IDLER, REAR
5139411
$129.99
10
SPACER-IDLER
5432535
$11.99
11
BUSHING
7555918
$1.59
12
BEARING [1 PER WHEEL]
3514384
$19.84
12
RING-RETAINING [1 PER WHEEL]
7710444
$8.79
12
ASM., WHEEL, BLACK
1590431-070
$67.76
13
SPACER-IDLER, CENTER LWT
5338618
$9.99
14
SPACER-IDLER
5436496
$6.39
15
WASHER
7556929
$3.99
16
SCREW
7520123
$8.79
17
SCREW
7519198
$29.99
17
SCREW
7519198
$29.99
17
SCREW
7519198
$29.99
18
SHAFT-CROSS
5139172
$29.03
18
SHAFT-CROSS
5139172
$29.03
19
BOLT
7519201
$19.99
20
ARM, REAR PIVOT, BLACK
1542906-329
$52.60
21
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
22
FITTING-LUBRICATION 1/4-28
7080424
$4.79
23
SHAFT, CROSS
5137418
$32.37
23
SHAFT, CROSS
5137418
$32.37
23
SHAFT, CROSS
5137418
$32.37
24
WASHER
7556210
$3.99
25
SPACER, INSIDE
5337107
$24.27
26
BEARING [1PER WHEEL]
3514777
$31.99
26
ASM., BOGIE WHEEL
1590509
$48.56
26
RING, RETAINING [1PER WHEEL]
7710700
$8.79
27
SPACER, OUTSIDE
5337106
$24.27
28
CLIP-TRACK, FLAT
5251273
Unavailable
28
CLIP-TRACK, SHORT GUIDE 012-0113
5268856
Unavailable
28
TRACK, 174 X 3.0, SERIES 7
5415786
$2,037.99
29
SHOCK PIVOT
1543669-329
$82.29
