- 800 AXYS PRO RMK 174 3" SC SELECT (R01) - S20EHM8PS
STEERING, LOWER - S20EHM8PS ALL OPTIONS (C601293)

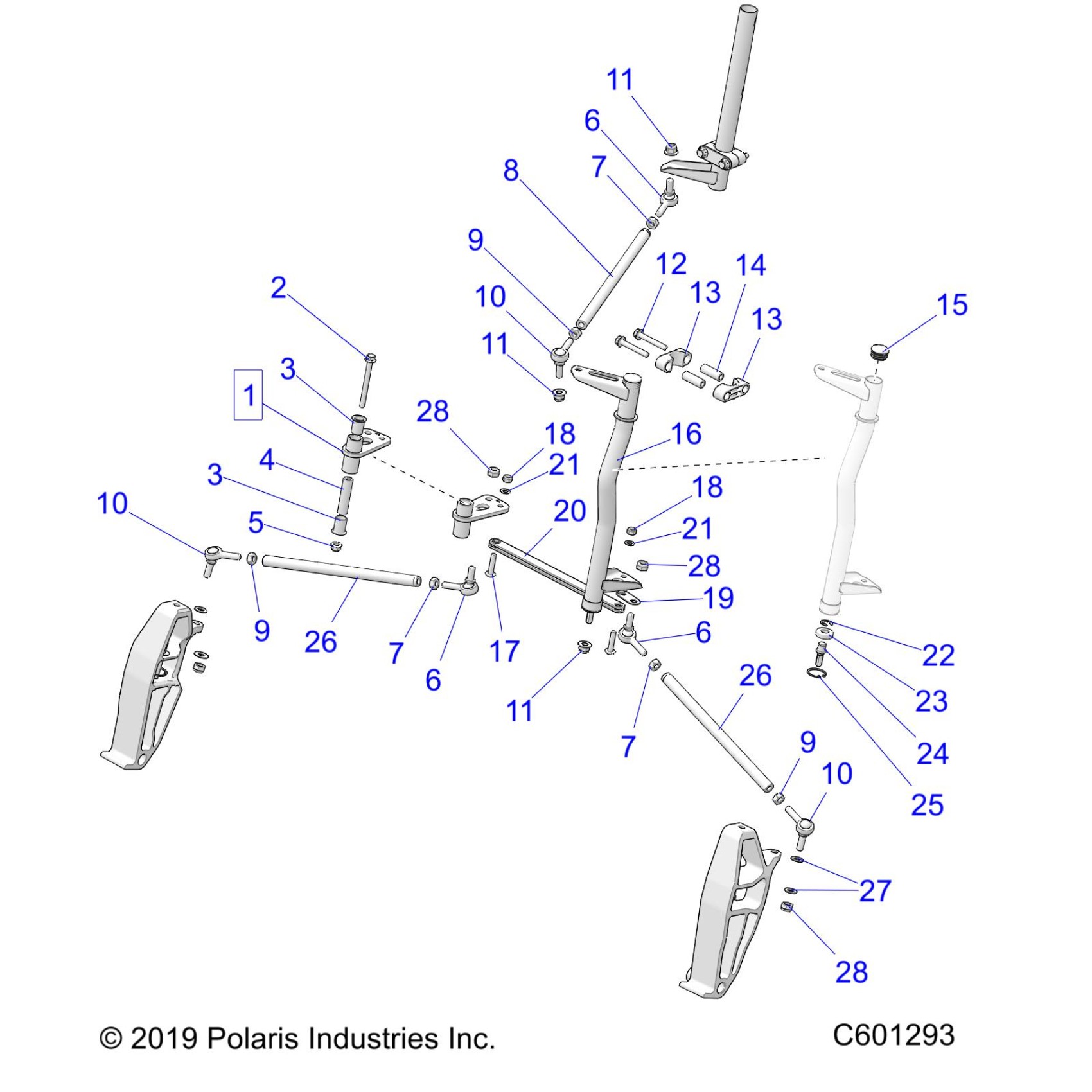

Polaris 800 AXYS PRO RMK 174 3" SC SELECT (R01) - S20EHM8PS STEERING, LOWER - S20EHM8PS ALL OPTIONS (C601293) Diagram
#
Description
Price
1
ASM-IDLER [INCL.3]
1824547
$135.54
2
SCR-HXFL-M8X1.25X85 10.9 ZOD
7519972
$9.59
3
BUSHING-SKI PIVOT
5438460
$15.99
3
BUSHING-SKI PIVOT
5438460
$15.99
4
SHAFT-PIVOT IDLER
5138365
$24.27
5
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
6
ROD END-M10X23 75DEG LH
7061165
$52.60
6
ROD END-M10X23 75DEG LH
7061165
$52.60
6
ROD END-M10X23 75DEG LH
7061165
$52.60
7
NUT-M10X1.5 LH ZOD
7547431
$3.19
7
NUT-M10X1.5 LH ZOD
7547431
$3.19
7
NUT-M10X1.5 LH ZOD
7547431
$3.19
8
TIE ROD
5338122
$24.99
9
NUT-M10X1.5 ZOD
7547430
$3.17
9
NUT-M10X1.5 ZOD
7547430
$3.17
9
NUT-M10X1.5 ZOD
7547430
$3.17
10
ROD END-M10X26.5 75DEG RH
7061166
$52.60
10
ROD END-M10X26.5 75DEG RH
7061166
$52.60
10
ROD END-M10X26.5 75DEG RH
7061166
$52.60
11
NUT-M10X1.5 HFN NYLOC ZOD
7547423
$3.99
11
NUT-M10X1.5 HFN NYLOC ZOD
7547423
$3.99
11
NUT-M10X1.5 HFN NYLOC ZOD
7547423
$3.99
12
SCR-HXFL-M8X1.25X55 8.8 ZODP30
7519242
$4.79
13
BUSHING
5451227
$4.99
13
BUSHING
5451227
$4.99
14
SPACER, BUSHING
5137796
$3.99
15
PLUG
7081210
$3.99
16
ASM., PITMAN ARM
1824669
$109.99
17
SCR-TXTH-M8X1.25X35 8.8 ZOD
7519238
$6.39
18
NUT-M8X1.25C10,HX,NYL,DIN982,Z
7547405
$1.49
18
NUT-M8X1.25C10,HX,NYL,DIN982,Z
7547405
$1.49
19
STRAP-PITMAN/IDLER
5261249
$11.99
20
ASM-RACK LINK
7061190
$71.99
21
WASHER
7557059
$3.19
21
WASHER
7557059
$3.19
22
RING, RETAINING, "E"
7710901
$7.19
23
BEARING
3514320
$15.99
24
STUD, SPACER
7519163
$39.99
25
RING-RET INT 1.125"
7710642
$2.39
26
TIE ROD
5340293
$32.37
26
TIE ROD
5340293
$32.37
27
Washer
7555806
$1.49
28
NUT-HEX M10X1.5 8 ZOD NYL
7547442
$3.99
28
NUT-HEX M10X1.5 8 ZOD NYL
7547442
$3.99
28
NUT-HEX M10X1.5 8 ZOD NYL
7547442
$3.99
