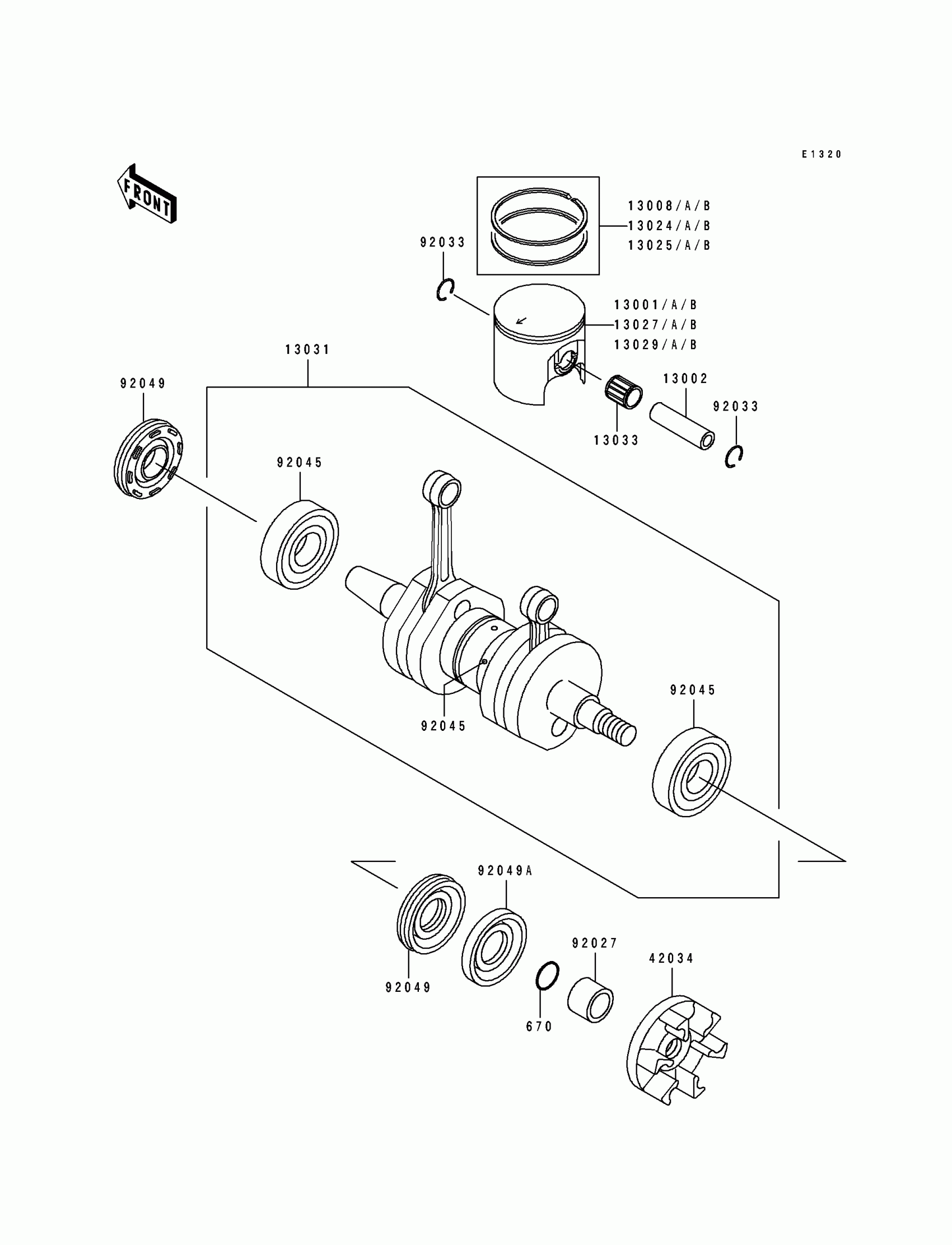

Kawasaki 750 SX Crankshaft/Piston(s)(JS750-A1/A2) Diagram

Description

Price

13001B

PISTON-ENGINE,STD

13001-3713

Unavailable

13002

PIN-PISTON

13002-3702

$29.79

13008B

RING-SET-PISTON,STD

13008-3708

$76.68

13024B

RING-SET-PISTON LL,O/S 1.00

13024-3706

Unavailable

13025B

RING-SET-PISTON L,O/S 0.50

13025-3706

Unavailable

13027B

PISTON-ENGINE LL,O/S 1.00

13027-3708

Unavailable

13029B

PISTON-ENGINE L,O/S 0.50

13029-3708

Unavailable

13031

CRANKSHAFT-COMP

13031-3716

Unavailable

13033

BEARING-SMALL END

13033-3702

$30.21

42034

COUPLING

42034-3705

Unavailable

92027

COLLAR

92027-3713

Unavailable

92033

RING-SNAP

92033-1207

$2.38

92045

BEARING-BALL

92045-3714

$45.18

92049

SEAL-OIL,FWJ15307210

92049-3705

$26.09

92049A

SEAL-OIL,S30726

92049-3706

$14.43

670

O RING,14MM

670B2014

$1.19
