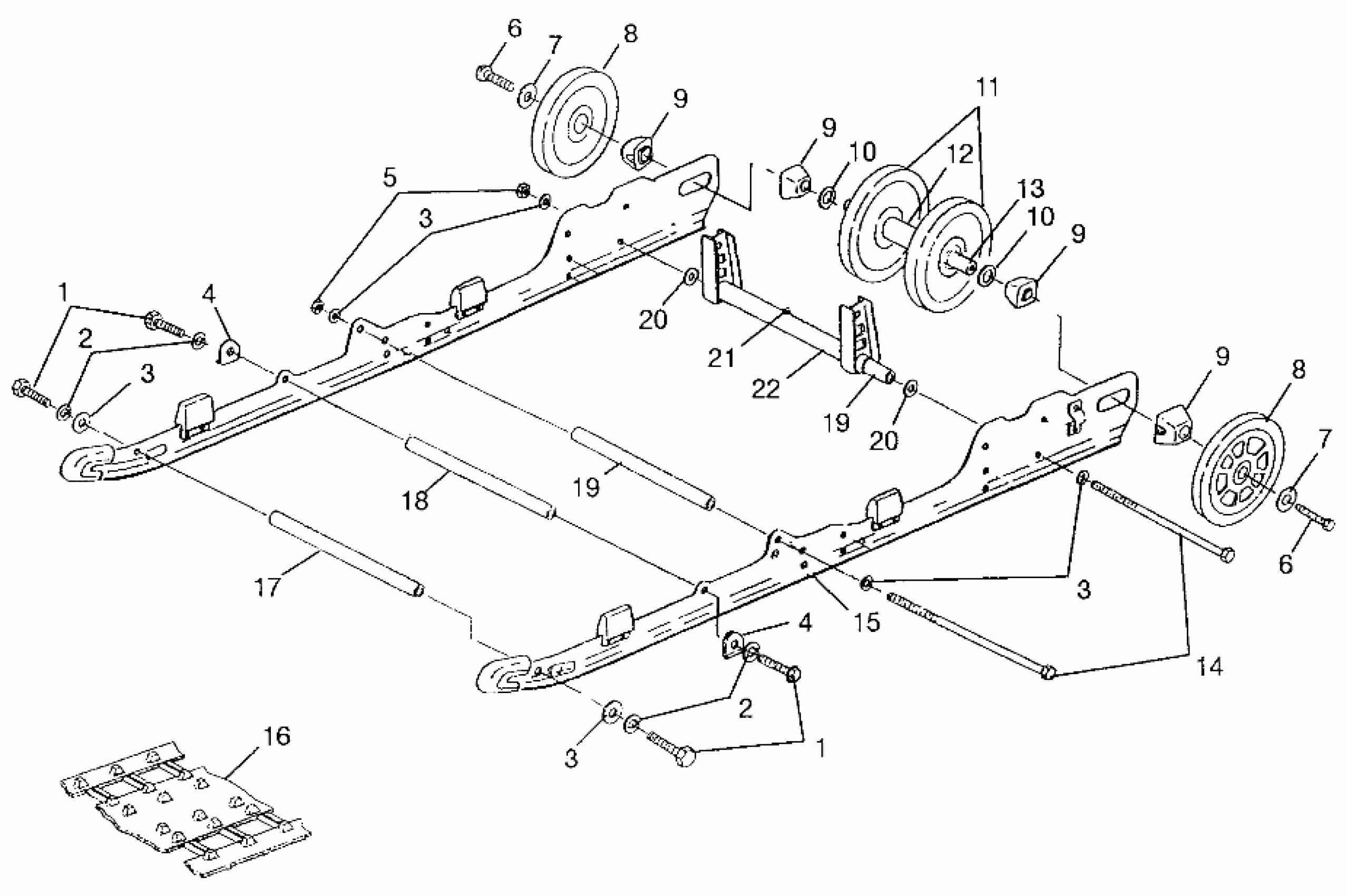

Polaris 700 XC - 0971766 SUSPENSION - 0971766 (4941814181B010) Diagram
#
Description
Price
1
SCREW,(10)
7517247
$3.19
1
SCREW,(10)
7517247
$3.19
2
WASHER SPRINGLOCK(10) Substituted by 7552603
7553001
Unavailable
2
WASHER SPRINGLOCK(10) Substituted by 7552603
7553001
Unavailable
3
WASHER(10) Substituted by 7555806
7555720
$0.79
3
WASHER(10) Substituted by 7555806
7555720
$0.79
3
WASHER(10) Substituted by 7555806
7555720
$0.79
3
WASHER(10) Substituted by 7555806
7555720
$0.79
4
BRKT-SHAFT SUPPORT
5241443
Unavailable
4
BRKT-SHAFT SUPPORT
5241443
Unavailable
5
NUT LOCK(10)
7542411
$3.19
6
BOLT(10)
7515526
$1.19
6
BOLT(10)
7515526
$1.19
7
WASHER(10) Substituted by 7556130
7571629
Unavailable
7
WASHER(10) Substituted by 7556130
7571629
Unavailable
8
WHEEL,IDLER,RED(20 MM) (Red)
1594056-136
$48.56
8
WHEEL,IDLER,RED(20 MM) (Red)
1594056-136
$48.56
9
SPACER-IDLER
5432535
$11.99
9
SPACER-IDLER
5432535
$11.99
9
SPACER-IDLER
5432535
$11.99
9
SPACER-IDLER
5432535
$11.99
10
BUSHING(10)
7555918
$1.59
10
BUSHING(10)
7555918
$1.59
11
WHEEL,IDLER,BLK(20MM)
1594056-070
$48.56
12
SPACER-IDLER, CENTER
5333283
$19.99
13
SHAFT,IDLER
5020744
$59.99
14
SCREW Substituted by 7517353
7515549
Unavailable
15
SLIDER,BLACK(2)
5521320
Unavailable
16
CLIP, TRACK(CAMOPLAST),(10)
5222839
Unavailable
16
CLIP,GUIDE,CAMOPLAST,(10)
5222840
Unavailable
16
TRACK,121"
5411360
Unavailable
17
SHAFT,PIVOT ARM
5020723
$29.99
18
SHAFT,PIVOT ARM
5020724
$29.99
19
SHAFT
5333404
$24.27
19
SHAFT
5333404
$24.27
20
WASHER(10)
7555893
$1.49
20
WASHER(10)
7555893
$1.49
21
ZERK,FITTING,THREADED(10)
7080433
$1.49
22
ARM,R.PIVOT
1540982-067
$38.05
