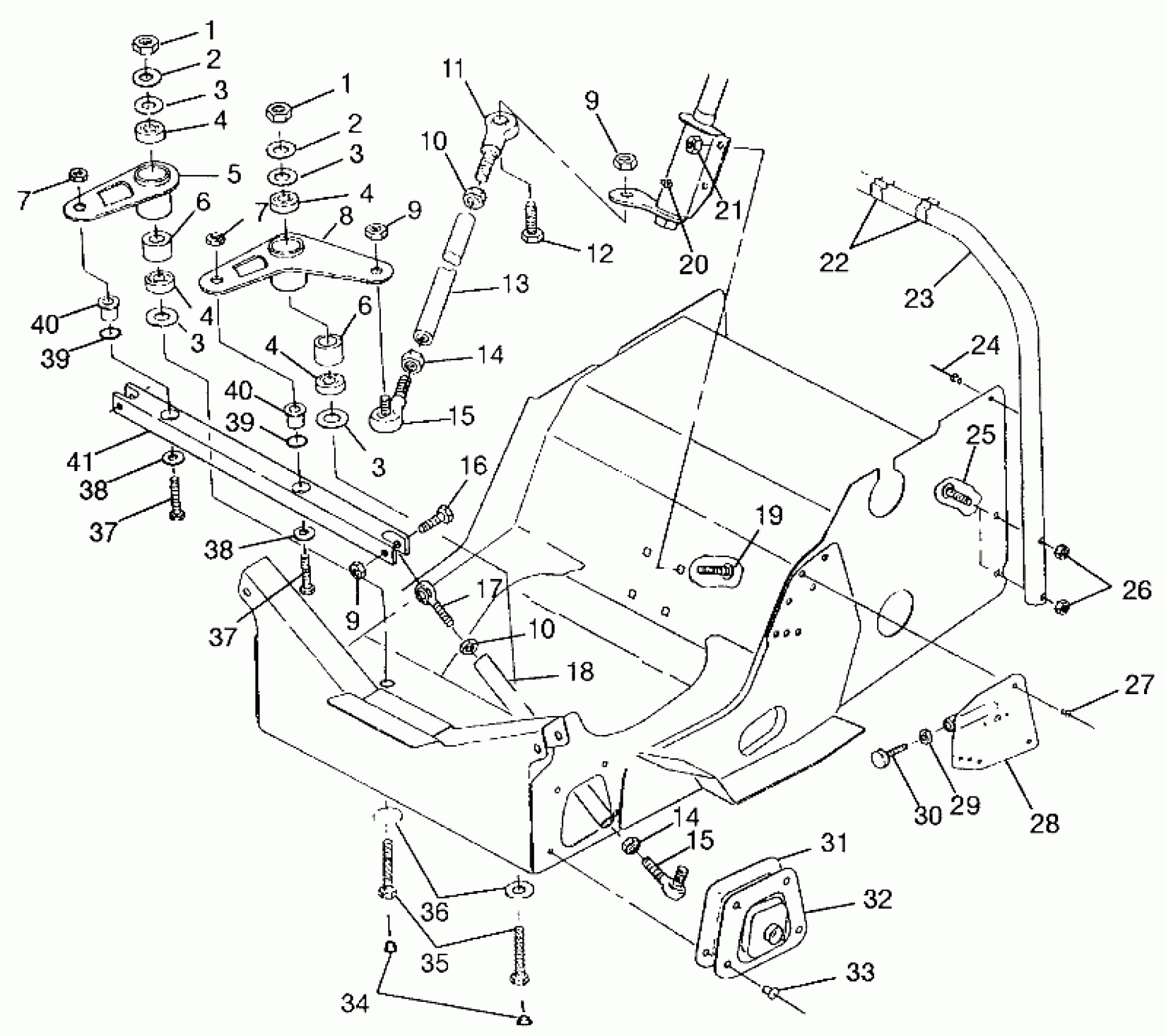

Polaris 700 XC - 0971766 STEERING - 0971766 (4941814181B004) Diagram
#
1
NUT,FLEX LOCK(10)
7547029
Unavailable
1
NUT,FLEX LOCK(10)
7547029
Unavailable
2
WASHER(10)
7555721
$1.49
2
WASHER(10)
7555721
$1.49
3
WASHER THRUST(10)
7558702
$1.59
3
WASHER THRUST(10)
7558702
$1.59
3
WASHER THRUST(10)
7558702
$1.59
3
WASHER THRUST(10)
7558702
$1.59
4
BEARING, BALL Substituted by 3514320
3554512
Unavailable
4
BEARING, BALL Substituted by 3514320
3554512
Unavailable
4
BEARING, BALL Substituted by 3514320
3554512
Unavailable
4
BEARING, BALL Substituted by 3514320
3554512
Unavailable
5
ZERK,FITTING,THREADED(10)
7080433
$1.49
5
ARM,IDLER ASM. Substituted by 1820577 (Incl. 4,6)
1822471
Unavailable
6
Bushing
5010417
$6.63
6
Bushing
5010417
$6.63
7
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
8
ZERK,FITTING,THREADED(10)
7080433
$1.49
8
PITMAN ARM ASM. Substituted by 1820575 (Incl. 4,6)
1822480
Unavailable
9
NUT LOCK(10)
7542403
$3.99
9
NUT LOCK(10)
7542403
$3.99
9
NUT LOCK(10)
7542403
$3.99
10
NUT
7542424
$1.49
10
NUT
7542424
$1.49
11
ROD END, LH.
7060164
$48.56
12
BOLT(10)
7512404
$3.99
13
ROD,DRAGLINK
5333411
Unavailable
14
NUT HEX(10)
7542401
$2.39
14
NUT HEX(10)
7542401
$2.39
15
ROD-END,RH,3/8,HI-ANGLE
7060174
$48.56
15
ROD-END,RH,3/8,HI-ANGLE
7060174
$48.56
16
SCREW(10)
7515434
Unavailable
17
ROD END,LH
7060166
$48.56
18
TIEROD, BLK
5020914-067
Unavailable
19
BOLT(10) Substituted by 7512377
7512394
Unavailable
20
FITTING,LUB/VEN(10)
7080561
$4.79
21
NUT-5/16-18 NYLOK-Y
7542324
$1.49
22
CLIP,CABLE RETAIN,(10)
7080631
$6.29
23
HOOP,STEERING,BLK
1012573-067
Unavailable
24
RIVET-3/16-.090-.290
7661637
$1.49
25
BOLT-CARRIAGE(10)
7512275
$3.99
26
NUT-LOCK(10)
7542122
$1.49
27
RIVET,INTERLOCK,B(50)
7661638
$1.49
28
Stop, Torque
1012618
Unavailable
29
NUT(10)
7542410
$0.94
30
STOP,TORQUE,COARSE
3110058
Unavailable
31
BOOT,TIEROD,MOD
5411249
Unavailable
32
PLATE,BOOT,MOD
5211796-067
$31.35
33
POP RIVET(50)
7621323
$1.49
34
PLUG,HOLE(10)
7080689
$5.75
35
SCREW(10)
7517328
$13.19
36
BUSHING, MACH.(10)
7558707
$4.79
37
BOLT(10) Substituted by 7515415
7515515
Unavailable
37
BOLT(10) Substituted by 7515415
7515515
Unavailable
38
WASHER(10)
7555893
$1.49
38
WASHER(10)
7555893
$1.49
39
O-RING
5411220
$6.46
39
O-RING
5411220
$6.46
40
TUBE,SPACER
5010384
Unavailable
40
TUBE,SPACER
5010384
Unavailable
41
RACK ASM,CRC
1822479
Unavailable
