Description

Price

1

NUT LOCK(10)

7542321

$1.49

1

NUT LOCK(10)

7542321

$1.49

2

NUT, (SE) Substituted by 7542415

7542443

Unavailable

3

WSHR-.813X.406X.105-Y

7555832

$2.39

3

WSHR-.813X.406X.105-Y

7555832

$2.39

4

TOE,PLASTIC SKI Substituted by 5432209-070

5432209

$40.46

5

PIN, COTTER(10) Substituted by 7661205

7661209

Unavailable

6

NUT, CASTLE(10) Substituted by 7542438

7542457

Unavailable

7

WASHER(10) Substituted by 7555832

7555851

Unavailable

7

WASHER(10) Substituted by 7555832

7555851

Unavailable

8

SADDLE ASM,HI PERF

1822491

Unavailable

9

STOP,RUBBER

5411094

Unavailable

10

SUPPORT,SKI,RUBBER,BLK

5241912-067

Unavailable

11

WASHER(10) Substituted by 7555832

7555851

Unavailable

12

SKI ASM,COMP,(PLASTIC) Substituted by 1820506-070

1820506

Unavailable

13

SPACER,SKAG

5010426

Unavailable

13

SPACER,SKAG

5010426

Unavailable

13

SPACER,SKAG

5010426

Unavailable

14

SKAG,CARBIDE,3IN.120DEG,3/8 STUD

1820483

Unavailable

15

SCREW,(10)

7512596

$19.99

16

BOLT(10)

7515514

$7.19

17

BOLT(10)

7515307

$3.99

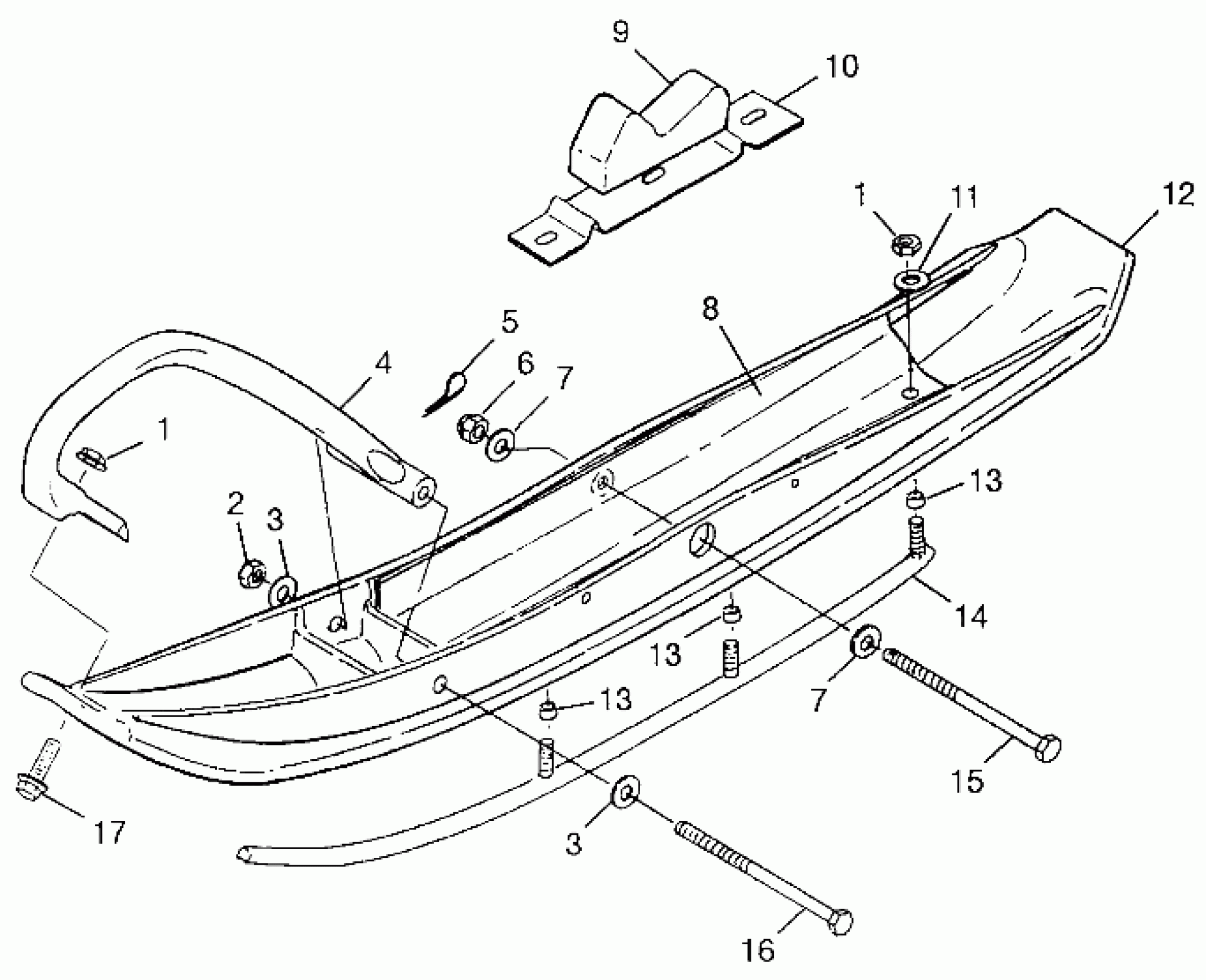

Polaris 700 XC - 0971766 SKI - 0971766 (4941814181B002) Diagram

NUT LOCK(10)

NUT LOCK(10)

NUT, (SE) Substituted by 7542415

WSHR-.813X.406X.105-Y

WSHR-.813X.406X.105-Y

TOE,PLASTIC SKI Substituted by 5432209-070

PIN, COTTER(10) Substituted by 7661205

NUT, CASTLE(10) Substituted by 7542438

WASHER(10) Substituted by 7555832

WASHER(10) Substituted by 7555832

SADDLE ASM,HI PERF

STOP,RUBBER

SUPPORT,SKI,RUBBER,BLK

WASHER(10) Substituted by 7555832

SKI ASM,COMP,(PLASTIC) Substituted by 1820506-070

SPACER,SKAG

SPACER,SKAG

SPACER,SKAG

SKAG,CARBIDE,3IN.120DEG,3/8 STUD

SCREW,(10)

BOLT(10)

BOLT(10)
