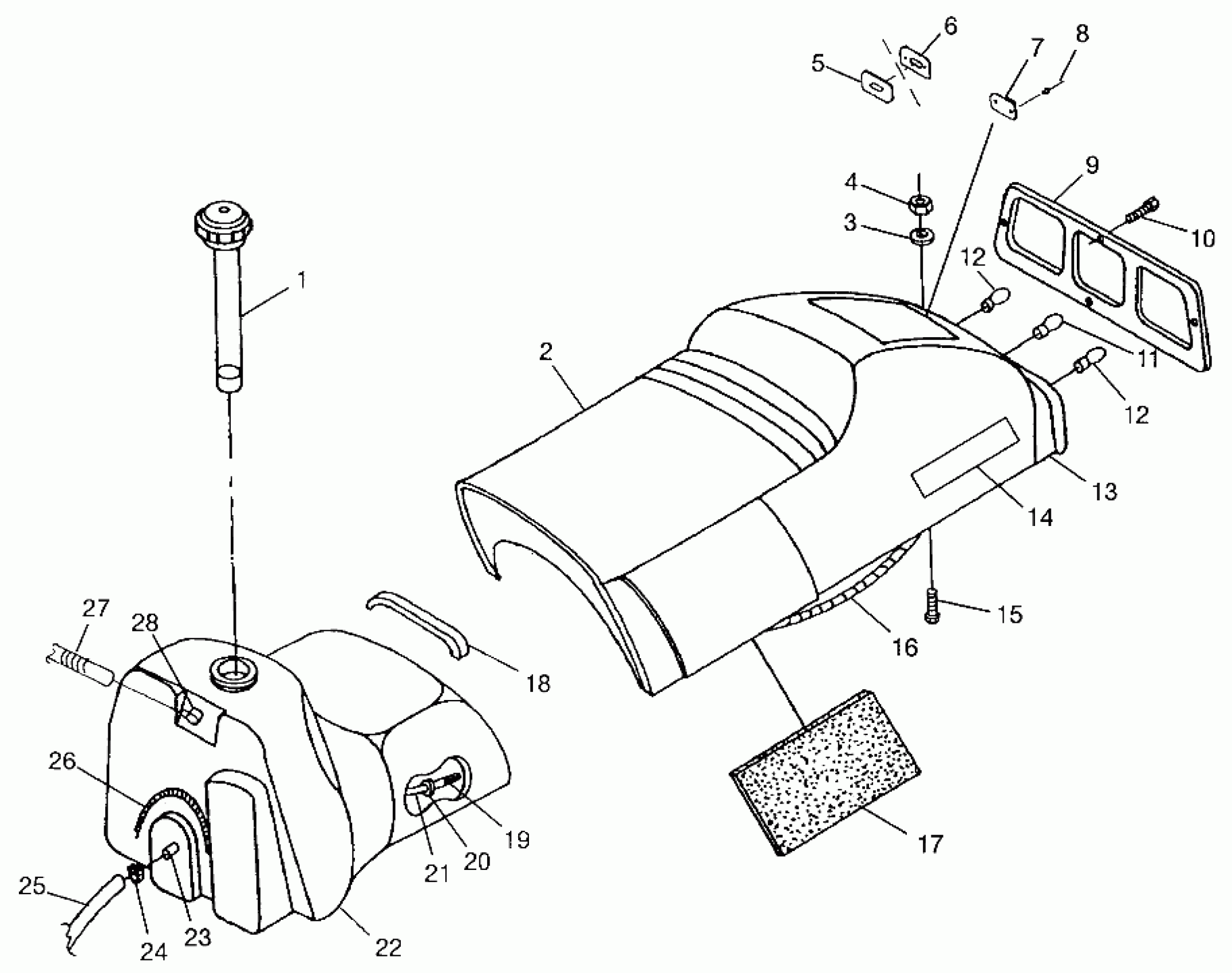

Polaris 700 XC - 0971766 SEAT and GAS TANK 700 XC 0971766 (4941814181A006) Diagram

#

Description
Price

1

GASKET, GAS CAP

5810513

$8.89

1

CAP,GAS,W/GAUGE,2 1/2"

2511277

Unavailable

2

COVER ASM,SEAT (Incl. 5-8)

2682205

Unavailable

2

SEAT ASM. (Incl. 2, 5-13, 16, 17)

2682206

Unavailable

3

WASHER,TOOTHED,DISH(10)

7571630

Unavailable

4

NUT-LOCK(10)

7542122

$1.49

5

GROMMET,RELATCH,1",BOTT.(10)

7080550

Unavailable

6

GROMMET,RELATCH,1",TOP(10)

7080549

Unavailable

7

TWISTLOCK,RELATCH,1",W/HOLE(10)

7080548

Unavailable

8

RIVET(50)

7621337

$1.49

9

LENS,TAILLIGHT

5430423

Unavailable

10

SCREW(10)

7511840

Unavailable

11

Bulb, Brakelight

4030045

Unavailable

12

BULB,TAILLIGHT(10)

4030024

$4.84

12

BULB,TAILLIGHT(10)

4030024

$4.84

13

HOUSING,TAILLIGHT Substituted by 5433341

5431545

Unavailable

14

Decal - "Polaris 700", Seat (See Pg. A12, Ref. 23)

-------

Unavailable

15

BOLT(10)

7512193

$2.39

16

Harness, Taillight

2460399

Unavailable

17

FOAM,SEAT PAD

5431981

Unavailable

18

CUSHION,TANK H.D.

5420126

Unavailable

19

FUELPICKUP,W/STRAINER

7052037

$12.94

20

RING, COMPRESSION(10)

7080402

$1.60

21

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

22

TANK,FUEL,DOMESTIC,XC Substituted by 2520141 (Incl. 1, 19-23, 28)

2511314

Unavailable

23

FITTING - OUTLET(10)

7052023

$24.99

24

HOSE CLAMP, RED (Red)

7080003

$1.49

25

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

26

SPRING,TANK,(10)

7042020

$13.75

27

FUEL LINE,3/16 ID(600 CM.)

8450037-600

Unavailable

27

SPRING,PROTECT VENTHOSE

7041643

$3.51

28

ELBOW, TUBE

7052055

$4.95
