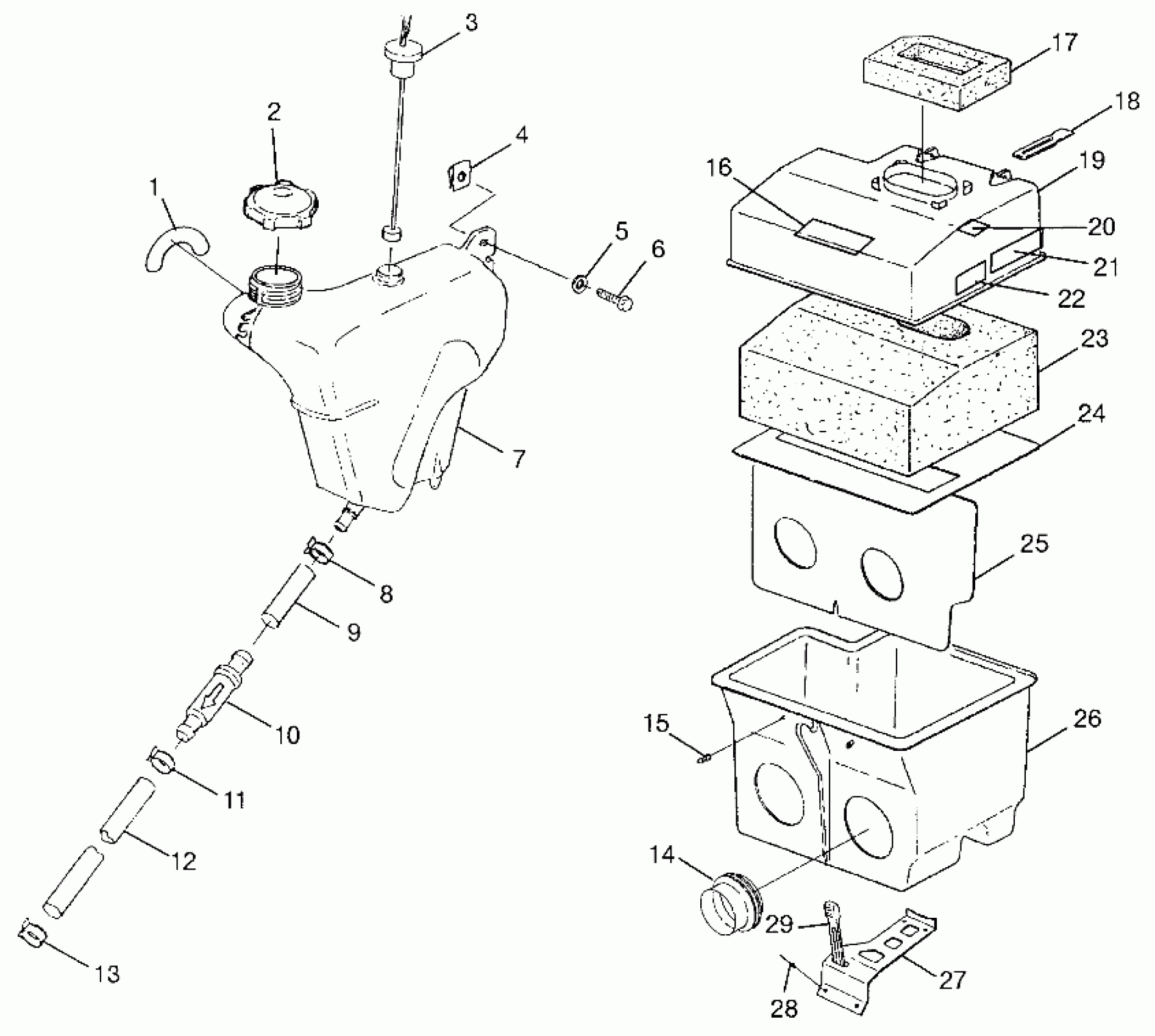

Polaris 700 XC - 0971766 OIL TANK/AIR BOX 700 XC 0971766 (4941814181C005) Diagram

#

Description
Price

1

DECAL,FUEL SHUT-OFF(LITE) [No Longer Available]

7073124

Unavailable

2

CAP,OIL,VENTED Substituted by 1240094

2511287

Unavailable

3

SENSOR,OIL LEVEL

4110134

$72.84

4

Nut

7670096

$1.59

5

WASHER,WROUGHT(10)

7558302

$1.59

6

BOLT(10)

7512276

$4.79

7

TANK, OIL

5432370

Unavailable

8

CLAMP,HOSE,(10)

7080650

$3.99

9

FUEL LINE

8450059-150

Unavailable

10

FILTER,OIL

2530015

Unavailable

11

CLAMP-HOSE, (LARGE GREEN) (Green)

7080307

$1.49

12

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

13

CLAMP-HOSE,(10) (Yellow)

7080236

$1.59

14

BOOT,CARB

5411109

Unavailable

15

FITTING,HOSE(10)

7052127

$3.19

16

DECAL,COOL.SYSTEM [No Longer Available]

7075359

Unavailable

17

FOAM,AIRBOX,CHIMNEY

5811328

Unavailable

18

RETAINER-TAB,(10)

5411075

Unavailable

19

TOP,SIL.INTAKE,W/1.5 HOLE

5432586

Unavailable

20

DECAL,CAUTION,AIRBOX

7075351

Unavailable

21

DECAL,ADJ.DRIVEN CLUTCH

7073820

Unavailable

22

DECAL, GREASING [No Longer Available]

7073426

$7.27

23

FOAM,AIRBOX,TOP INT. Substituted by 5811564

5811484

Unavailable

24

PLATE,SILENCER INTAKE

5850134

Unavailable

25

PLATE,SILENCER,INTAKE,VERT.

5850139

$10.71

26

SILENCER,INTAKE,DRILLED

5432368

Unavailable

27

BRKT,SIL.MOUNT,LOW Substituted by 5243729

5241691

Unavailable

28

RIVET,INTERLOCK,B(50)

7661638

$1.49

29

STRAP,TIE-DOWN

5411129

$8.89
