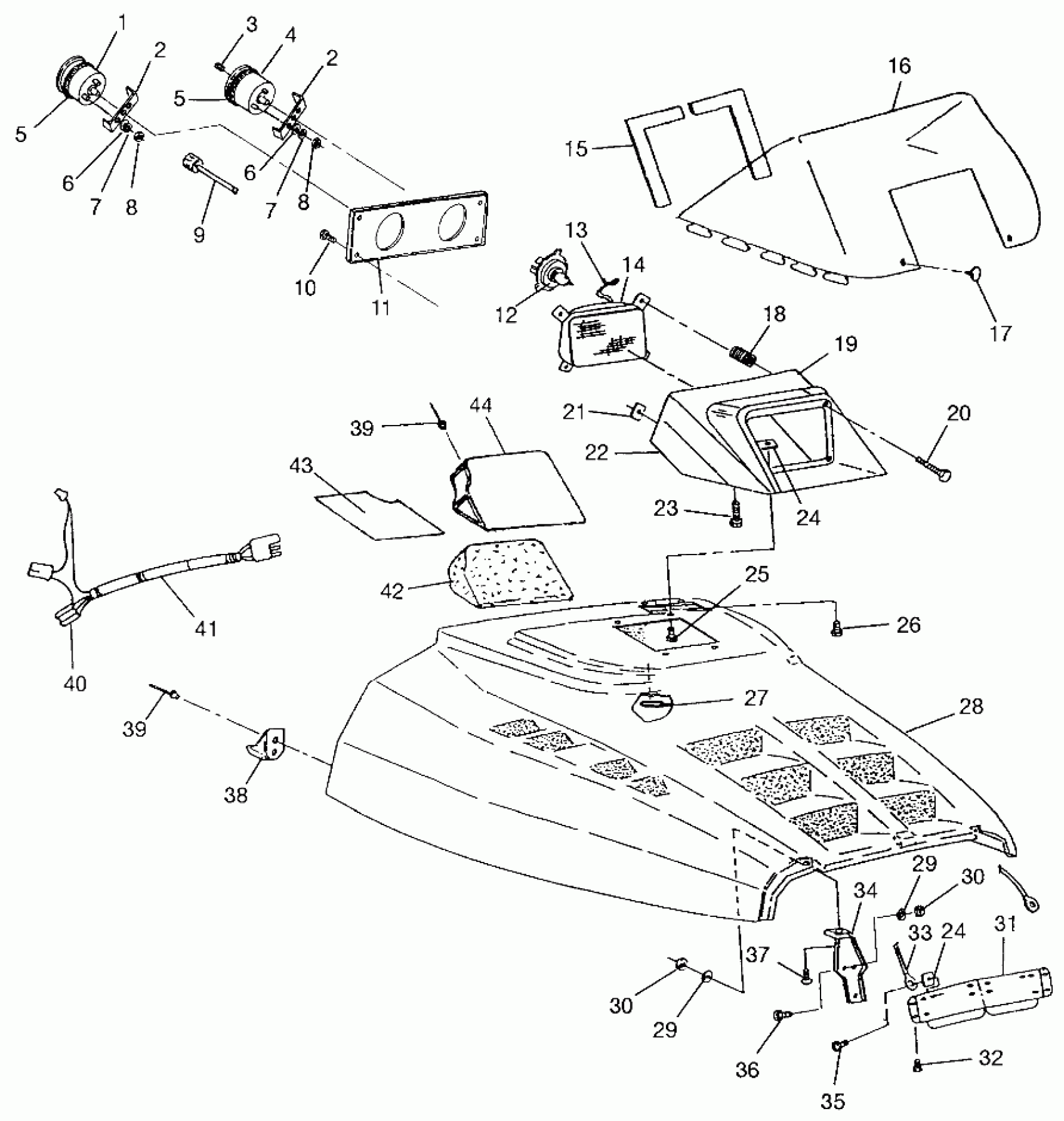

Polaris 700 XC - 0971766 HOOD 700 XC 0971766 (4941814181A009) Diagram
#
1
BULB TAILLIGHT(10)
4030015
$4.03
1
TACH ASM,6 PULSE,5 IN. (Incl. 2, 6-8)
3280250
$196.17
2
BRKT,TACH/SPEEDO,5"
3280210
$28.32
2
BRKT,TACH/SPEEDO,5"
3280210
$28.32
3
KNOB,TRIP ODOMETER,LH THD.
3280186
$9.70
4
SPEEDO,BACKLIT,5IN,120MPH (Incl. 2, 6-8)
3280254
Unavailable
5
CUSHION,TACH/SPEEDO,RUBBER
3280209
$3.99
5
CUSHION,TACH/SPEEDO,RUBBER
3280209
$3.99
6
WASHER,FLAT,(10)
3280157
$2.39
6
WASHER,FLAT,(10)
3280157
$2.39
7
WASHER,SPLIT LOCK
3280156
$1.49
7
WASHER,SPLIT LOCK
3280156
$1.49
8
Nut
3280158
Unavailable
8
Nut
3280158
Unavailable
9
CABLE,SPEEDO.
3280094
$60.70
10
SCREW,SCKT.HD.CAP(10)
7512008
Unavailable
11
BEZEL,INST,5IN.GAUGE
5432355
Unavailable
12
BULB,QUARTZ.H/L,INDY
2870448
$24.99
13
RETAINER,H/L BULB
4032063
Unavailable
14
HEADLIGHT ASM. (Incl. 12, 13)
4032040
Unavailable
15
PAD,W/S,LH,BLACK
5810437
Unavailable
15
PAD,W/S,RH,BLACK
5810438
$1.67
16
WINDSHIELD,SMOKE,LOW Substituted by 2870785
5431621
Unavailable
17
RIVET,PLASTI-LOC.(50)
7621509
$1.49
18
SPRING-ADJ
4032002
Unavailable
19
HSG,INSTR,TOP,BLK
5432349-070
Unavailable
20
SCREW, ADJ.(10)
4032003
Unavailable
21
NUT, SPEED(10)
7670056
Unavailable
22
HSG,INST.BOTT.BLK.
5430922-070
Unavailable
23
SCREW(10)
7512009
Unavailable
24
NUT, SPEED(10)
7670057
$1.49
24
NUT, SPEED(10)
7670057
$1.49
25
SCREW, SEMS(10)
7512283
$3.99
26
SCREW(10)
7511840
Unavailable
27
RETAINER,WINDSHIELD,(10)
5410970
$1.49
28
HOOD,LIQ,MOD,WHITE (Incl. Foam, Foil & Warning Decals)
2631878-241
Unavailable
29
WASHER,WROUGHT(10)
7558302
$1.59
29
WASHER,WROUGHT(10)
7558302
$1.59
30
NUT-LOCK(10)
7542122
$1.49
30
NUT-LOCK(10)
7542122
$1.49
31
PLATE,RE-INF.,(HD.)
5222105
$49.51
32
SCREW(10)
7511861
Unavailable
33
CABLE,HOOD RETAINER
7080368
$10.51
34
HINGE ASM,HD,WHITE
2635005-133
$15.70
35
SCREW(10)
7511989
Unavailable
36
BOLT(10)
7512193
$2.39
37
BOLT-CARRIAGE(10)
7512263
$3.99
38
CUP, HOOD LATCH,(10)
5430733
$4.84
39
RIVET(50)
7621334
$1.49
39
RIVET(50)
7621334
$1.49
40
HOUSING (Headlight)
4020052
Unavailable
41
HARNESS,HEADLIGHT
2460576
Unavailable
42
FOAM,INTAKE PREFILTER
5811337
Unavailable
43
DECAL,WARNING
7076618
Unavailable
44
PANEL,INTAKE,PREFILTER
5432536
Unavailable
