FRONT SUSPENSION - 0971766 (4941814181B001)

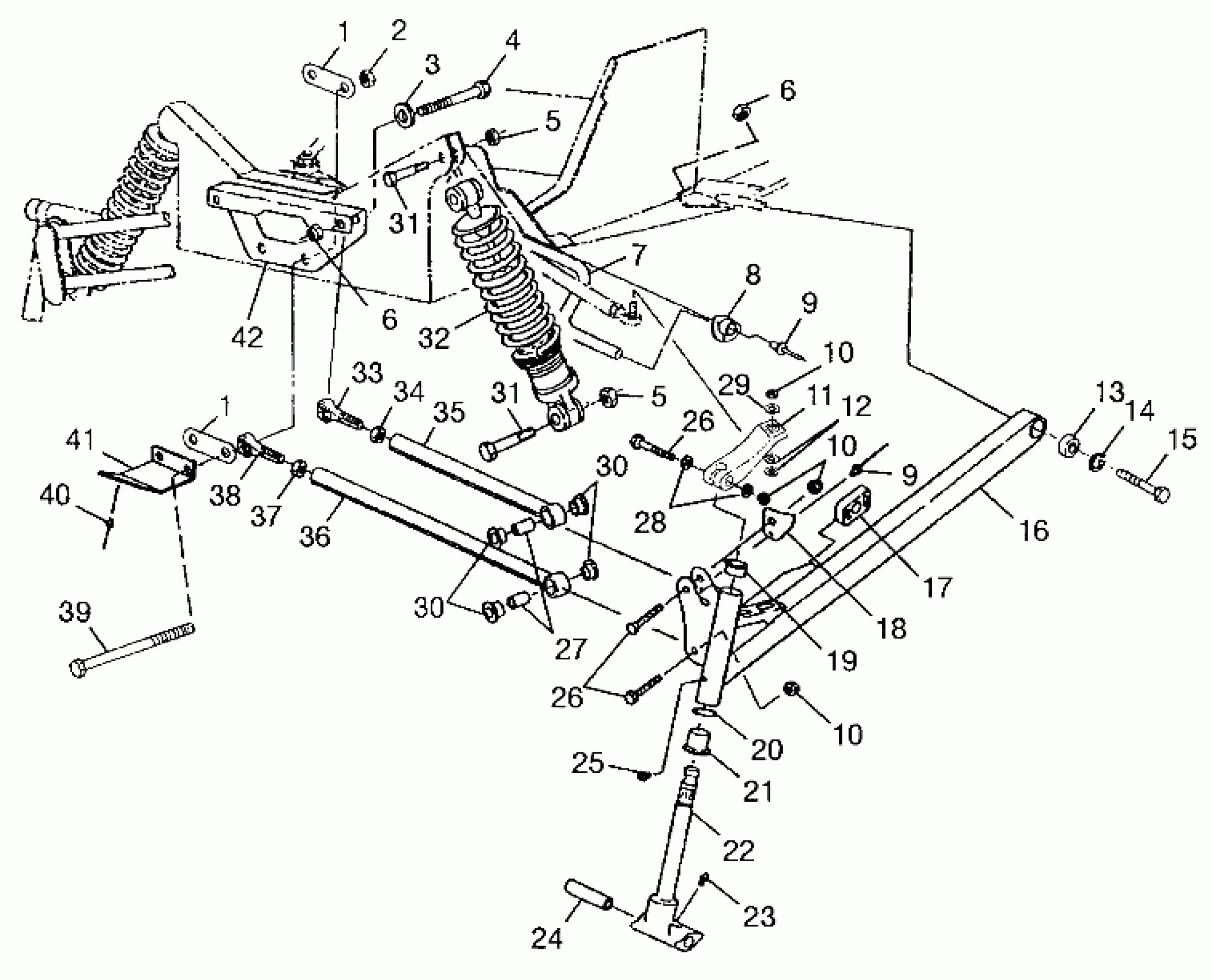

Polaris 700 XC - 0971766 FRONT SUSPENSION - 0971766 (4941814181B001) Diagram
#
1
STRAP,SPACER BOTTOM
5211345
$12.99
1
STRAP,SPACER BOTTOM
5211345
$12.99
2
NUT FLEX,(10)
7542703
Unavailable
3
WASHER THRUST(10)
7558702
$1.59
4
BOLT(10)
7512551
Unavailable
5
NUT, NYLOC(10)
7542453
Unavailable
5
NUT, NYLOC(10)
7542453
Unavailable
6
NUT, LOCK,(10)
7542503
$10.39
6
NUT, LOCK,(10)
7542503
$10.39
7
BAR,SWAY,5/8 Substituted by 5242816-067
5224774-067
Unavailable
8
BUSHING,SWAY BAR
5432297
Unavailable
9
RIVET(50) Substituted by 7661130
7661643
Unavailable
9
RIVET(50) Substituted by 7661130
7661643
Unavailable
10
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
10
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
10
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
11
ARM,LH,STRG. Substituted by 5131739
5131541
$161.89
11
ARM,RH,STRG. Substituted by 5131740
5131542
Unavailable
12
WASHER(10)
7555797
$3.99
13
BRG,SPHERICAL,7/16 Substituted by 7061042
7061016
Unavailable
14
RING,RETAINING(10)
7710437
$3.19
15
BOLT(10)
7512579
Unavailable
16
ARM,TRLG,RH Substituted by 1820779 (Incl. 13,14)
1822463
Unavailable
16
ARM,TRLG,LH Substituted by 1820713-067 (Incl. 13,14)
1822462
Unavailable
17
SLIDE,SWAYBAR,5/8
5432561
$24.27
18
STOP,STRG,LH.
5242017-067
$13.89
18
STOP,STRG,RH.
5242018-067
$13.10
19
BUSHING-FLANGE
3573909
$2.39
20
WASHER SPECIAL(10)
7556509
$1.59
21
BUSHING,SPINDLE HSG,(10)
3574208
$3.19
22
SHAFT,SPINDLE,TRLG,BLK
6230102-067
$294.99
23
FITTING,LUBE.W/BALL CK.(10)
7080306
$3.19
24
BUSHING,PIVOT,(10)
5010158
$19.99
25
ZERK,FITTING,THREADED(10)
7080433
$1.49
26
BOLT(10) Substituted by 7517583
7515491
Unavailable
26
BOLT(10) Substituted by 7517583
7515491
Unavailable
27
BUSHING-RADIUS ROD,(10)
5010127
$7.99
28
WASHER(10) Substituted by 7555832
7555851
Unavailable
29
WASHER(10)
7555957
$4.79
30
BUSH,RAD.ROD PIVOT,OUT.
5431486
$3.19
30
BUSH,RAD.ROD PIVOT,OUT.
5431486
$3.19
31
BOLT(10) Substituted by 7515415
7515515
Unavailable
31
BOLT(10) Substituted by 7515415
7515515
Unavailable
32
RETAINER,SPRING,SLOTTED,CAST Substituted by 5020618
5630580
Unavailable
32
SPRING,COMP,BLK
7041489-067
Unavailable
32
Shock, Fox IFS (See Pg. B13)
-------
Unavailable
33
ROD,END,7/16 LINED Substituted by 7061049
7061010
Unavailable
34
NUT JAM(10)
7542520
$2.39
35
ROD,RAD,UPPER,BLK. Substituted by 1820588-067
1822475-067
Unavailable
36
ROD,RAD,LOWER,BLK Substituted by 1820584-067
1822474-067
Unavailable
37
NUT-JAM(10)
7542711
$2.39
38
ROD END,1/2 LINED Substituted by 7061071
7061011
$48.56
39
BOLT(10)
7512678
$19.99
40
RIVET(50)
7621452
$1.49
41
BRACE, PAN
5223997-067
Unavailable
42
BRACE,BULKHEAD,FRONT,BLK
1012575-067
$23.99
