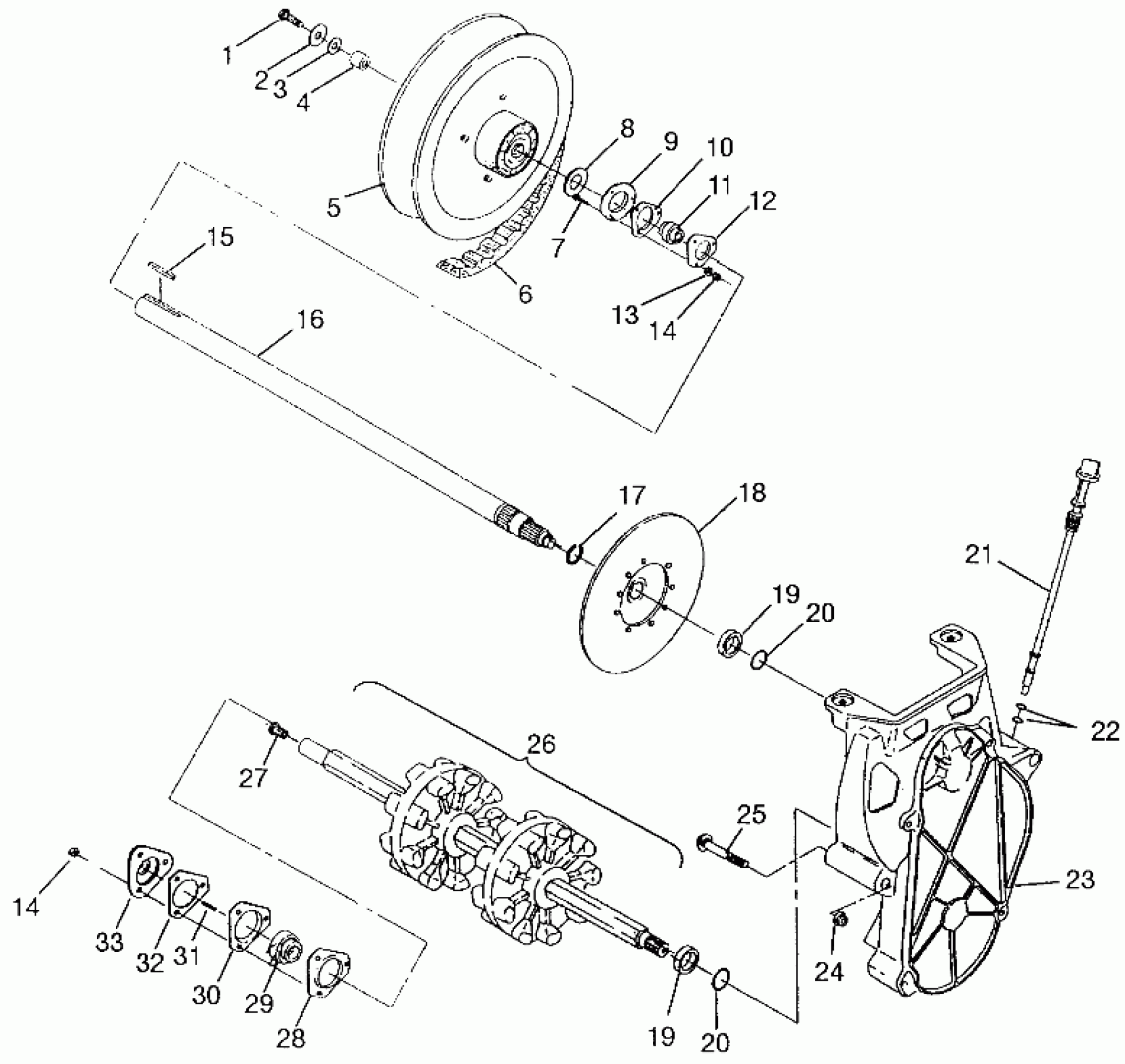

Polaris 700 XC - 0971766 DRIVE TRAIN - 0971766 (4941814181B008) Diagram
#
Description
Price
1
BOLT(10)
7515301
Unavailable
2
WASHER FLAT(10)
7555701
$3.99
3
WASHER(10)
7555734
Unavailable
4
SPACER
5020291
Unavailable
5
Asm., Driven Clutch, Adjustable (See Pg. C2, Ref. 16)
-------
Unavailable
6
BELT, DRIVE(5)
3211065
$114.99
7
BOLT(10) Substituted by 7512377
7512394
Unavailable
8
WASHER SPECIAL(10)
7556509
Unavailable
9
FLANGE RD,RELUBE W/ZERK
5241359
$32.37
10
GASKET,JACKSHAFT,BLK.
5811095
$2.41
11
BEARING,JACKSHAFT
3514519
$64.99
12
FLANGETTE
5222751
$16.44
13
WASHER-.344X.688X.063 FL-Y
7558402
$1.49
14
NUT-5/16-18 NYLOK-Y
7542324
$1.49
14
NUT-5/16-18 NYLOK-Y
7542324
$1.49
15
KEY(10)
7721116
$12.94
16
JACKSHAFT ASM,TUBE,EXT KEY,BLK Substituted by 1332255 (Incl. 17)
1332195-067
Unavailable
17
RING, RETAINING(10)
7710422
$3.99
18
DISC ASM, BRAKE
1910086
Unavailable
19
SLEEVE, SEAL
5020588
$23.99
19
SLEEVE, SEAL
5020588
$23.99
20
O RING,(10)
5410613
$1.99
20
O RING,(10)
5410613
$1.99
21
DIPSTICK Substituted by 1332143
5431419
Unavailable
22
O-RING
5410675
$1.60
23
Chaincase, Top Mount Vented (See Pg. B7, Ref. 22)
-------
Unavailable
24
NUT(10)
7542423
$3.99
25
BOLT(10)
7515428
$4.79
26
DRIVESHAFT ASM,XHD,2 DR,WIDE
1590262
Unavailable
27
BUSHING METAL SPEEDO
3280019
$11.99
28
FLANGETTE ASM,,W/ SCREWS Substituted by 1012945
1012434
Unavailable
29
BEARING,DRIVESHAFT
3514518
$64.99
30
FLANGETTE Substituted by 5243529
5241178
$13.75
31
SQ. KEY SPEEDOMETER,(10)
3280017
$13.75
32
GASKET,DRIVE ADAPTOR,(10)
5830012
$2.41
33
ADAPTER,DRIVE,W/ZERK
3280116
$101.17
