Description

Price

1

CLAMP

7080408

Unavailable

2

SCREW(10)

7516822

$2.39

2

SCREW(10)

7516822

$2.39

3

CLAMP,HOSE(10)

7080683

$2.39

3

CLAMP,HOSE(10)

7080683

$2.39

4

ADAPTER,CARB

1253146

Unavailable

4

ADAPTER,CARB

1253146

Unavailable

5

STUFFER,REED BLOCK Substituted by 5433151

5432104

Unavailable

5

STUFFER,REED BLOCK Substituted by 5433151

5432104

Unavailable

6

COVER,T'STAT/BYPASS Substituted by 2201382

5630639

Unavailable

7

SENSOR,TEMP(105DEG,C)

4110228

Unavailable

8

GASKET,T'STAT COVER Substituted by 5830159

5830113

$20.22

8

GASKET,T'STAT COVER Substituted by 5830159

5830113

$20.22

9

SCREW(10)

7516733

$6.39

10

SCREW,(10) Substituted by 7517565

7517266

$15.99

11

WASHER,FLAT,(10)

7555998

$1.49

12

SCREW ,(10)

7516820

$5.59

13

PLATE,BYPASS COVER

5211708

$29.03

14

HEAD,CYL,81MM,TWN. Substituted by 2201384

3022030-186

Unavailable

15

O-Ring

5410931

Unavailable

16

O-RING

5410932

$20.22

17

CYLINDER, 81 MM. Substituted by 5131824

5131220

$288.99

18

GASKET,CYL.BASE

5811057

$7.67

19

NUT(10)

7547013

$1.99

20

REEDVALVE ASM. Substituted by 1201743

1201689

Unavailable

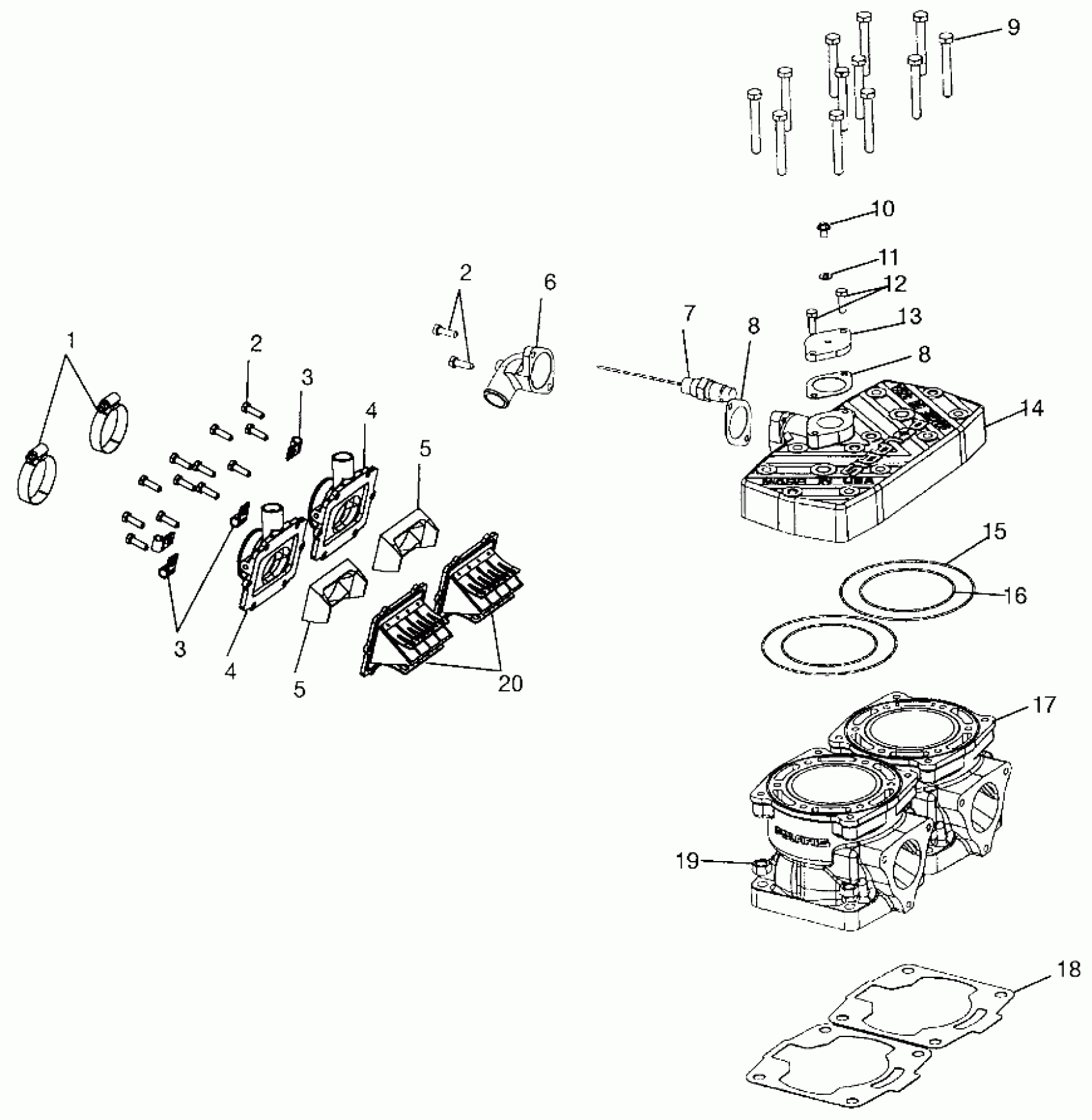

Polaris 700 XC - 0971766 CYLINDER 700 XC 0971766 (4941814181C007) Diagram

CLAMP

SCREW(10)

SCREW(10)

CLAMP,HOSE(10)

CLAMP,HOSE(10)

ADAPTER,CARB

ADAPTER,CARB

STUFFER,REED BLOCK Substituted by 5433151

STUFFER,REED BLOCK Substituted by 5433151

COVER,T'STAT/BYPASS Substituted by 2201382

SENSOR,TEMP(105DEG,C)

GASKET,T'STAT COVER Substituted by 5830159

GASKET,T'STAT COVER Substituted by 5830159

SCREW(10)

SCREW,(10) Substituted by 7517565

WASHER,FLAT,(10)

SCREW ,(10)

PLATE,BYPASS COVER

HEAD,CYL,81MM,TWN. Substituted by 2201384

O-Ring

O-RING

CYLINDER, 81 MM. Substituted by 5131824

GASKET,CYL.BASE

NUT(10)

REEDVALVE ASM. Substituted by 1201743
