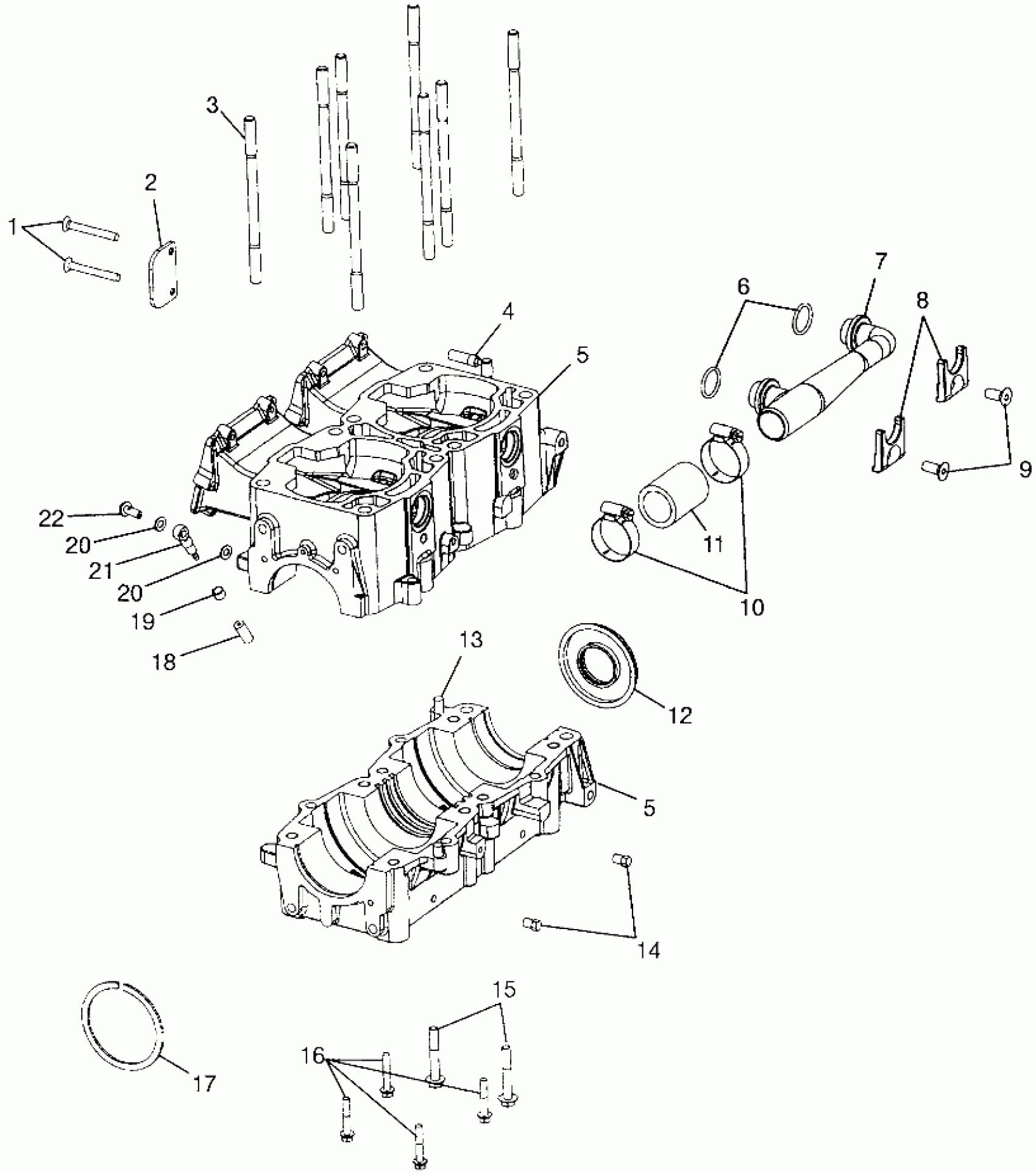

Polaris 700 XC - 0971766 CRANKCASE 700 XC 0971766 (4941814181C006) Diagram

SCREW,(10)

7516821

Unavailable

PLATE,STOP,TORQUE

5131319

Unavailable

STUD,CYL.FLANGE,152MM,SPS

5131677

Unavailable

VALVE-CHECK,90,1/8"7MM BORE

7051020

$32.37

CRANKCASE,KIT,TWIN,SNO Substituted by 2201135 (Incl. 3, 5, 13, 15, 16)

2200897

$764.99

CRANKCASE,KIT,TWIN,SNO Substituted by 2201135 (Incl. 3, 5, 13, 15, 16)

2200897

$764.99

O-Ring

5411125

Unavailable

MANIFOLD,WATER INLET

5630610

$49.59

RETAINER,WATER IN.MANIF. Substituted by 5243431

5241568

Unavailable

Screw

7516736

Unavailable

CLAMP-HOSE, 1.750-SS

7080560

$11.19

HOSE [No Longer Available]

8450068-305

Unavailable

SEAL,FLANGED Substituted by 5411394 (PTO)

5411148

$29.99

PIN-DOWEL,M8 X 16 SS

7663001

$11.19

PLUG Substituted by 7052311

7051529

$15.99

SCREW ,(10)

7516919

Unavailable

SCREW(10)

7516732

$1.59

RING,RETAINING,(10)

7710441

Unavailable

FUELLINE,82 CM. Substituted by 8450061-600

8450061-82

Unavailable

CLAMP(10)

7080603

$1.59

WASHER,FLAT,(10)

7555998

$1.49

WASHER,FLAT,(10)

7555998

$1.49

VALVE,CHECK,OIL PUMP

7052160

Unavailable

SCREW(10)

7517319

$19.99
