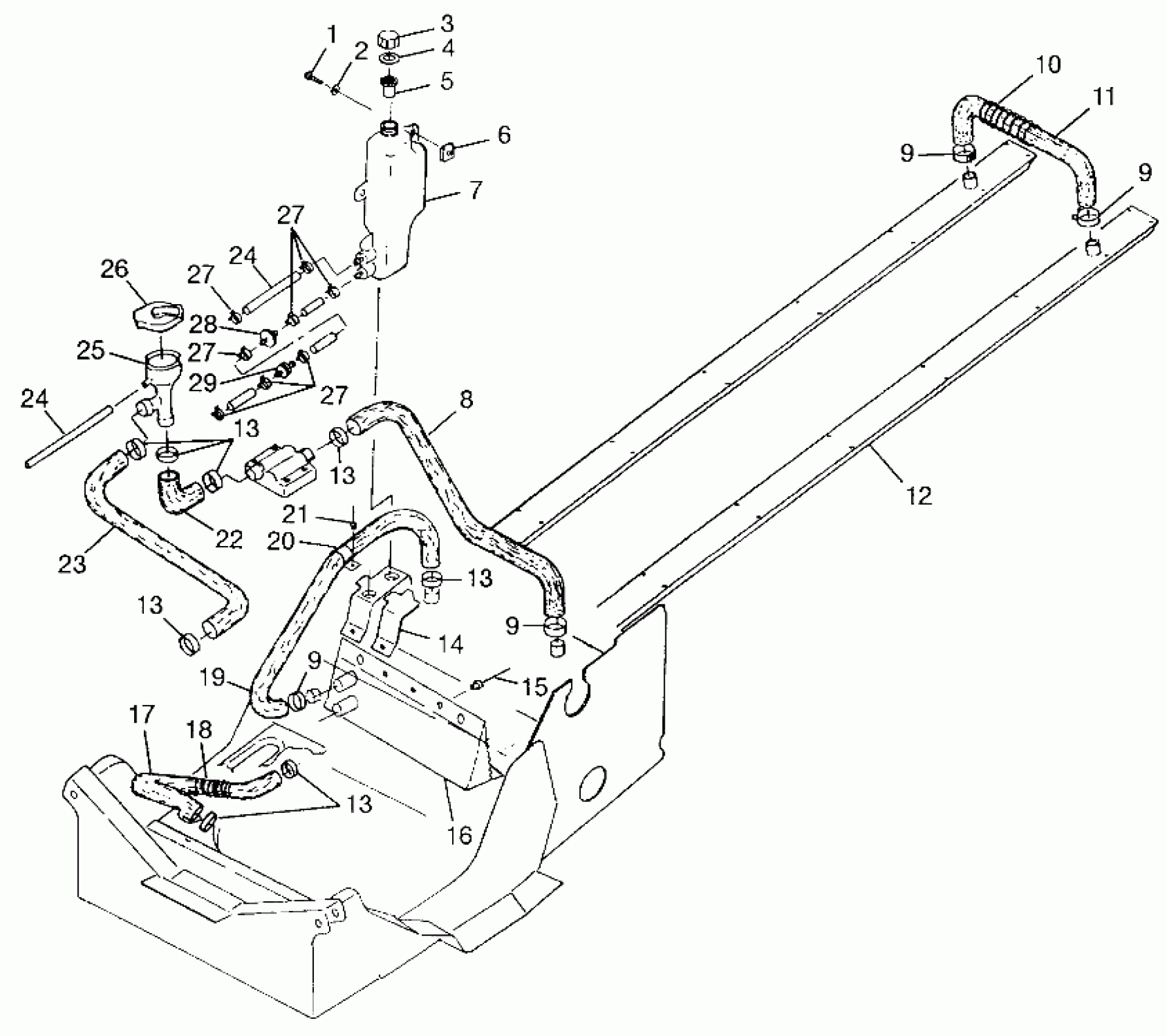

Polaris 700 XC - 0971766 COOLING SYSTEM - 0971766 (4941814181B005) Diagram
#
Description
Price
1
BOLT(10)
7512240
$3.99
2
WASHER,WROUGHT(10)
7558302
$1.59
3
CAP-OVER FLOW BOTTLE,DRILLED
5430743
$5.65
4
GASKET-OVERFLOW CAP
5810279
$2.41
5
PLUG, OVERFLOW,(10)
5431096
$2.02
6
Nut
7670096
$1.59
7
BOTTLE,O'FLOW,W/FITTING
5431733
$36.41
8
HOSE,BRK.COOLER/WEAR STRIP Substituted by 5411380
5411259
Unavailable
9
CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841
7080562
Unavailable
9
CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841
7080562
Unavailable
9
CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841
7080562
Unavailable
9
CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841
7080562
Unavailable
10
SPRING,HOSE RETAINER
7042041
Unavailable
11
HOSE,R.WEARSTRIP COOLER Substituted by 5411383
5411240
Unavailable
12
WEARSTRIP,COOLER
2511297
Unavailable
13
CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844
7080564
$10.32
13
CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844
7080564
$10.32
13
CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844
7080564
$10.32
13
CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844
7080564
$10.32
13
CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844
7080564
$10.32
14
BRKT,SURGE TANK,COINED
5241331
$118.99
15
RIVET,INTERLOCK,B(50)
7661638
$1.49
16
EXCHANGER,CLOSE-OFF
2511304
$399.99
17
SPRING,HOSE RETAINER
7042041
Unavailable
17
HOSE,CLOSEOFF,OUT/ENG.IN Substituted by 5411418
5411286
Unavailable
18
TUBING,CONVOL,1"X2.5"
5521242
Unavailable
19
HOSE,CLOSE-OFF/WEAR STRIP COOL
5411260
Unavailable
20
CLAMP, 1"HOSE(10)
7080585
$3.99
21
POP RIVET(50)
7621402
$1.49
22
HOSE,REMOTEFILL/BRK.COOL.
5411263
Unavailable
23
HOSE,ENG.OUT/REMOTE FILL IN
5411262
Unavailable
24
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
24
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
25
FILLER,REMOTE COOLANT Substituted by 5433364
5431931
Unavailable
26
CAP,PRESS.(19-21 LB.)
2511256
Unavailable
27
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
27
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
27
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
27
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
28
FILTER,COOLANT,LGE.
2530024
Unavailable
29
VALVE, CHECK
7052038
$10.51
