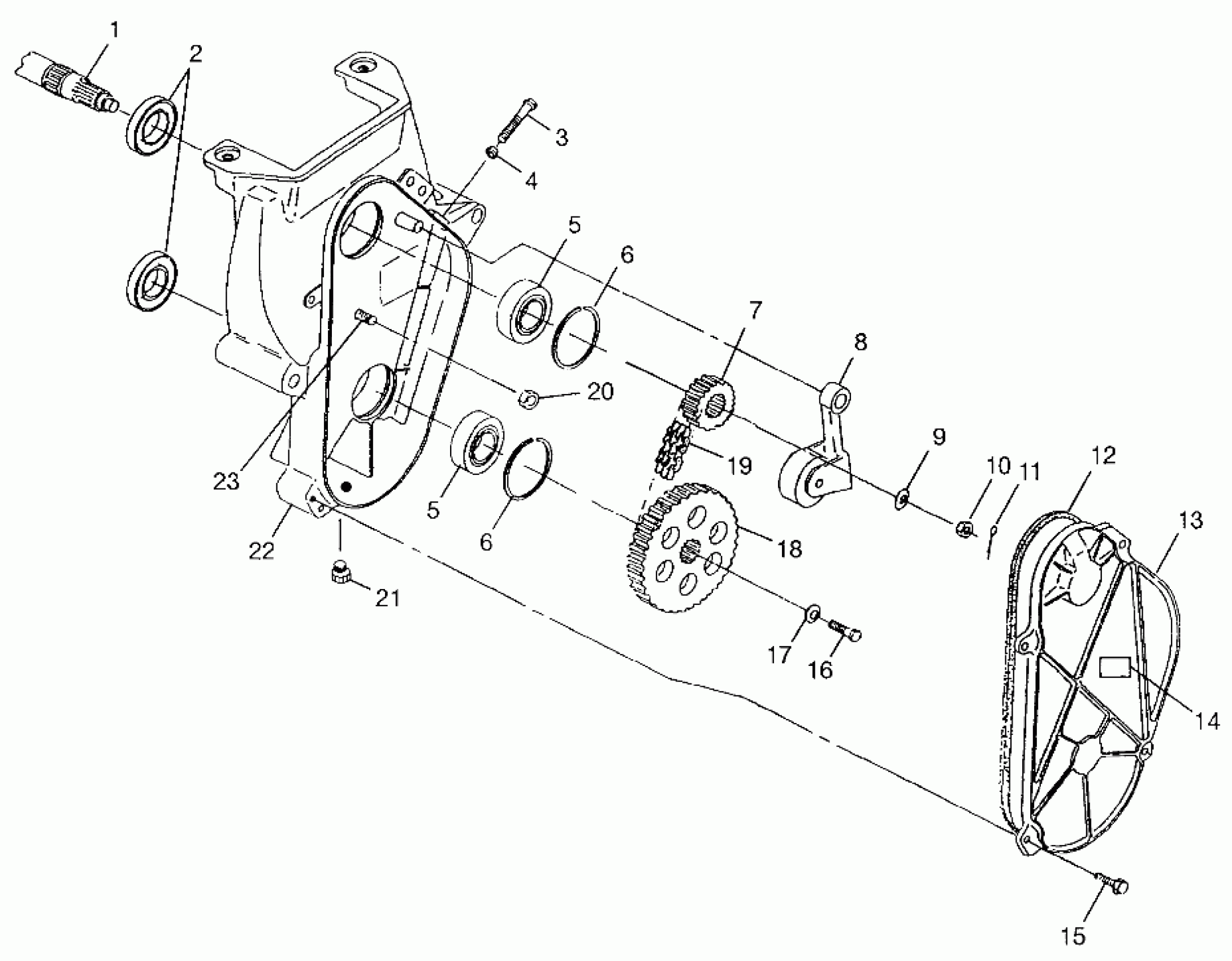

Polaris 700 XC - 0971766 CHAINCASE - 0971766 (4941814181B007) Diagram
#
Description
Price
1
Asm., Jackshaft (See Pg. B8, Ref. 16)
-------
Unavailable
2
SEAL-OIL
3610030
$20.22
3
BOLT(10)
7515440
$3.99
4
NUT,HEX(10)
7542414
$4.79
5
BEARING
3514308
Unavailable
5
BEARING
3514308
Unavailable
6
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
6
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
7
SPKT,24T,3/4W,15T SPL,HYVO Substituted by 2900008
3221091
Unavailable
8
PIN,CHAIN TIGHTENER
7662210
Unavailable
8
BEARING
3553002
$11.99
8
BLOCK,TIGHTENER [No Longer Available]
5630122
Unavailable
8
WHEEL,C/C IDLER
5630123
Unavailable
8
WASHER THRUST(10)
7558702
$1.59
8
TIGHTENER,CHAINCASE (Includes the following)
1332213
$159.99
9
WASHER, SLOTTED(10)
7571620
$7.19
10
NUT
7542811
Unavailable
11
COTTER PIN(10)
7661401
$1.49
12
GASKET,CHAINCASE,LONG
5411207
$20.22
13
COVER,CHAINCASE
5630691
$115.99
14
DECAL,CAUT.SPKT/CHAIN
7076764
Unavailable
15
SCREW(10)
7512242
$2.39
16
SCREW(10)
7515350
$3.97
17
WASHER(10)
7571618
$6.39
18
SPKT,40T,3/4W,15T SPL,HYVO Substituted by 2900013
3222094
Unavailable
19
CHAIN,70 Substituted by 3221115 (13W)
3224069
Unavailable
20
NUT-HEX-3/8-16 A ZTB NYL
7542451
$1.49
21
PLUG(10)
7052115
$5.65
22
CHAINCASE,VENTED
5131455
Unavailable
23
BOLT(10)
7515477
$34.99
