CARBURETOR 700 XC 0971766 (4941814181C010)

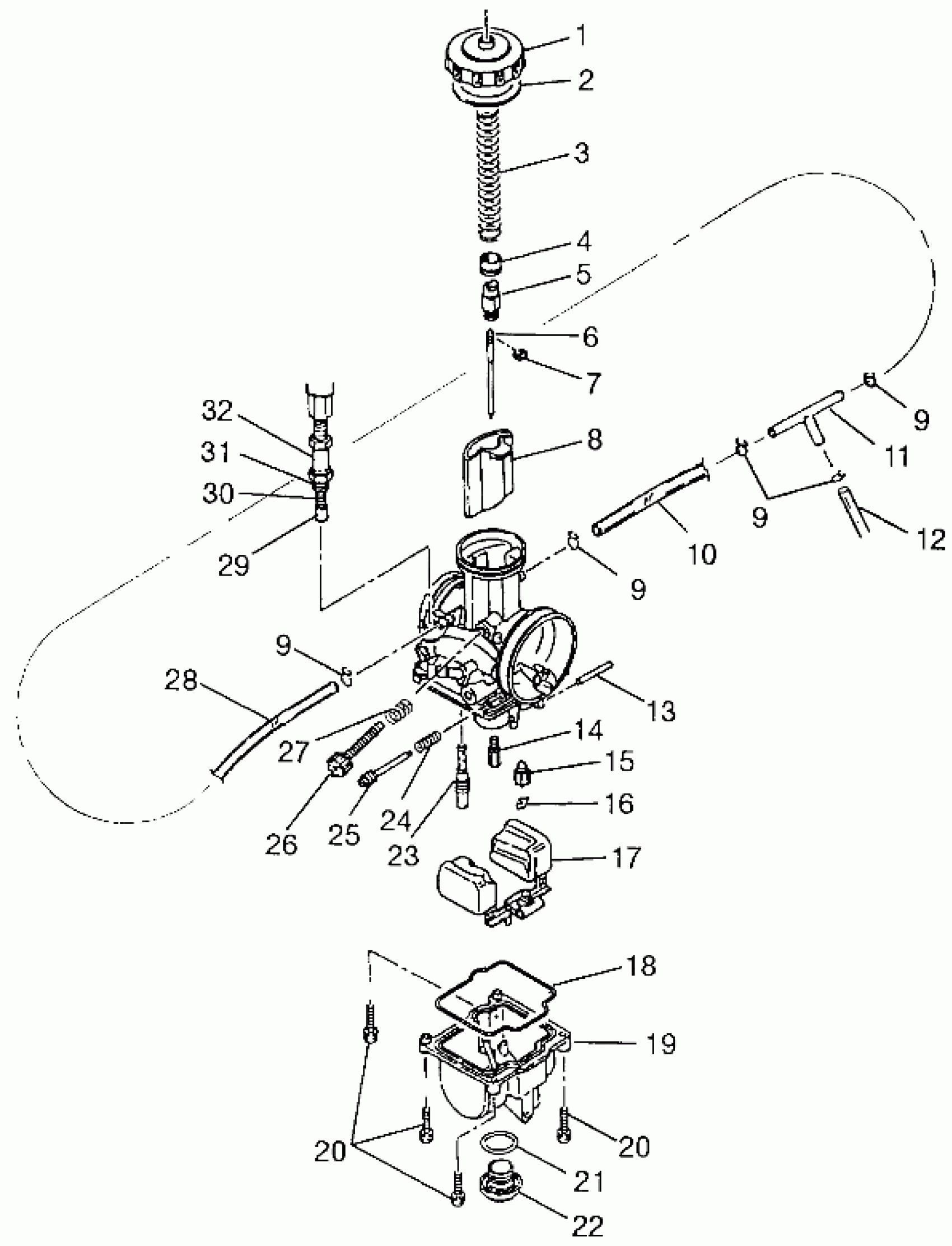

Polaris 700 XC - 0971766 CARBURETOR 700 XC 0971766 (4941814181C010) Diagram
#
Description
Price
-
CARBURETOR ASM. Substituted by 1253199 (Incl. 1-32)
1253145
Unavailable
1
TOP ASM, CARB.
3050224
$26.98
2
GASKET
3050225
$2.15
3
SPRING,THROTTLE
3050228
Unavailable
4
COLLAR
3050238
Unavailable
5
HOLDER, CABLE
3050223
$27.94
6
JET NEEDLE (R-1370G) (1370G)
3050220
Unavailable
7
CLIP,JET NEEDLE,(10)
3050222
Unavailable
8
VALVE,THROTTLE,KHN. (#65)
3050234-K02
Unavailable
9
CLIP
3050233
Unavailable
9
CLIP
3050233
Unavailable
9
CLIP
3050233
Unavailable
9
CLIP
3050233
Unavailable
10
PIPE,BOWL VENT
3050242
Unavailable
11
T-JOINT
3050243
$12.39
12
VENT,BOWL,(SHORT) (Short)
3050248
Unavailable
13
PIN,FLOAT
3050232
$8.89
14
MAIN JET,KHN. (#185)
3050235-185
Unavailable
15
VALVE,FLOAT
3050218
$40.46
16
CLIP,FLOAT VALVE
3050229
$8.79
17
FLOAT,KHN.
3050213
Unavailable
18
GASKET,FLOAT BOWL
3050215
$20.22
19
BOWL,FLOAT,CARB.
3050214
Unavailable
20
SCREW,FLOAT BOWL,(10)
3050230
Unavailable
20
SCREW,FLOAT BOWL,(10)
3050230
Unavailable
21
O-RING,PLUG SCREW
3050217
$4.84
22
PLUG,SCREW
3050216
Unavailable
23
PILOT JET,KHN. (#40)
3050219-40
$12.94
24
SPRING
3050227
Unavailable
25
SCREW,AIR ADJUST
3050226
Unavailable
26
ADJUSTER,IDLE Substituted by 3050257
3050236
$32.37
27
SPRING
3050237
Unavailable
28
PIPE,BOWL VENT
3050231
Unavailable
29
VALVE,STARTER
3050212
Unavailable
30
SPRING
3050240
Unavailable
31
O-RING
3050241
Unavailable
32
CAP,STARTER
3050239
Unavailable
