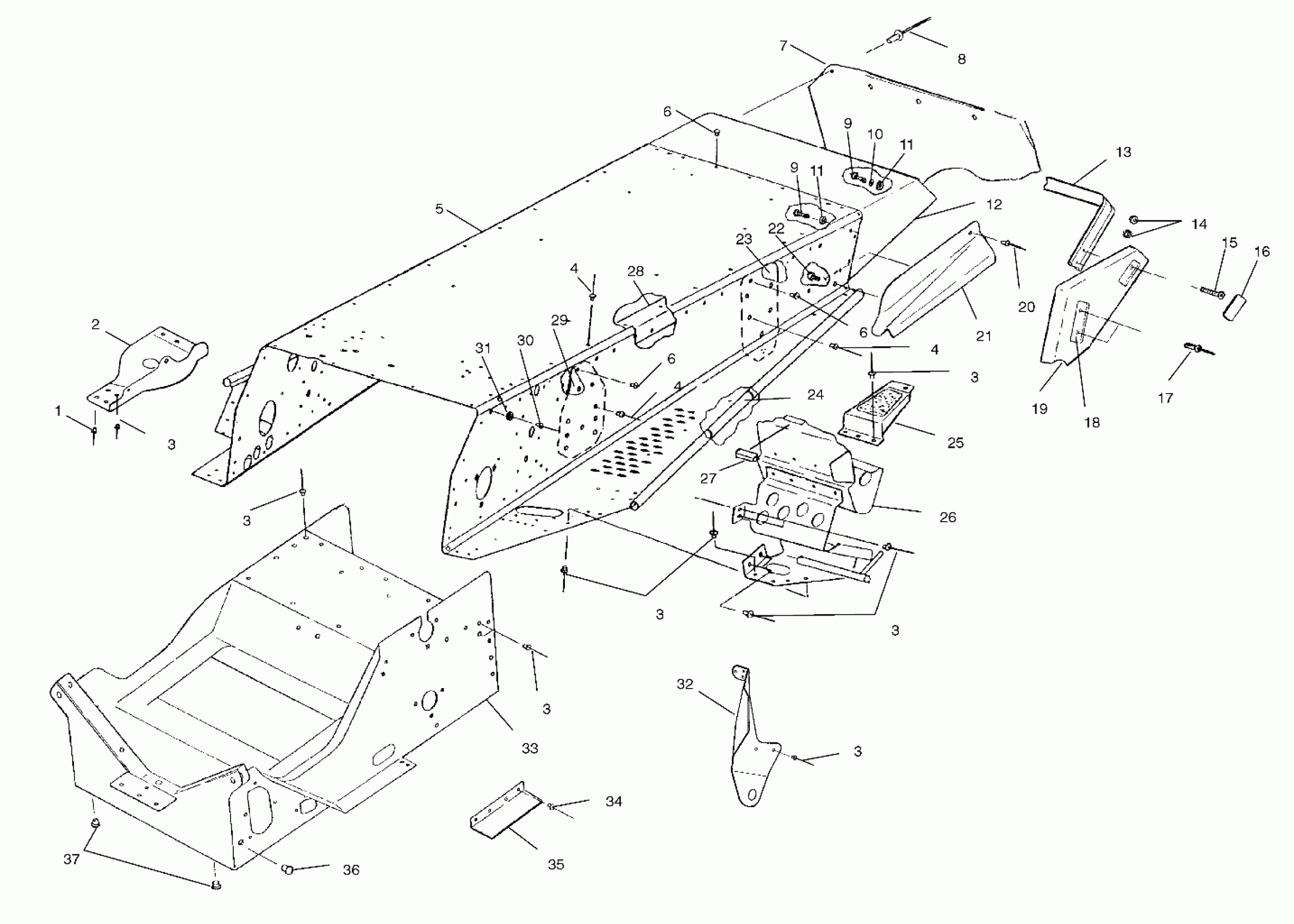

Polaris 700 RMK - 0970966 TUNNEL - 0970566 (4938573857a005) Diagram
#
1
RIVET(50) Substituted by 7661130
7661643
Unavailable
2
GUARD,C/C.SUMP,TUNNEL Substituted by 5243419
5241915
$20.48
3
RIVET,INTERLOCK,B(50)
7661638
$1.49
3
RIVET,INTERLOCK,B(50)
7661638
$1.49
3
RIVET,INTERLOCK,B(50)
7661638
$1.49
3
RIVET,INTERLOCK,B(50)
7661638
$1.49
3
RIVET,INTERLOCK,B(50)
7661638
$1.49
3
RIVET,INTERLOCK,B(50)
7661638
$1.49
3
RIVET,INTERLOCK,B(50)
7661638
$1.49
4
RIVET,SEMI-TUBE,(50)
7661840
Unavailable
4
RIVET,SEMI-TUBE,(50)
7661840
Unavailable
4
RIVET,SEMI-TUBE,(50)
7661840
Unavailable
5
TUNNEL,X-10,136 Substituted by 1012553-067 (SKS,RMK) (Incl. 12,23,28,29)
1012553
Unavailable
5
TUNNEL ASM,X-10,136 Substituted by 1012553 (Euro) (Incl.12,23,28,29)
1012585
Unavailable
6
RIVET,SEMI-TUBE,(50)
7661841
$1.49
6
RIVET,SEMI-TUBE,(50)
7661841
$1.49
6
RIVET,SEMI-TUBE,(50)
7661841
$1.49
7
FLAP, SNOW,SILVER Substituted by 5410394-1106
5410394
$121.02
8
POP RIVET(50)
7621418
$1.49
9
BOLT(10)
7512240
$3.99
9
BOLT(10)
7512240
$3.99
10
LOCK WASHER(10)
7552801
$1.59
11
WASHER(10)
7558301
$1.49
11
WASHER(10)
7558301
$1.49
12
PANEL,TUNNEL BACK
1012580-067
Unavailable
13
BUMPER,REAR,BLACK Substituted by 2670168
2670169
Unavailable
14
NUT-LOCK(10) (Euro)
7542122
$1.49
15
SCREW(10)
7512084
$1.49
16
REFLECTOR RED (Euro)
2670070
$9.91
16
REFLECTOR ASM,RED (SKS,RMK)
2670133
$5.75
17
RIVET,(50)
7621515
$3.99
18
SUPPORT,HAND-HOLD
5131546
$18.23
19
COVER,LH,BUMPER,W/HANDLE
5432562
$28.15
19
COVER,RH,BUMPER,W/HANDLE
5432563
$28.15
20
RIVET,(50)
7621342
$1.49
21
SKIRT,SNOW,LH
5432049-070
$33.91
21
SKIRT,SNOW,RH
5432050-070
$30.16
21
DESC NOT_AVAILABLE (Euro)
5432689-070
Unavailable
21
DESC NOT_AVAILABLE (Euro)
5432690-070
Unavailable
22
SCREW(10)
7512091
$3.99
23
BRKT,LH,R.SUSP.
1012578-067
$82.39
23
BRKT,RH,R.SUSP.
1012579-067
$62.39
24
TUBE,TUNNEL SPT.
5224787
$20.48
25
PAD,LH FOOT SAFETY (Euro)
5830007
$7.89
25
PAD,RH FOOT SAFETY (Euro)
5830008
$4.92
25
FOOTREST,LH R,BLK. (Euro)
5220893-067
Unavailable
25
FOOTREST,RH R,BLK. (Euro)
5220894-067
$32.15
26
FOOTREST ASM, LH
1011861
Unavailable
26
FOOTREST ASM,RH,BLK.
1011892
Unavailable
27
EXTRUSION,CLUTCHGUARD
5521238
$6.46
28
DESC NOT_AVAILABLE
5241982
Unavailable
29
PAD,LH,FR.SUSP.MTG. Substituted by 5244287-067
5241303-067
Unavailable
29
PAD,RH,FR.SUSP.MTG. Substituted by 5244287-067
5241304-067
Unavailable
30
RIVET-POP 1/8(.063-.125)-ST-Z
7621222
$1.49
31
SNAP-MALE(10)
7080227
Unavailable
32
BRACE,LH,F'REST/TRLG ARM,BLK
5242477-067
Unavailable
32
BRACE,RH,F'REST/TRLG ARM,BLK
5242478-067
Unavailable
33
BULKHEAD,BLK
1012562-067
$396.83
34
RIVET(50)
7621452
$1.49
35
GUARD,ADAPTER GUIDE
5222857
$12.94
36
PLUG, HOLE(10)
7080416
$5.65
37
PLUG-HOLE
7080398
$4.84
