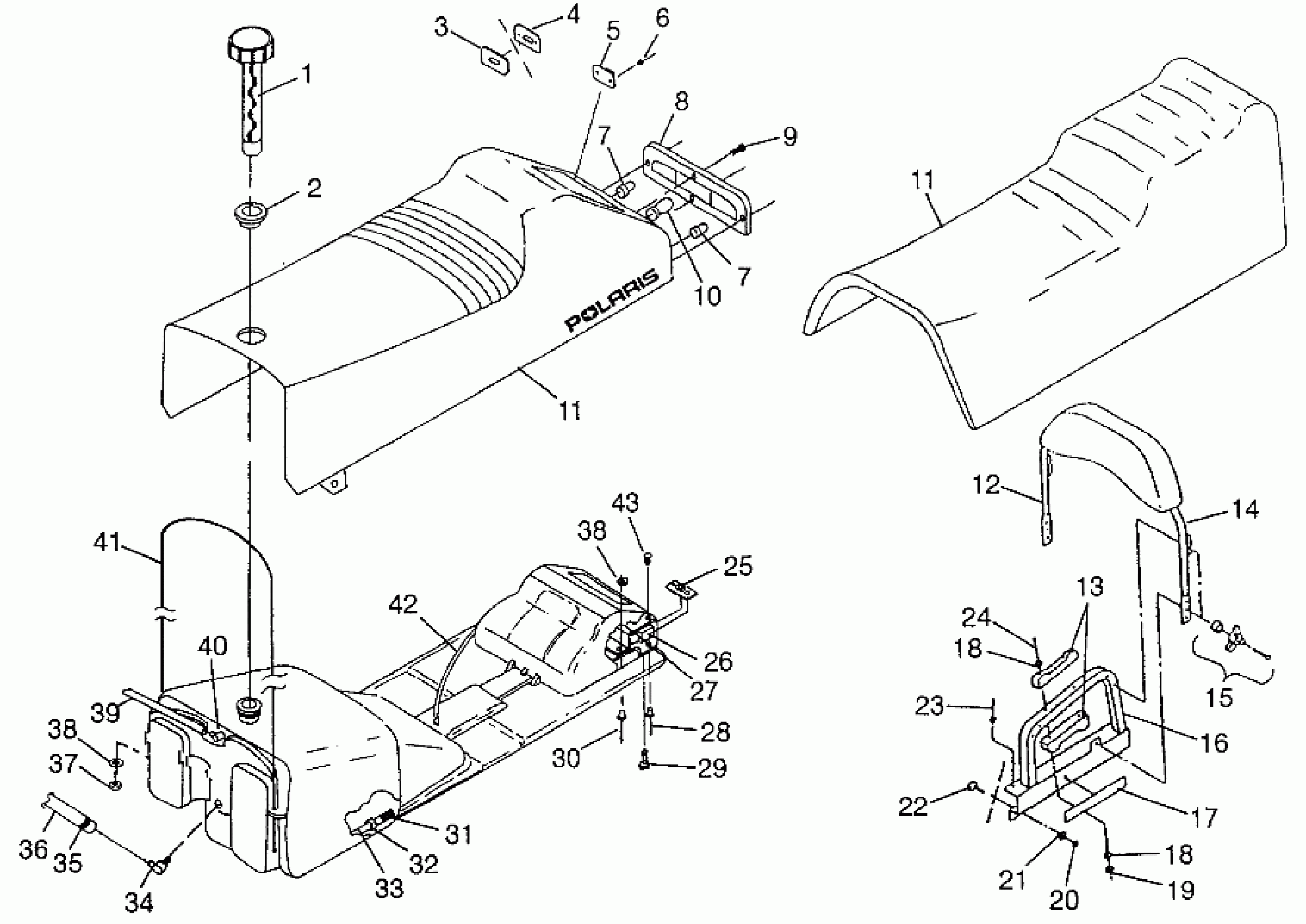

Polaris 700 RMK - 0970966 SEAT and GAS TANK - 0970566 (4938573857a006) Diagram

#

Description
Price

1

GASKET, GAS CAP

5810513

$8.89

1

CAP,GAS,W/GAUGE

2511248

$44.51

2

GROMMET,FUELTANK

5410842

Unavailable

3

GROMMET,RELATCH,1",BOTT.(10)

7080550

Unavailable

4

GROMMET,RELATCH,1",TOP(10)

7080549

Unavailable

5

TWISTLOCK,RELATCH,1",W/HOLE(10)

7080548

Unavailable

6

RIVET(50)

7621337

$1.49

7

BULB,TAILLIGHT(10)

4030024

$4.84

7

BULB,TAILLIGHT(10)

4030024

$4.84

8

LENS,TAILLIGHT

5430423

Unavailable

9

SCREW(10)

7511840

Unavailable

10

Bulb, Brakelight

4030045

Unavailable

11

COVER,SEAT,2-UP(SPORT TRG.) Substituted by 2682163 (Euro)

2681788

Unavailable

11

COVER,SEAT,LONG (SKS)

2681970

Unavailable

11

CUSHION,SEAT,2-UP Substituted by 2681714 (See Footnote) (Euro) (Incl. 2,8-11,25-28,30-34,37,38, 40-43)

2682180

Unavailable

11

COVER,SEAT,LONG,RMK (RMK)

2681971

Unavailable

11

SEAT ASM,LONG (See Footnote) (SKS) (Incl. 2,8-11,25-28,30-34,37,38, 40-43)

2681965

Unavailable

11

SEAT ASM,LONG,RMK (See Footnote) (RMK) (Incl. 2,8-11,25-28,30-34,37,38 40-43)

2681966

Unavailable

11

COVER,SEAT,2-UP(SPORT TRG.) Substituted by 2682163 (Euro)

2681788

Unavailable

11

COVER,SEAT,LONG (SKS)

2681970

Unavailable

11

CUSHION,SEAT,2-UP Substituted by 2681714 (See Footnote) (Euro) (Incl. 2,8-11,25-28,30-34,37,38, 40-43)

2682180

Unavailable

11

COVER,SEAT,LONG,RMK (RMK)

2681971

Unavailable

11

SEAT ASM,LONG (See Footnote) (SKS) (Incl. 2,8-11,25-28,30-34,37,38, 40-43)

2681965

Unavailable

11

SEAT ASM,LONG,RMK (See Footnote) (RMK) (Incl. 2,8-11,25-28,30-34,37,38 40-43)

2681966

Unavailable

12

COVER,BACKREST ASM. Substituted by 2681265 (EURO)

2681790

Unavailable

13

GRIP, HAND Substituted by 5433383 (Euro)

5431015

$19.68

14

BACKREST ASM. Substituted by 2681356 (Euro) (Incl. 12)

2681789

Unavailable

15

KNOB ASM,BACKREST (EURO)

2670130

Unavailable

16

BAR,GRAB,LH,BLK. (EURO)

1011729-067

Unavailable

16

BAR,GRAB,RH,BLK. (EURO)

1011730-067

Unavailable

17

REFLECTOR RED (Euro)

2670070

$9.91

18

WASHER(10) (Euro)

7555783

$3.99

18

WASHER(10) (Euro)

7555783

$3.99

19

NUT, LOCK(10) Substituted by 7541925 (Euro)

7541929

Unavailable

20

NUT, NYLOK(10) (EURO)

7542327

$4.79

21

WASHER(10) Substituted by 7558402 (EURO)

7555770

Unavailable

22

BOLT(10) Substituted by 7512325 (Euro)

7515363

Unavailable

23

RIVET,INTERLOCK,B(50) (Euro)

7661638

$1.49

24

SCREW(10) (Euro)

7510504

$6.76

25

NUT,RETAINER-WELD.(10)

7542147

$17.59

26

HOUSING,TAILLIGHT Substituted by 5433341

5431545

Unavailable

27

COVER,T/L PROTECTOR

5431436

$21.43

28

RIVET(50)

7621301

$3.99

29

SCREW(10)

7512242

$2.39

30

RIVET(50)

7621464

$3.99

31

FUELPICKUP,W/STRAINER

7052037

$12.94

32

RING, COMPRESSION(10)

7080402

$1.60

33

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

34

FITTING,OUT,90 DEG,,DOUBLE

7052143

Unavailable

35

HOSE CLAMP, RED

7080003

$1.49

36

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

37

NUT(10)

7541925

$1.49

38

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

38

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

39

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

39

SPRING,PROTECT.VENTHOSE

7041605

Unavailable

40

FITTING,90 DEG,1/8,(10)

7052095

$4.79

41

CABLE,TANK,RETENTION

7080559

Unavailable

42

HARNESS,TAILLIGHT

2460398

Unavailable

43

CLIP,DART,(10)

7670097

Unavailable
