RAIL MOUNTING (SUSPENSION) 700 RMK 0970966, 700 SKS 0970566, and EUROPEAN 7 (4938573857B011)

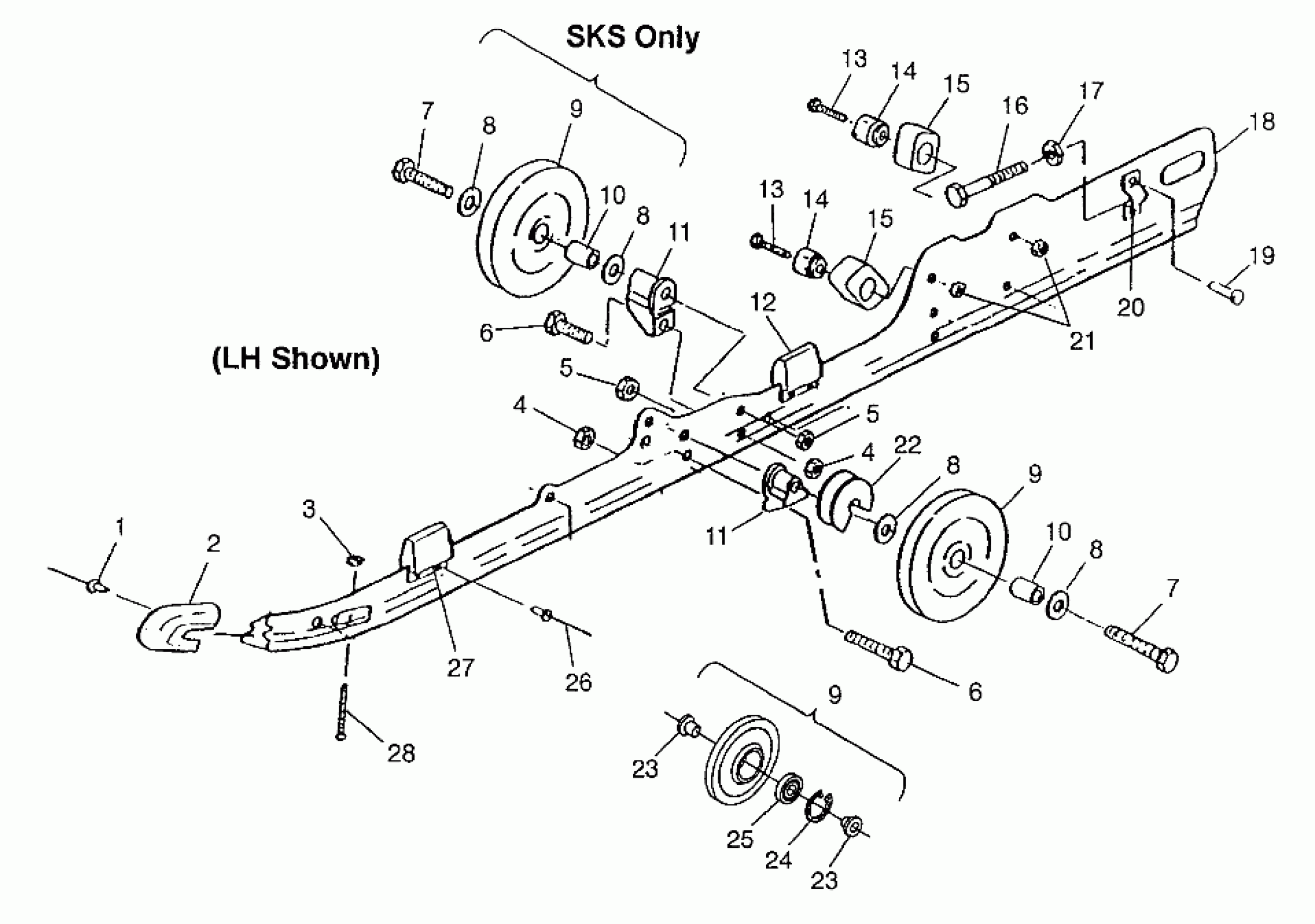

Polaris 700 RMK - 0970966 RAIL MOUNTING (SUSPENSION) 700 RMK 0970966, 700 SKS 0970566, and EUROPEAN 7 (4938573857B011) Diagram
#
Description
Price
1
RIVET(50)
7621435
$1.49
2
COVER, RAIL TIP Substituted by 5433005
5431421
Unavailable
3
NUT-LOCK(10)
7542122
$1.49
4
NUT-LOCK(10)
7542439
$1.49
4
NUT-LOCK(10)
7542439
$1.49
5
NUT, NYLOCK(10)
7542525
$4.79
5
NUT, NYLOCK(10)
7542525
$4.79
6
BOLT(10) (SKS)
7512404
$3.99
6
BOLT(10) (SKS)
7512404
$3.99
7
BOLT(10) (RMK)
7512538
$6.39
7
BOLT(10) (RMK)
7512538
$6.39
8
WASHER, FLAT(10) (RMK)
7555852
$2.39
8
WASHER, FLAT(10) (RMK)
7555852
$2.39
8
WASHER, FLAT(10) (RMK)
7555852
$2.39
8
WASHER, FLAT(10) (RMK)
7555852
$2.39
9
WHEEL, IDLER (Incl. 23-25) (SKS)
1543018
$56.65
9
WHEEL, IDLER (Incl. 23-25) (SKS)
1543018
$56.65
9
WHEEL, IDLER (Incl. 23-25) (SKS)
1543018
$56.65
10
SPACER, WHEEL (SKS)
5333116
$7.99
10
SPACER, WHEEL (SKS)
5333116
$7.99
11
SPACER (SKS)
5630399
$11.99
11
SPACER (SKS)
5630399
$11.99
12
REINF., BUMPER
5222629
$13.75
12
BUMPER, RAIL
5810554
$7.27
13
BOLT(10)
7515537
$10.99
13
BOLT(10)
7515537
$10.99
14
MOUNT,F.BUMPER PIVOT ARM
5131113
$28.32
14
MOUNT,F.BUMPER PIVOT ARM
5131113
$28.32
15
BUMPER,F.PIVOT ARM
5410925
$12.94
15
BUMPER,F.PIVOT ARM
5410925
$12.94
16
BOLT, ADJUSTER(10)
7515455
$29.99
17
NUT(10)
7542440
Unavailable
18
RAIL ASM,LH,X-10,136 (Incl. 2, 12, 20, 27)
1541155
Unavailable
18
RAIL ASM,RH,X-10,136 (Incl. 2, 12, 20, 27)
1541156
$319.99
19
RIVET,(50)
7621501
$2.39
20
BLOCK-IDLER BOLT ADJ.
5130530
$32.37
21
NUT LOCK(10)
7542403
$3.99
22
ROLLER, SPRING
5431366
$10.51
23
INSERT, WHEEL,(10) (2 Per Wheel)
5431531
$9.70
23
INSERT, WHEEL,(10) (2 Per Wheel)
5431531
$9.70
24
RET.RING-TRUARC (1 per Wheel)
7718407
$4.79
25
BEARING (1 per Wheel)
3514303
$11.99
26
RIVET-3/16 (.626-.750) Q-AL-ST
7621476
$1.49
27
BUMPER,SUSPENSION
5811097
Unavailable
28
BOLT(10)
7515175
$3.99
